Component Location

For component locations see Fig 1.

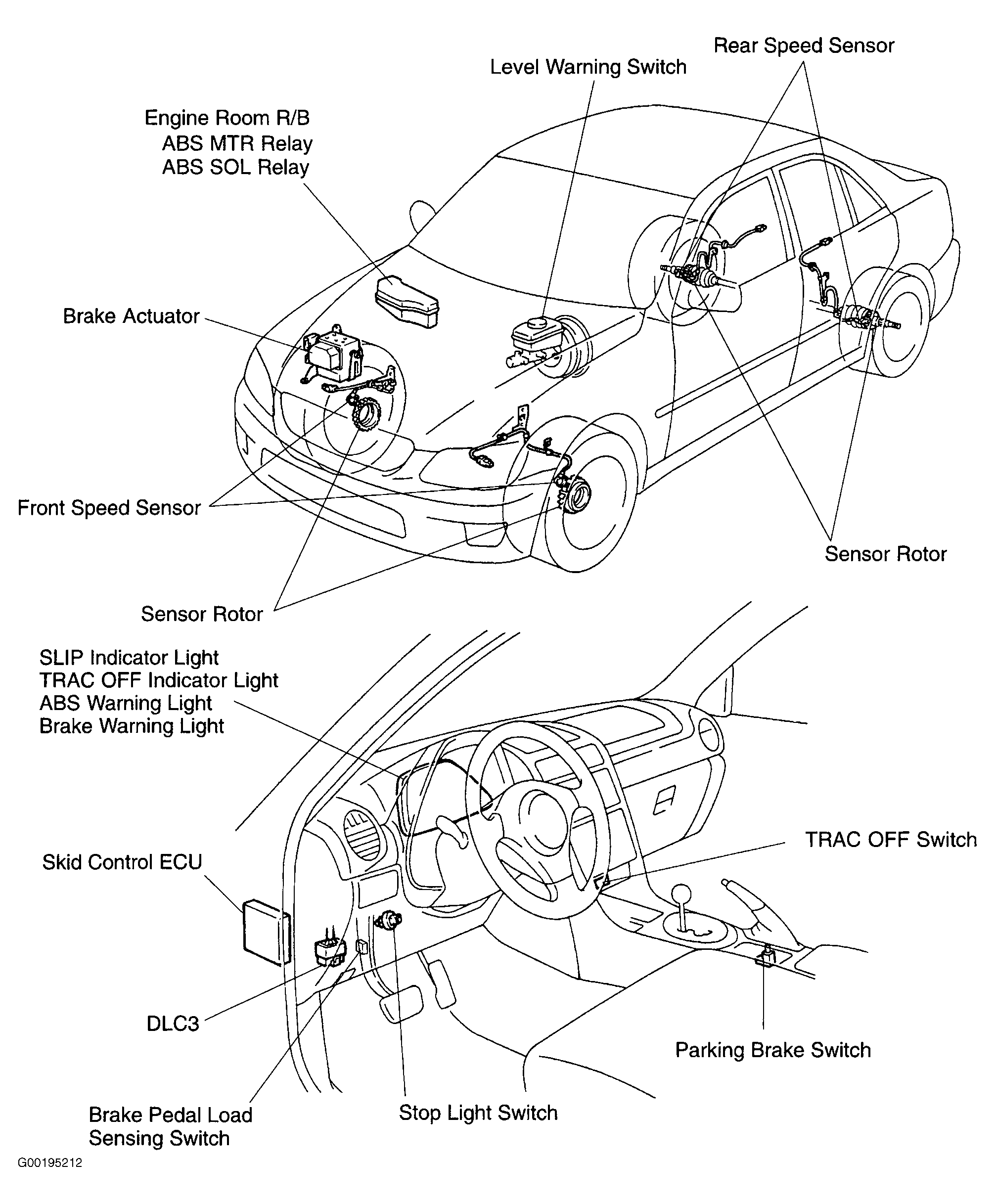

Fig 1: Locating Anti-Lock Brake System Components
G00195212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
