Without Hand-Held Sensor

  1. Turn ignition switch off.

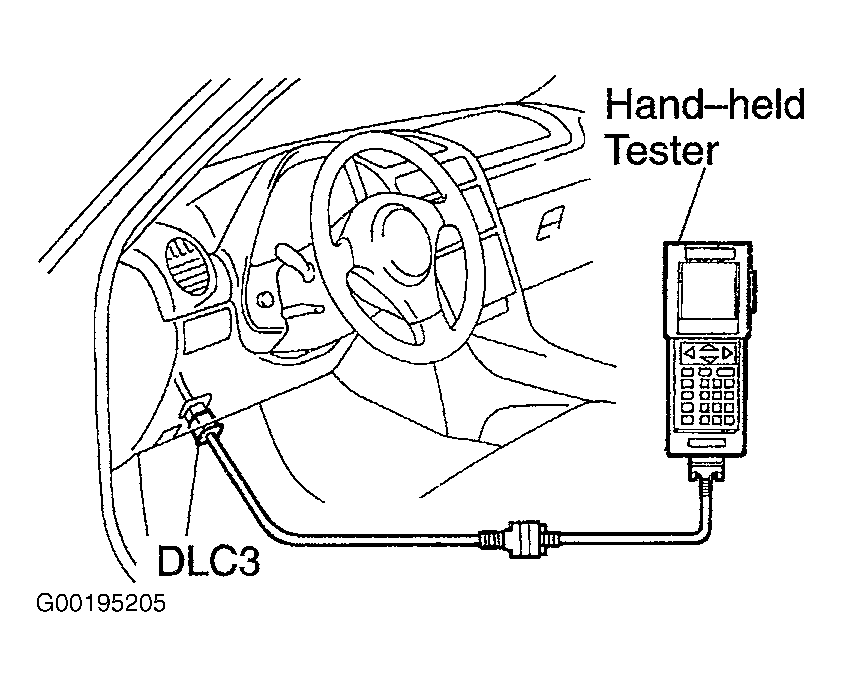

  2. Using special tool (09843-18040), jumper between terminals Tc and CG of (DLC3). See Figure.
  3. Start engine and check that ABS warning light flashes. If ABS warning light does not flash, inspect ABS warning light circuit. See TEST B: ABS WARNING LIGHT CIRCUIT  under SYMPTOM TESTING.
  4. If the light flashes, drive vehicle straight forward and at speed of 28 mph or more for several seconds.
  5. Stop vehicle. Read the number of flashes of ABS warning light. See Figure. If any DTCs are retrieved, perform appropriate test. See DIAGNOSTIC TROUBLE CODE DEFINITIONS .
  6. If every sensor is normal, normal code is output.
  7. If 2 or more malfunctions are indicated at the same time, the lowest numbered code will be displayed.
  8. Turn ignition switch off and remove special tool from (DLC3).
