Diagnosis & Testing: Pre-Check
- Release parking brake pedal.

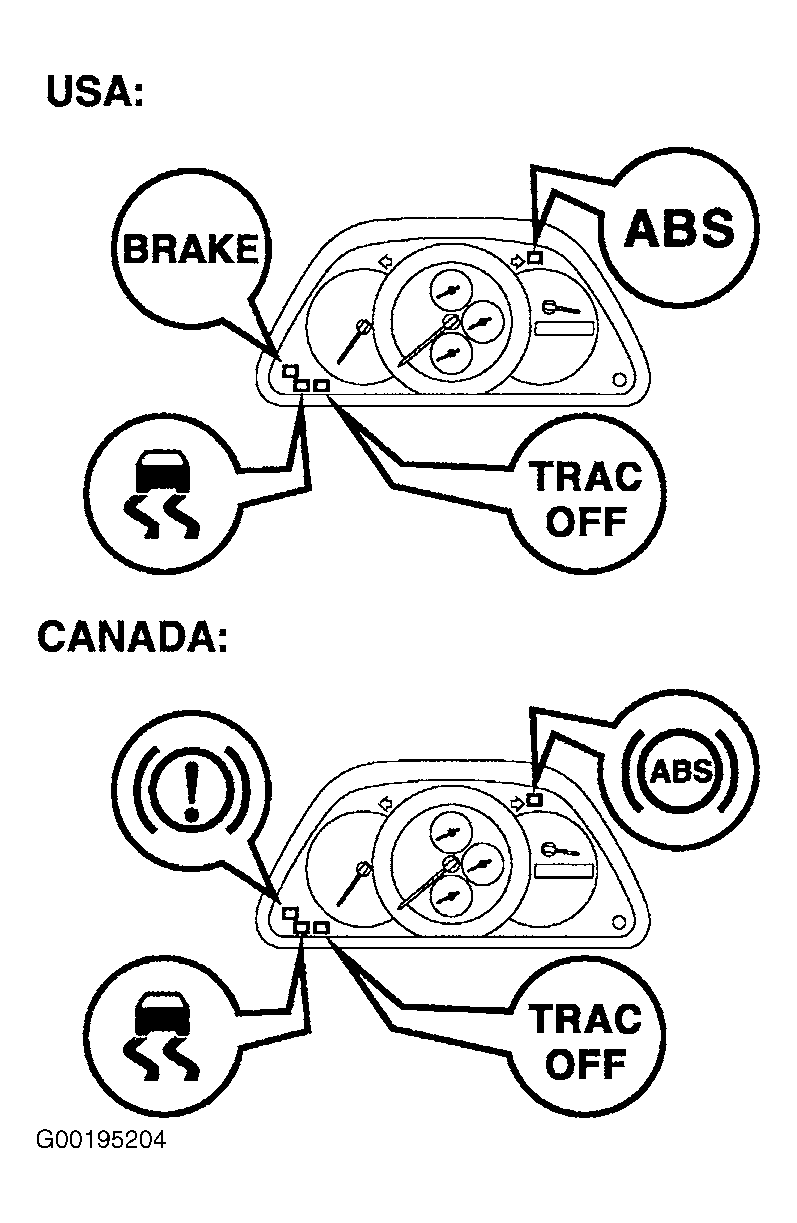

- Turn ignition switch to ON. Check that ABS warning light, BRAKE warning light, TRAC OFF indicator light and SLIP indicator light turn on for 3 seconds. When parking brake is applied or level of brake fluid is low, BRAKE warning light is lit. See Fig 1.
- If check result is not normal, see SYMPTOM TESTING .
