Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2.

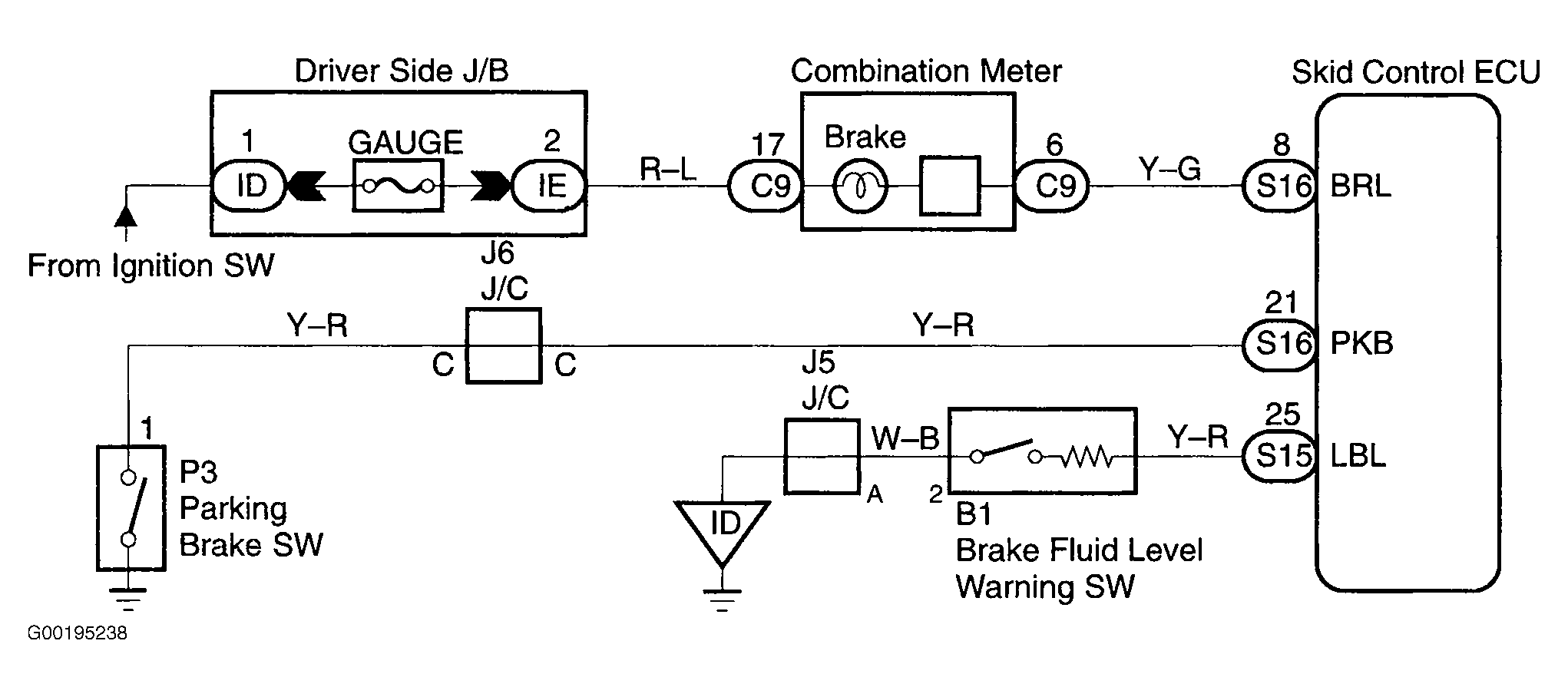

Fig 1: Wiring Diagram Brake Fluid Warning Switch Circuit
G00195238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

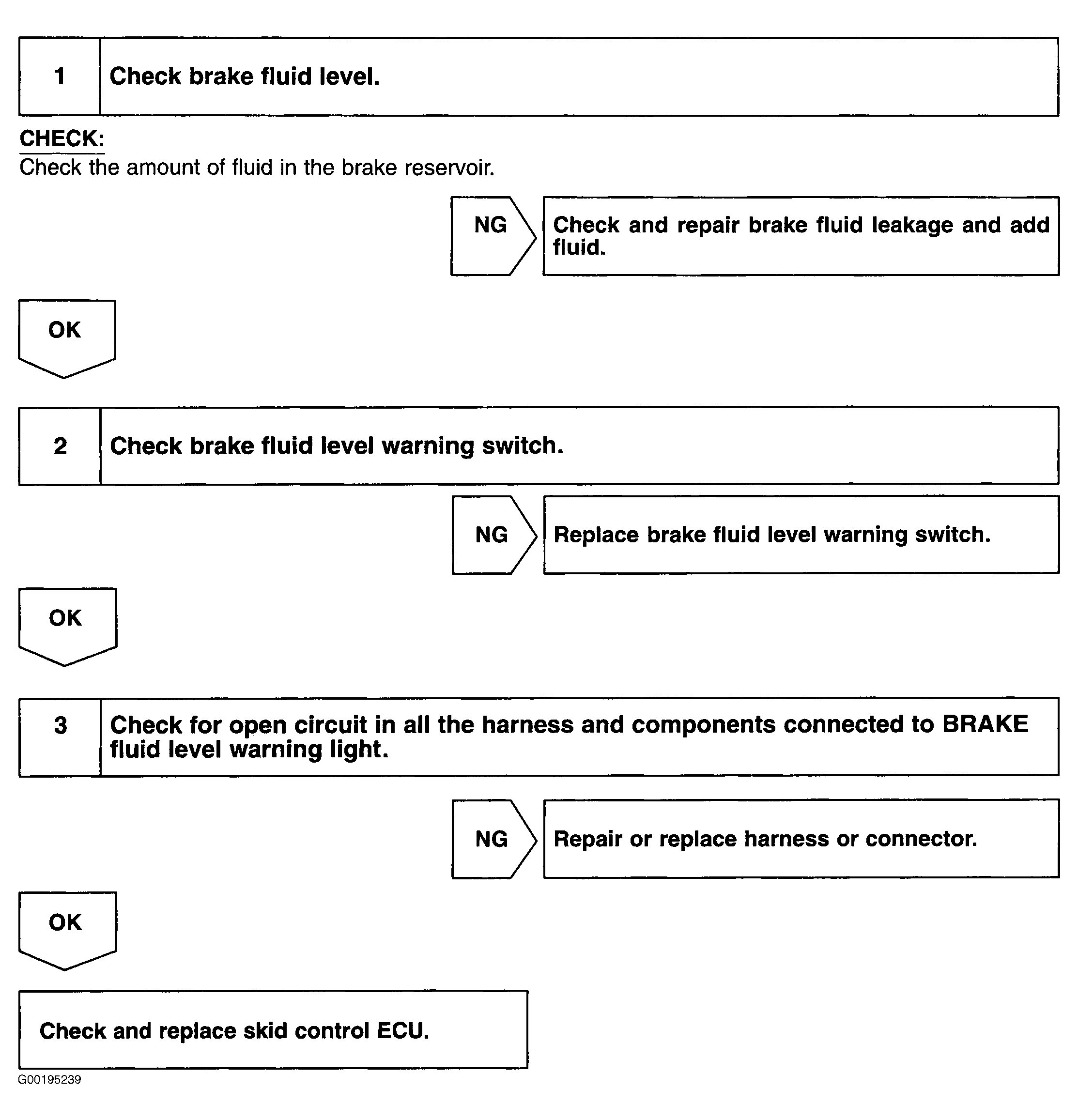

Fig 2: Testing Procedure Brake Fluid Warning Switch Circuit
G00195239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
