Power Steering Vane Pump: Removal

REMOVE NO. 1 ENGINE UNDER COVER
Remove the 16 screws, clip and No. 1 engine under cover.
REMOVE DRIVE BELT
Using SST, loosen the drive belt tension by turning the drive belt tensioner clockwise from the bottom side, and remove the drive belt.

SST 09216-00041

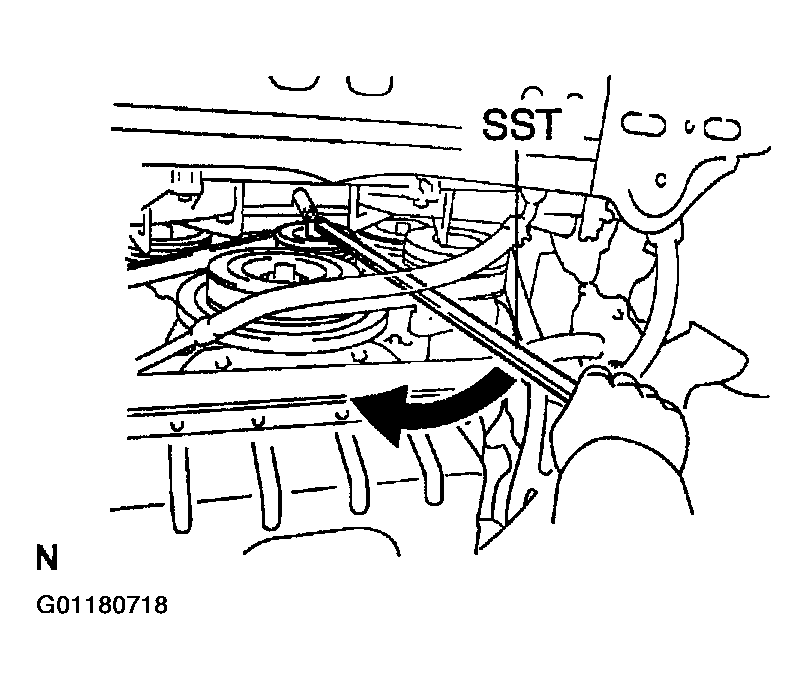

Fig 1: Using SST To Loosen Drive Belt Tension
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT OIL PRESSURE SWITCH CONNECTOR
DISCONNECT RETURN HOSE
Remove the clip and disconnect the return hose.

NOTE: Take care not to spill fluid on the drive belt and oil pressure switch connector.
DISCONNECT PRESSURE FEED TUBE
Remove the union bolt and gasket and disconnect the pressure feed tube.

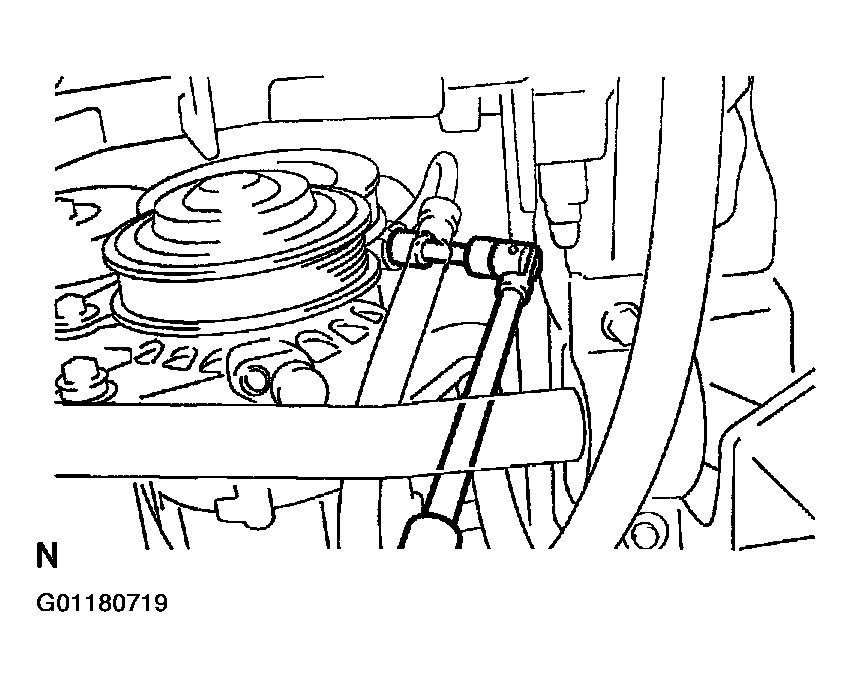

Fig 2: Disconnecting Pressure Feed Tube
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PS VANE PUMP ASSEMBLY
Remove the 2 bolts and PS vane pump assembly.

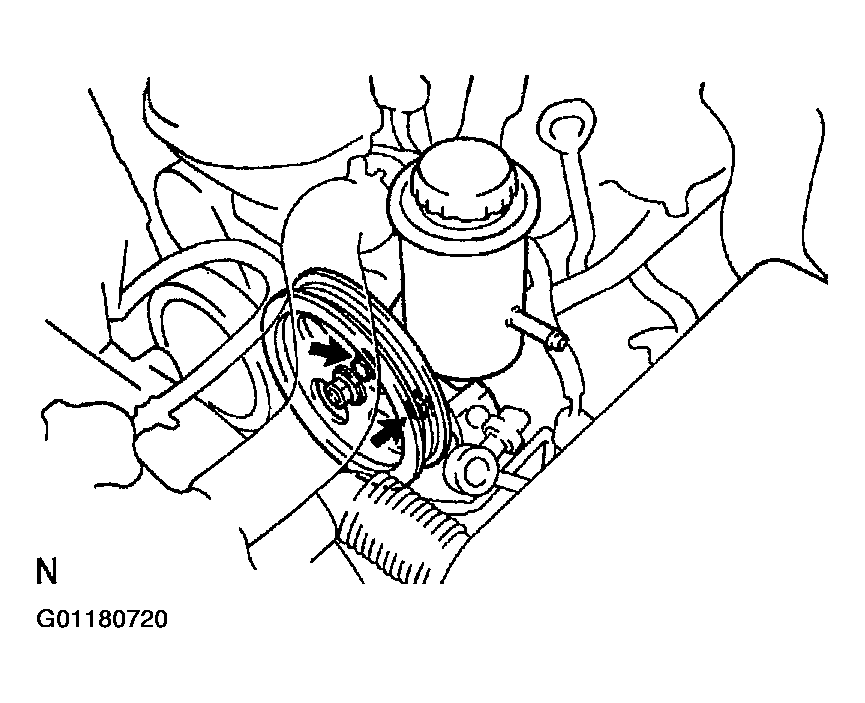

Fig 3: Removing Vane Pump Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
