Body Control Module: Locations

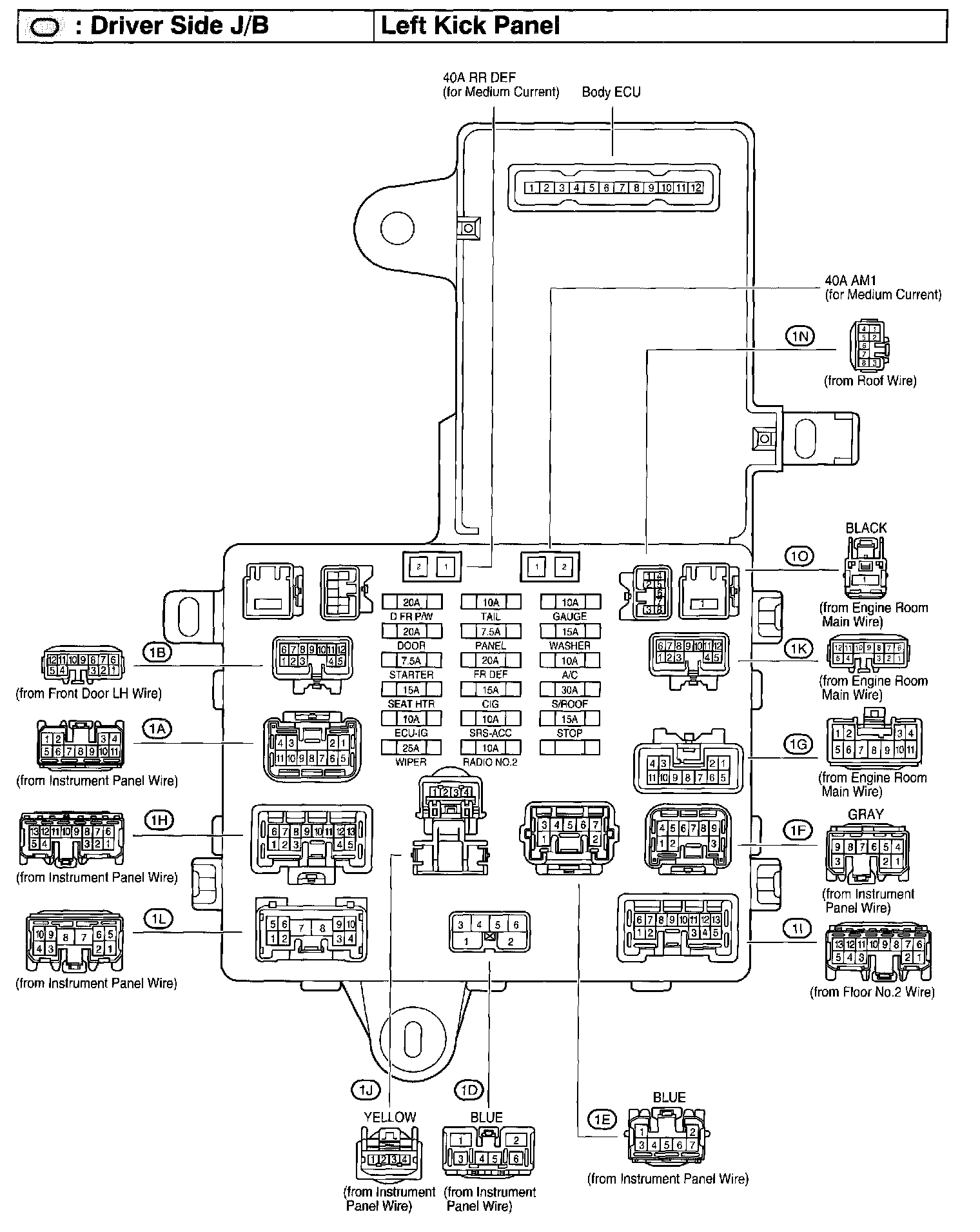

Driver Side J/B:

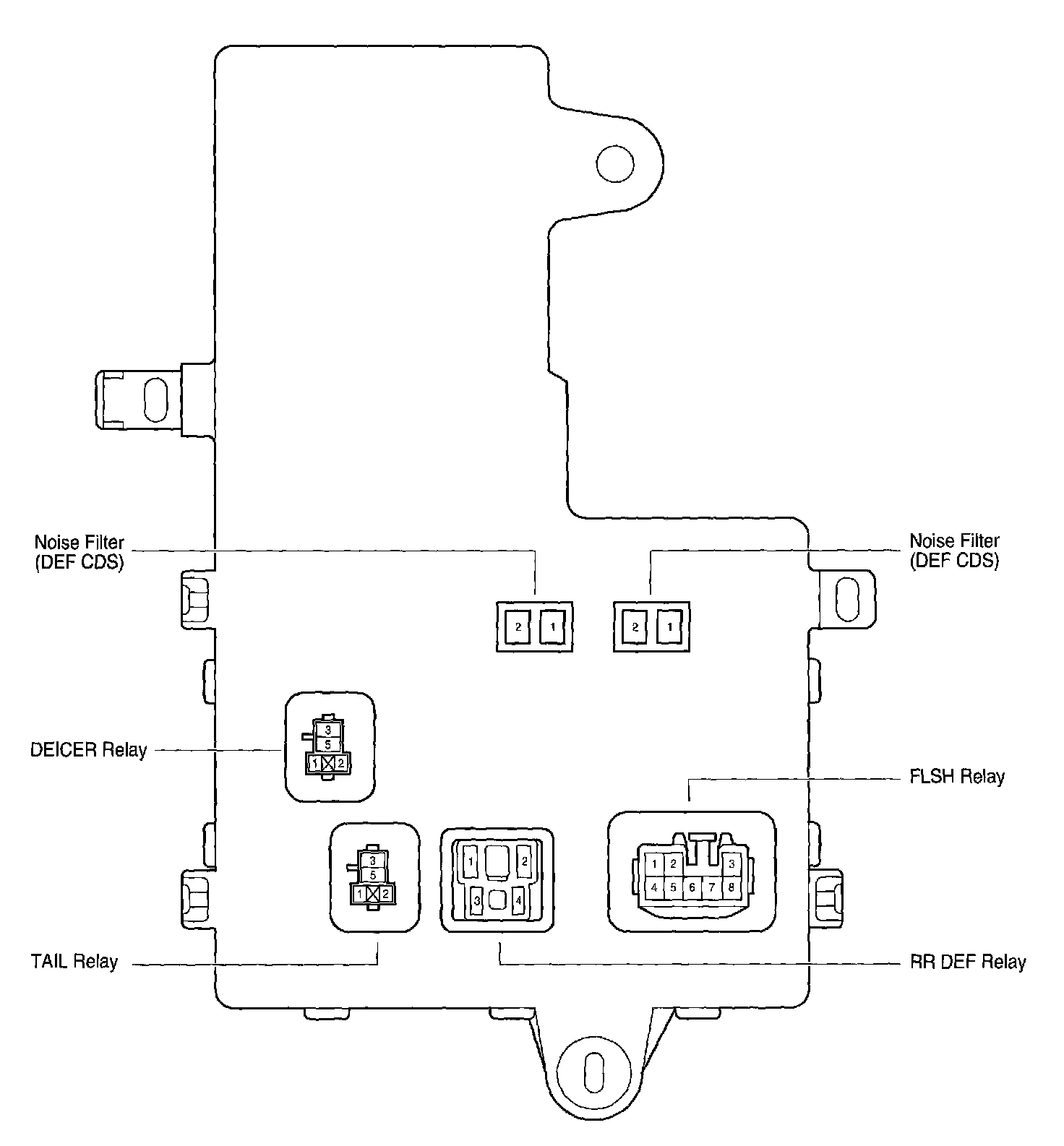

Driver Side J/B Inner Circuit:

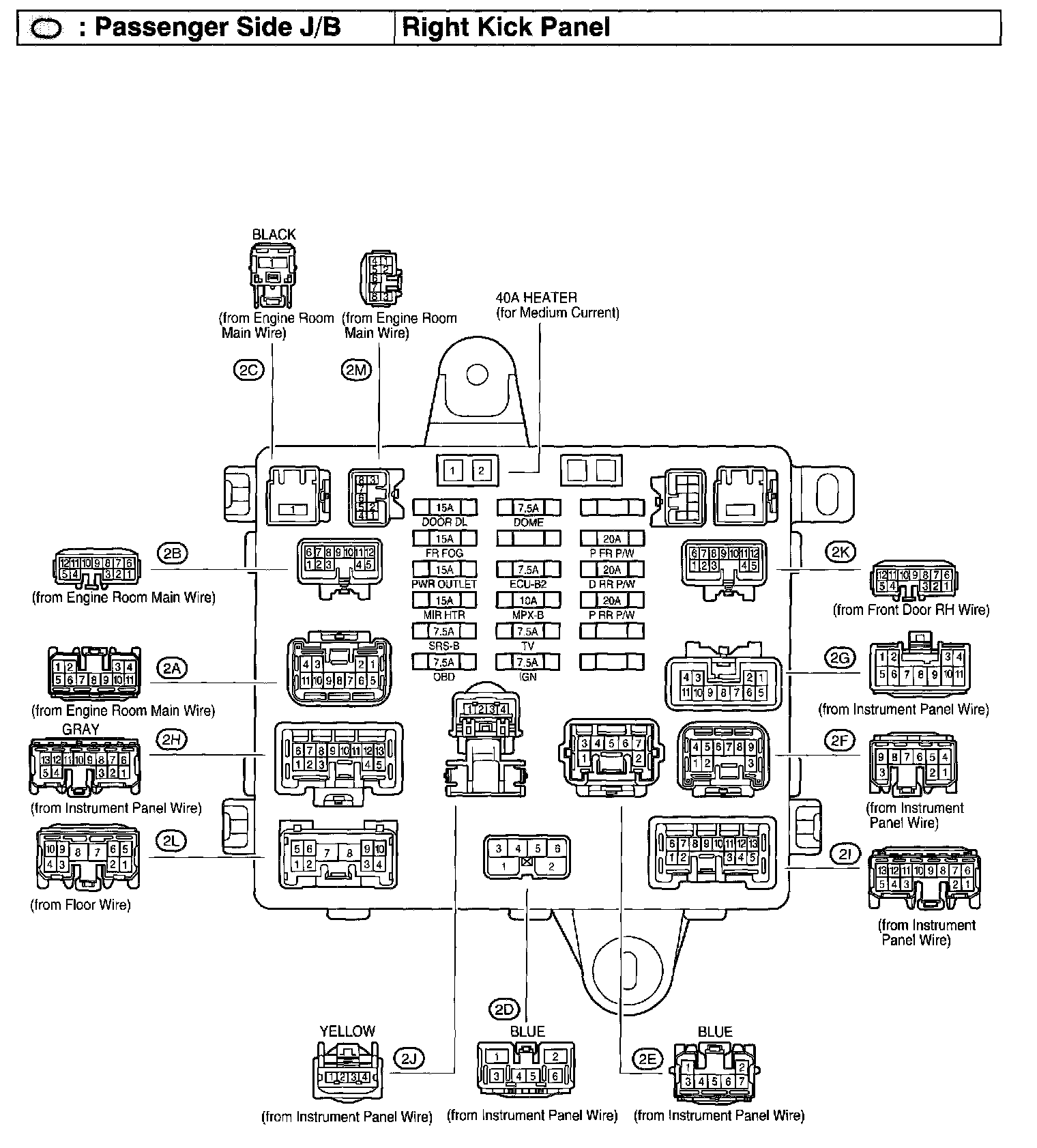

Passenger Side J/B:

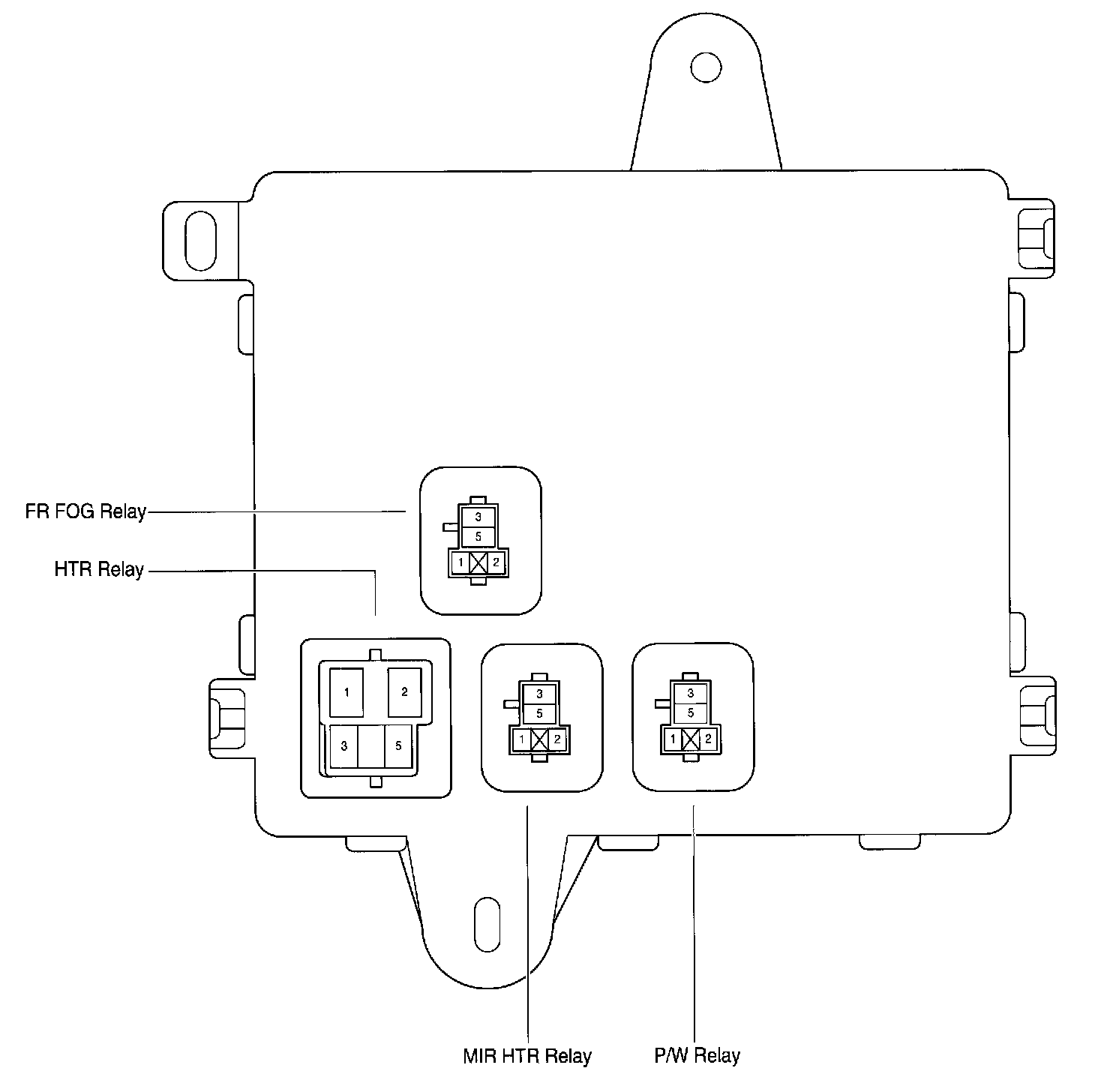

Passenger Side J/B Inner Circuit:

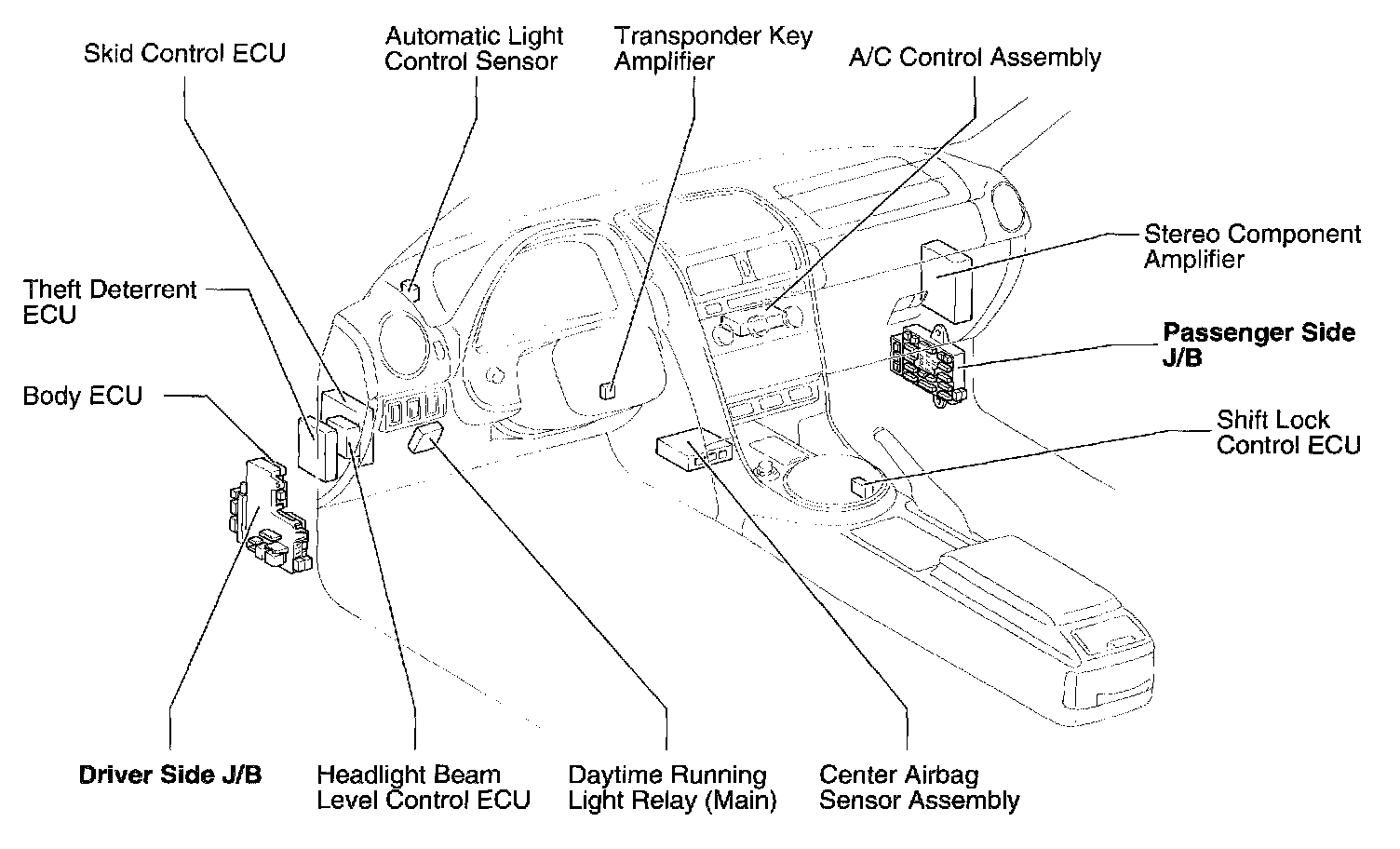

Instrument Panel:
