Control Assembly, HVAC

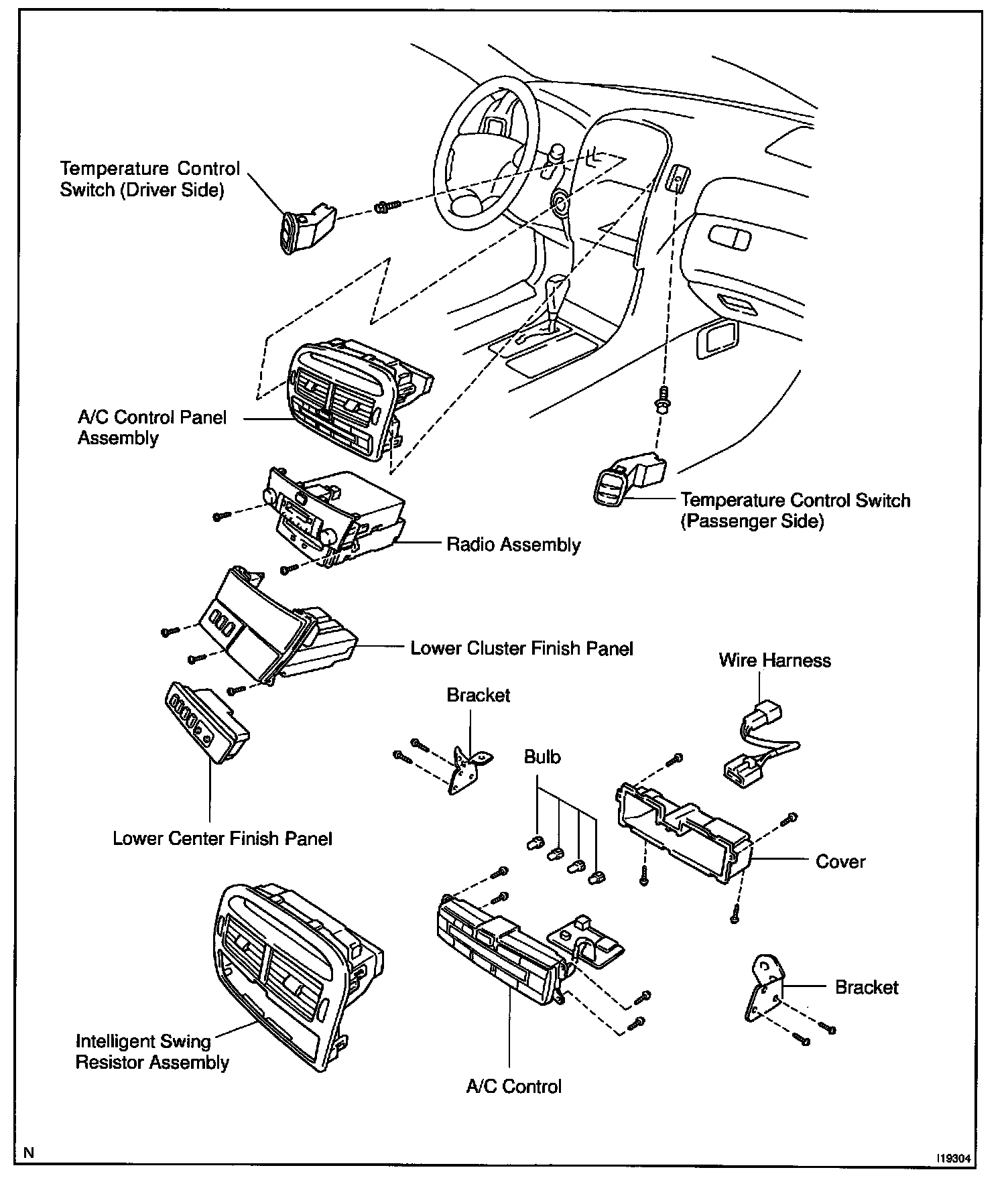

Air Conditioning Control Assembly:

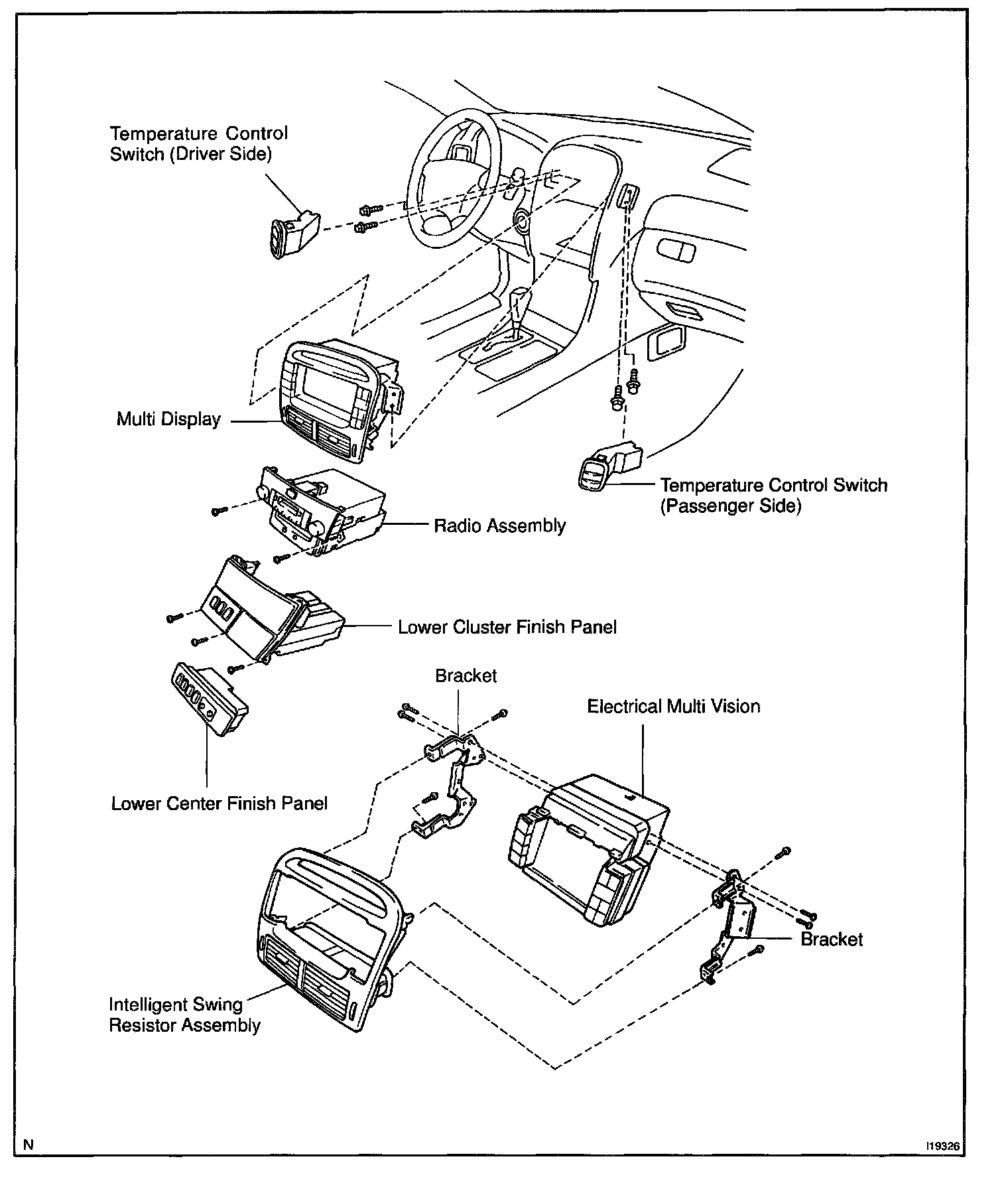

Air Conditioning Control Assembly (Multi Display):

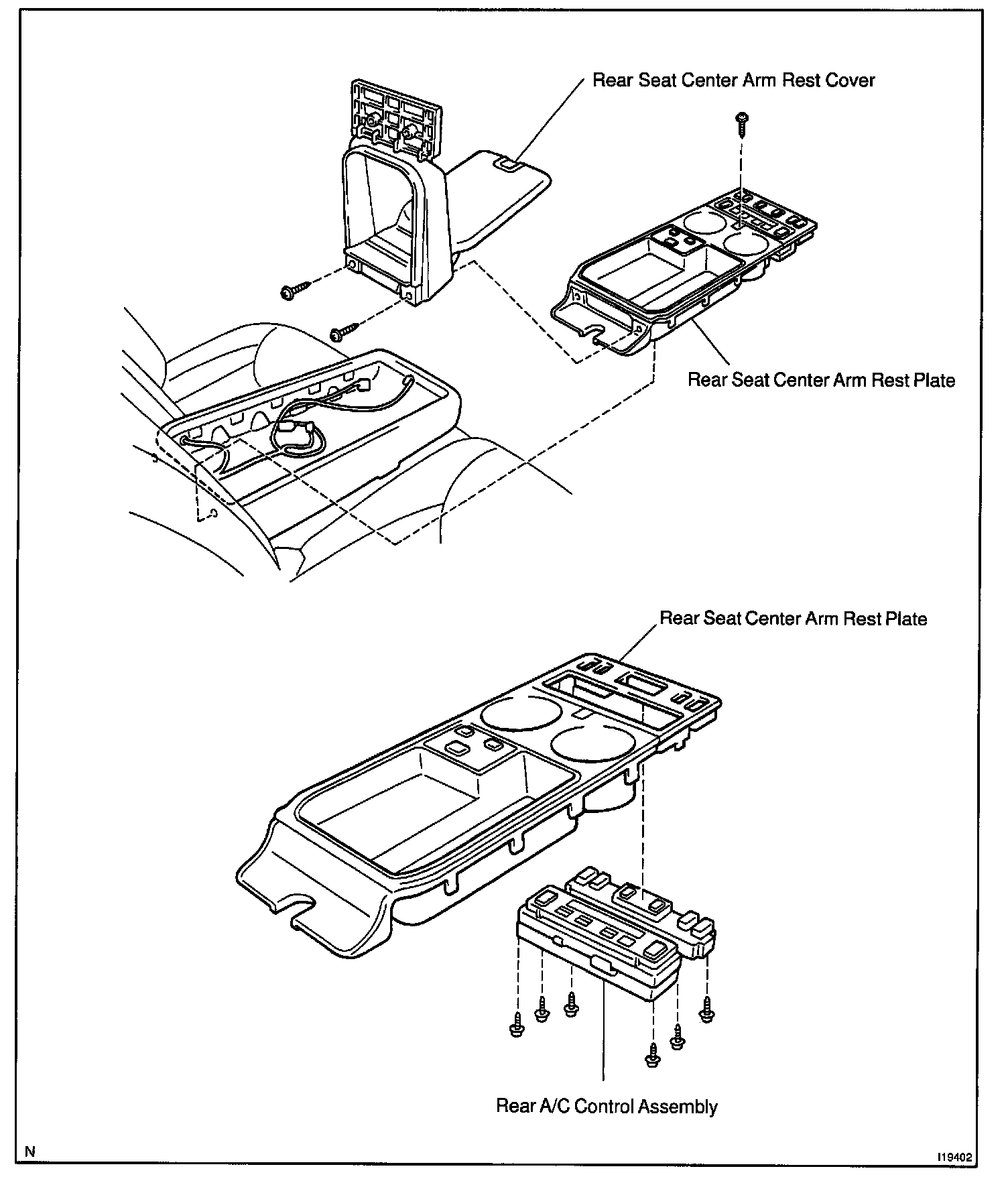

Rear A/C Control Assembly:
