Rear Differential
REAR
DIFFERENTIAL CARRIER
REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

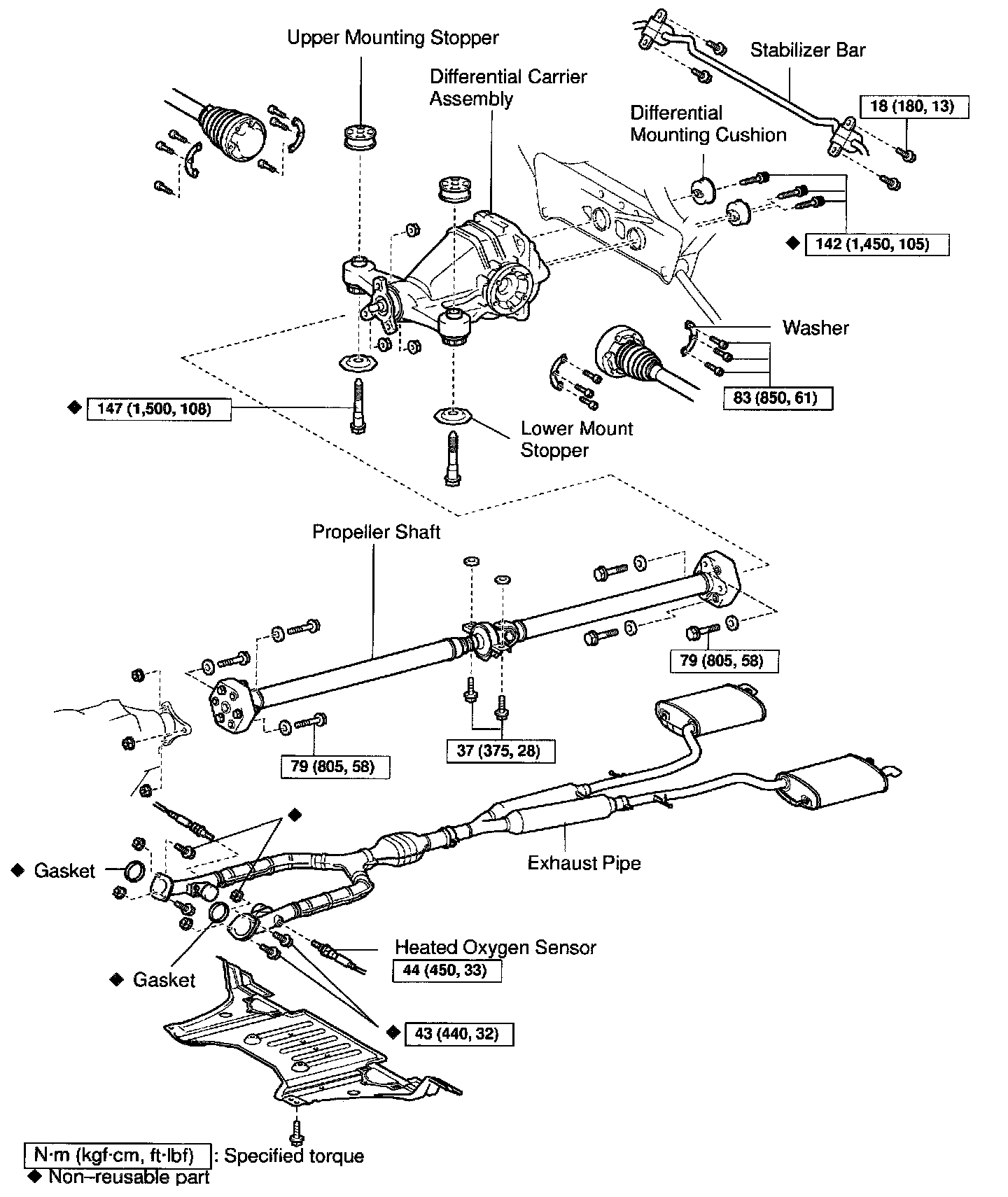

Part 1 of 2

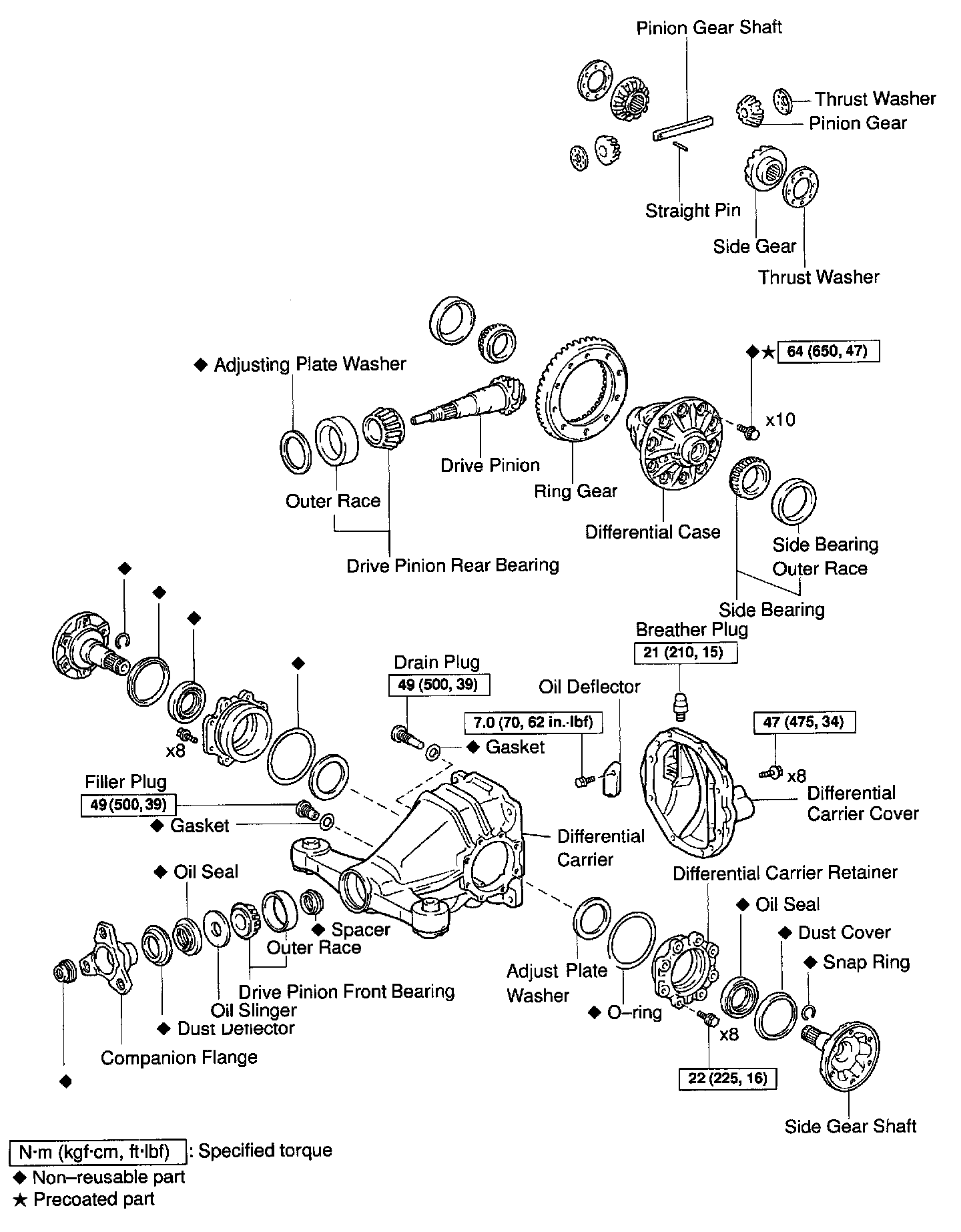

Part 2 of 2
