System Diagram

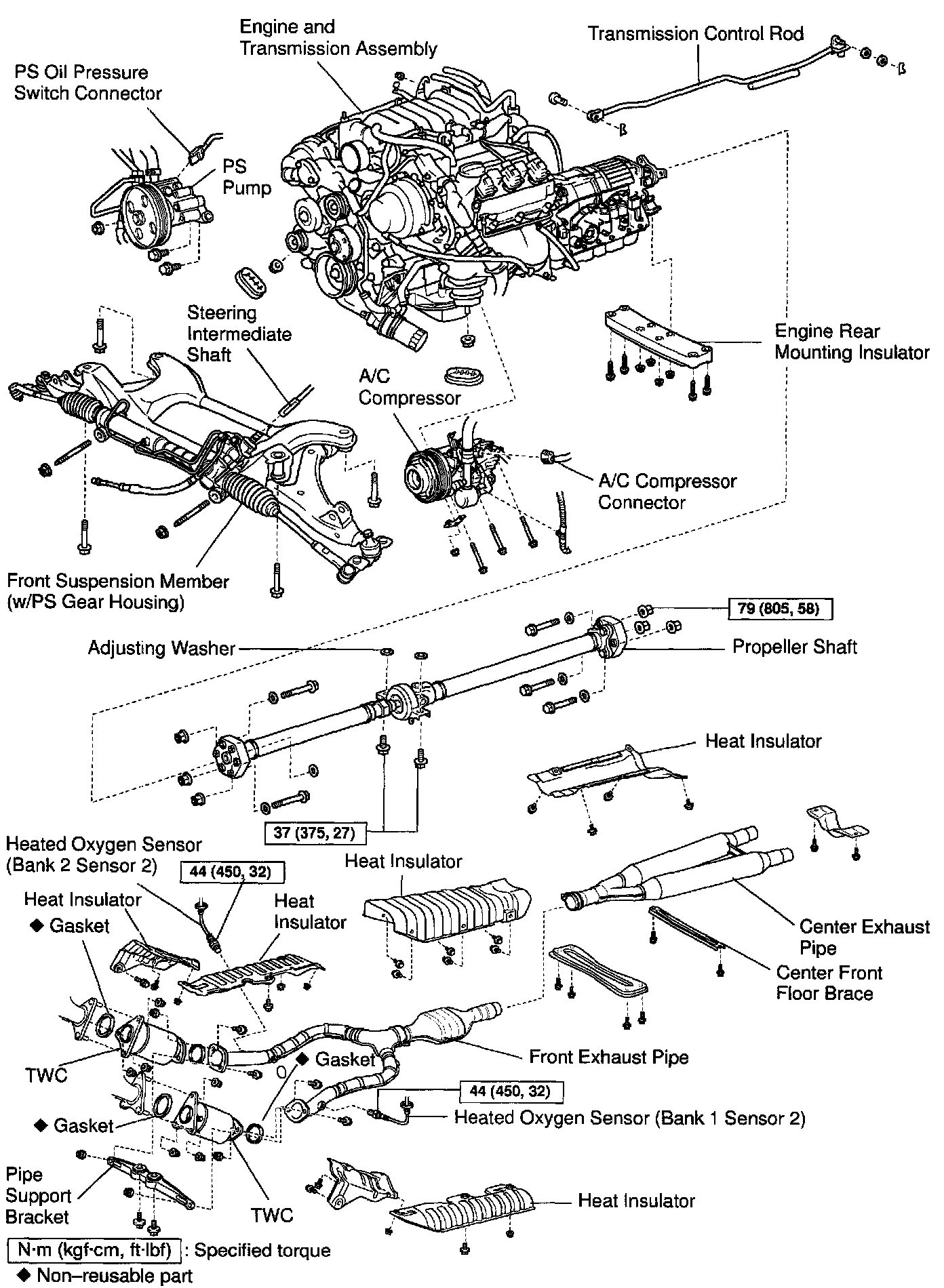

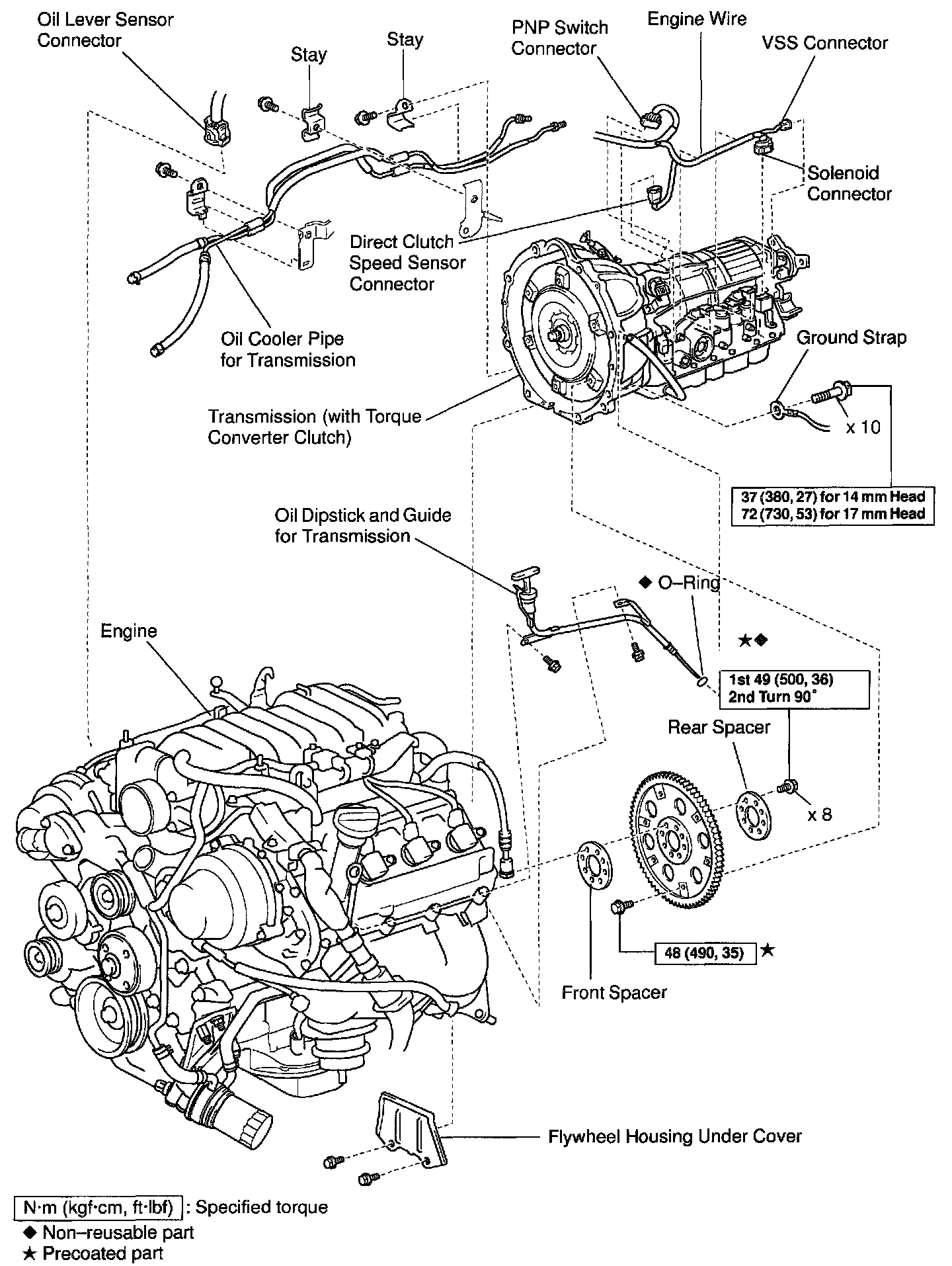

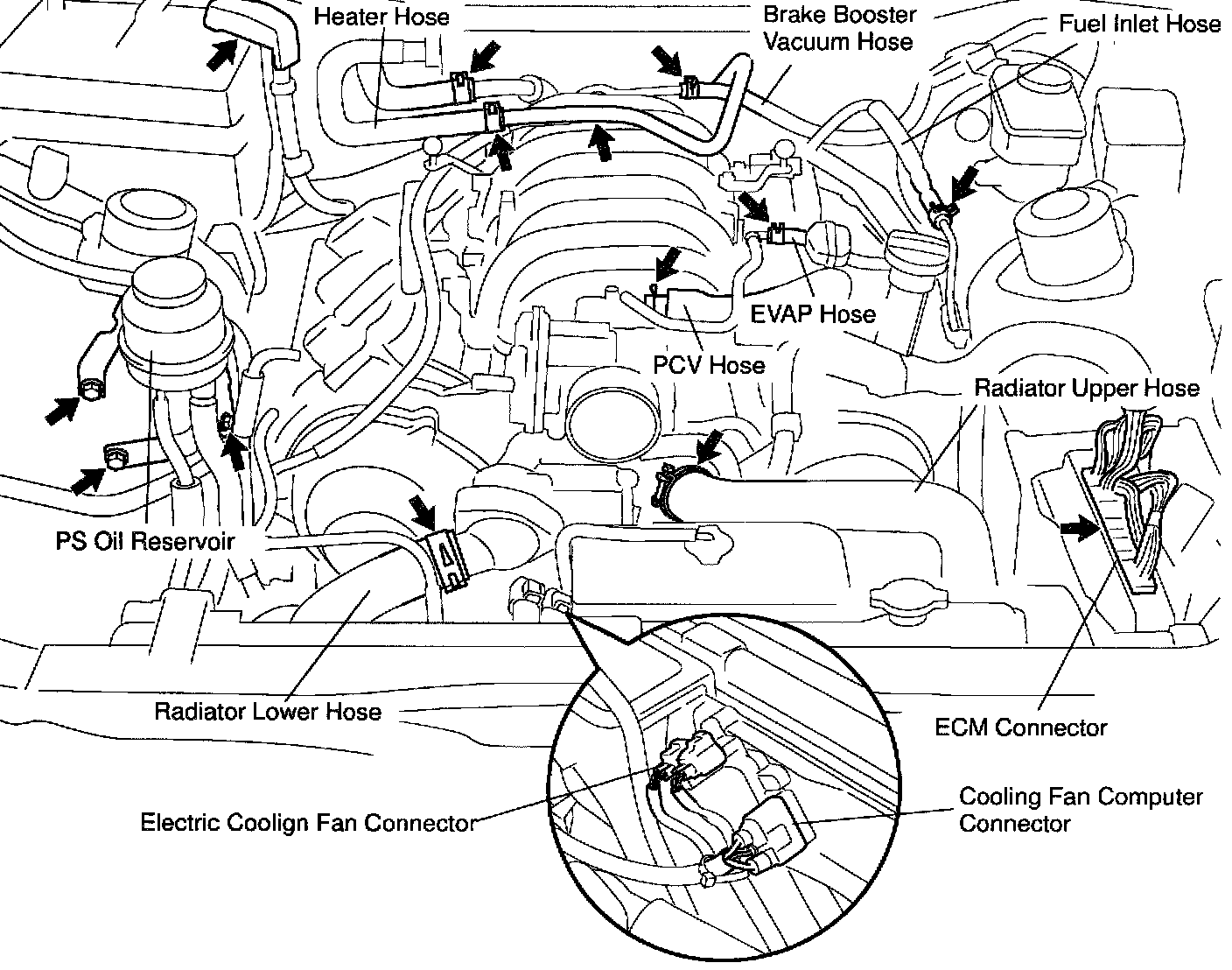

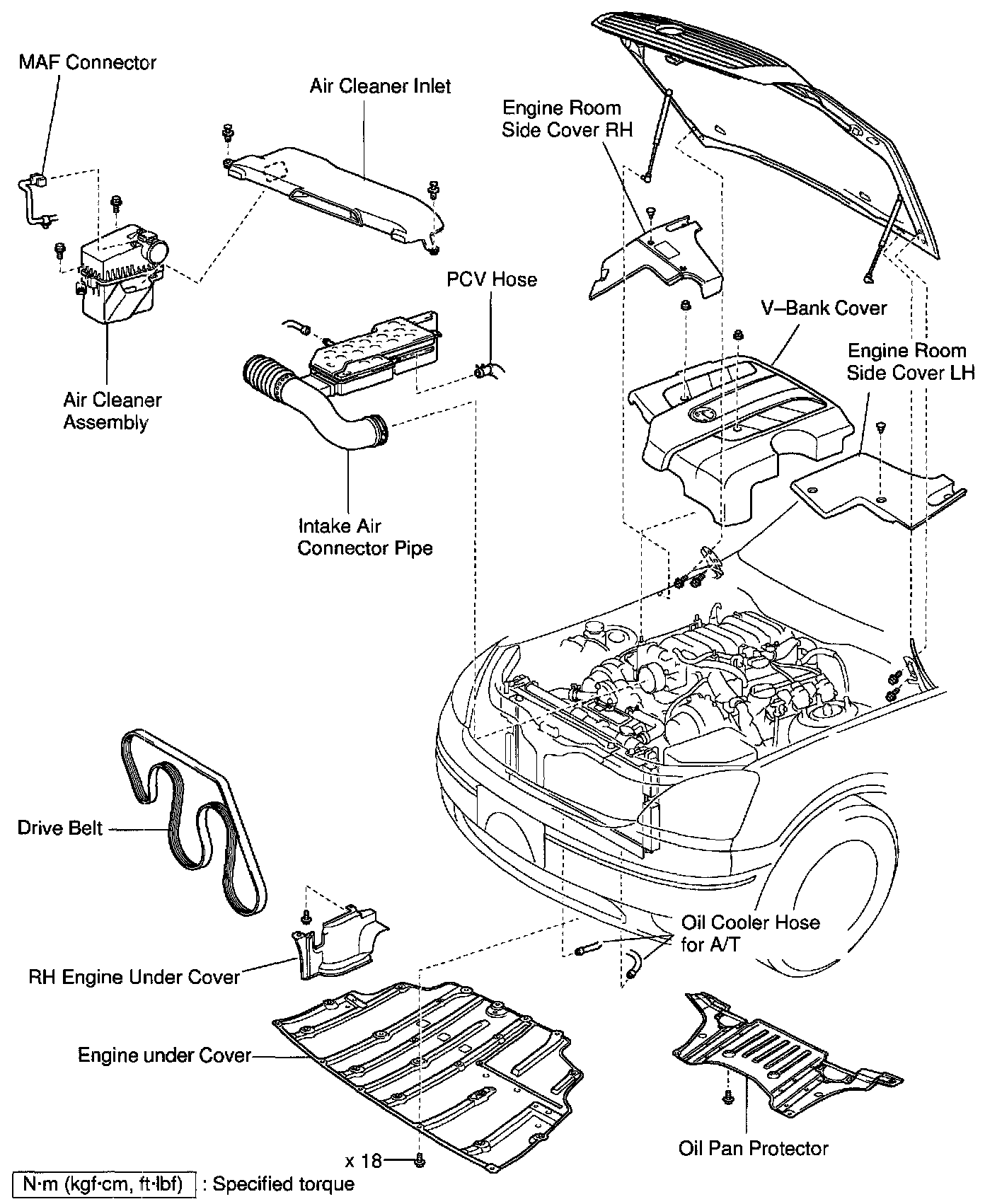

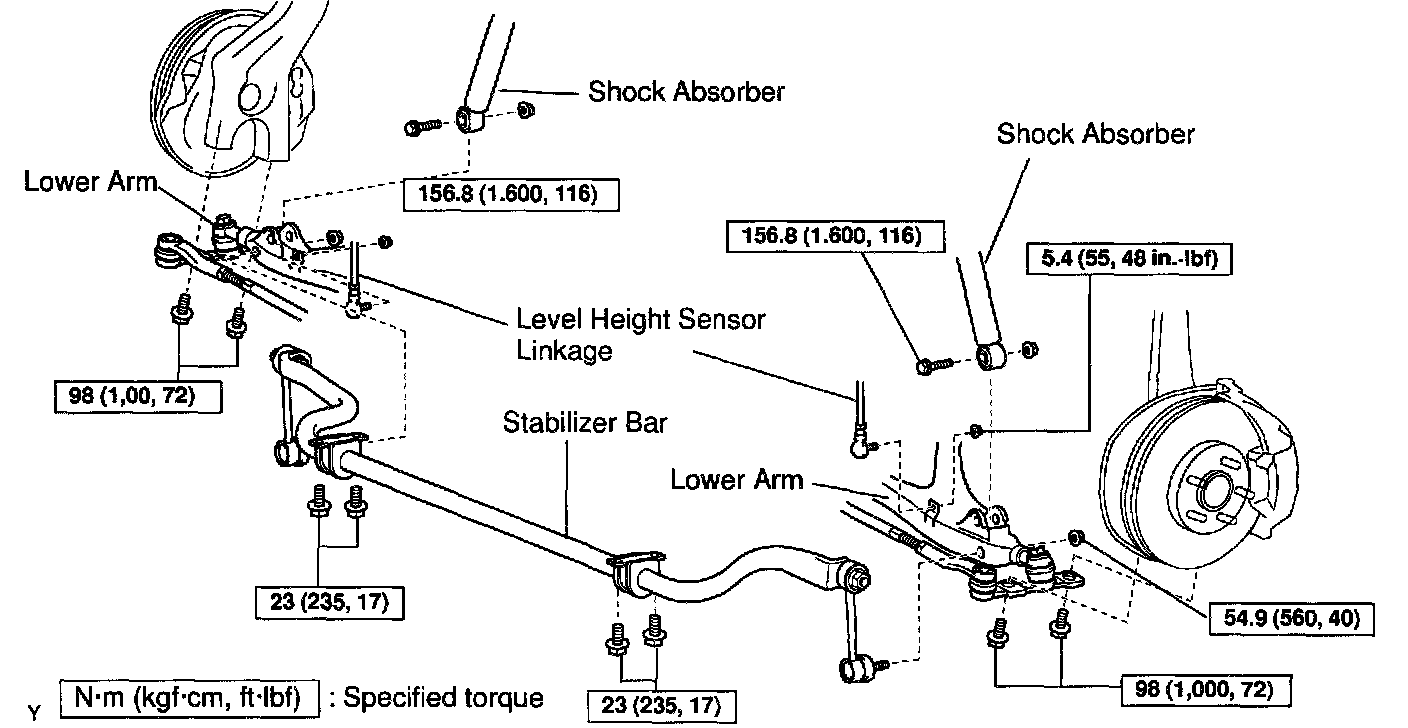

ENGINE UNIT REPLACEMENT W/ RELATED COMPONENTS





Part 1 of 5





Part 2 of 5





Part 3 of 5





Part 4 of 5





Part 5 of 5
