With Multi Display

DISASSEMBLY

REMOVE MULTI DISPLAY

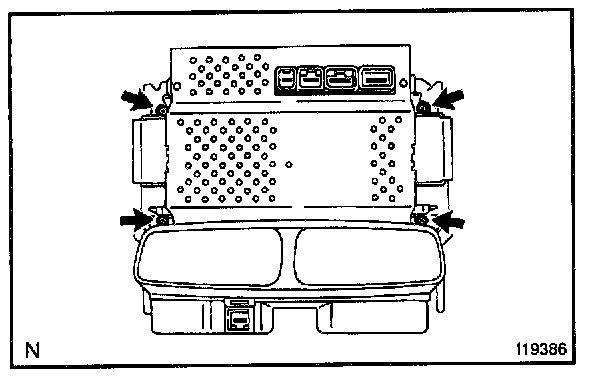

a. Remove the 4 screws and multi display.

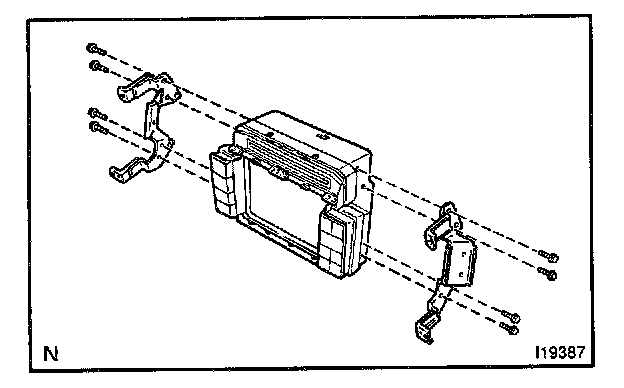

b. Remove the 8 bolts and 2 brackets.

REASSEMBLY
Reassembly is in the reverse order of disassembly
