Rear Control Assembly

Rear A/C Control Assembly:

REMOVAL




1. REMOVE REAR SEAT CENTER ARM REST COVER

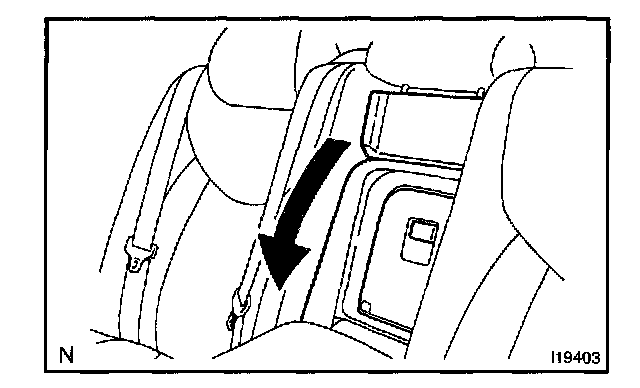

a. Slide the cooling box cover.

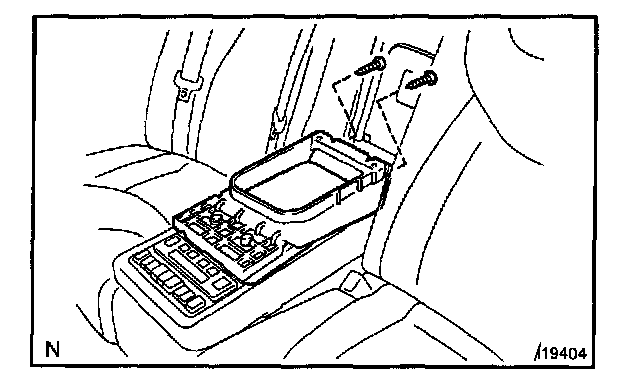

b. Remove the 2 screws and rear seat center arm rest cover.




2. REMOVE REAR A/C CONTROL ASSEMBLY

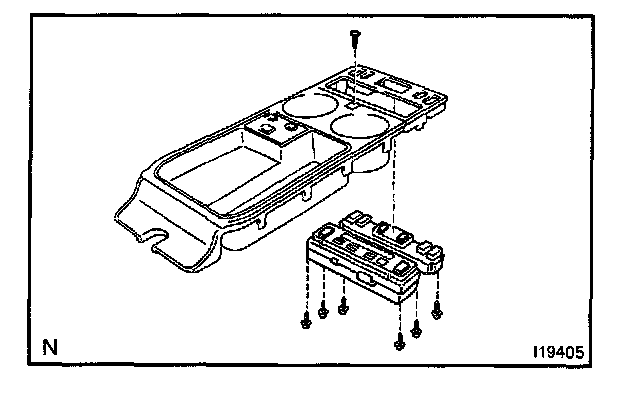

a. Remove the screw and rear seat center arm rest plate.
b. Remove the 6 screws and rear A/C control assembly.

INSTALLATION
Installation is in the reverse order of removal
