Main Relay (Computer/Fuel System): Locations

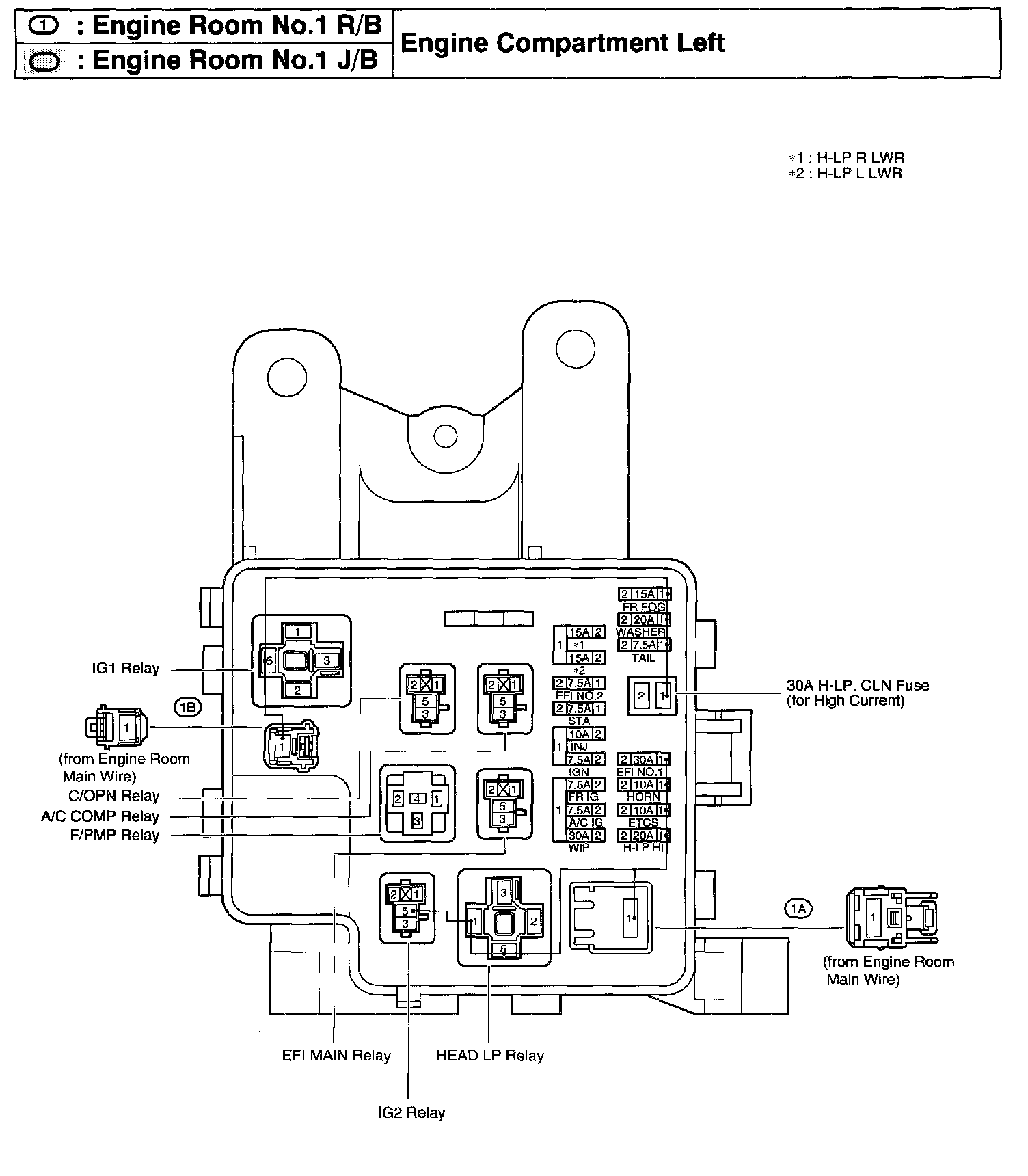

Engine Room No.1 R/B & J/B:

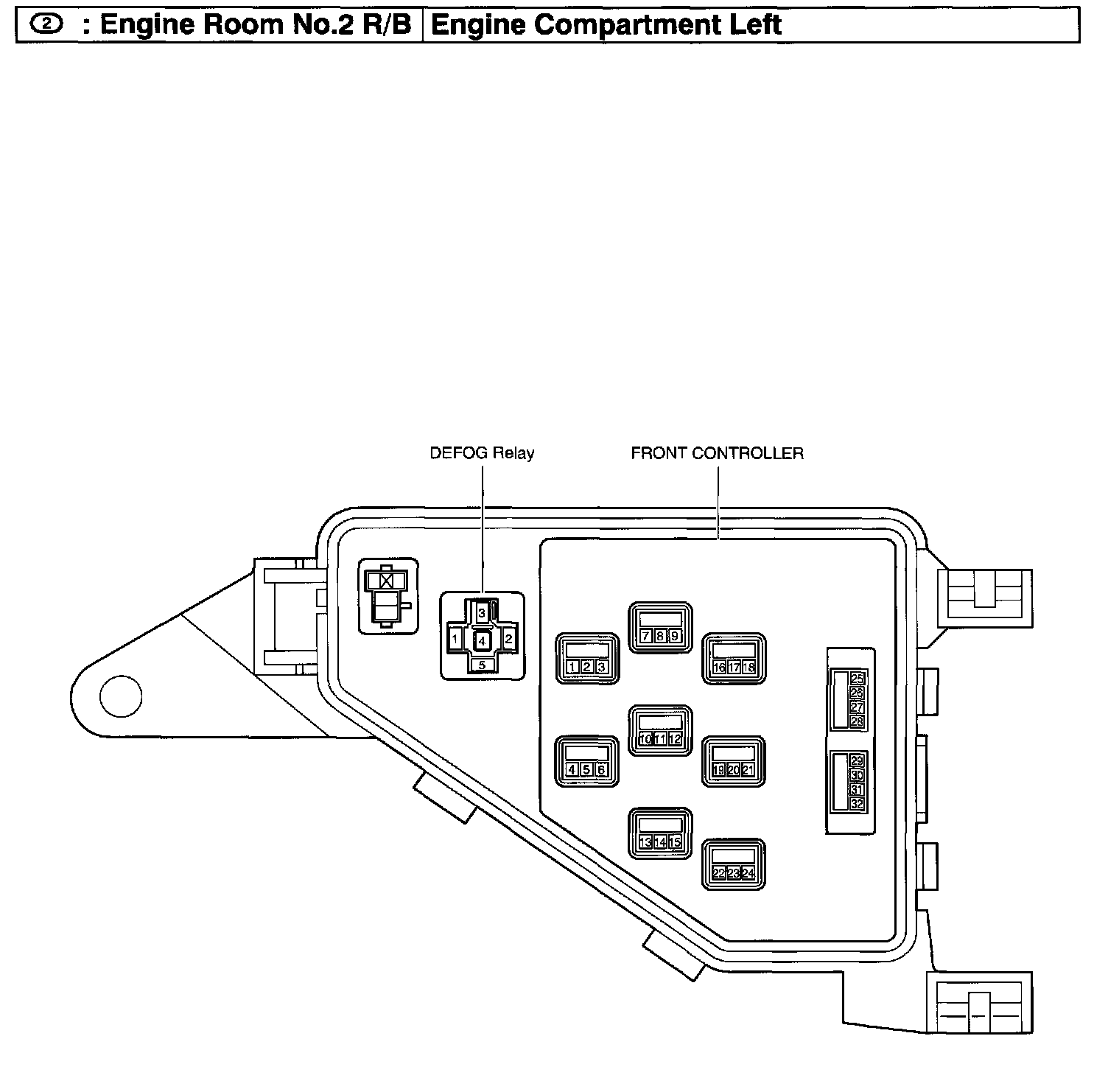

Engine Room No.2 R/B:

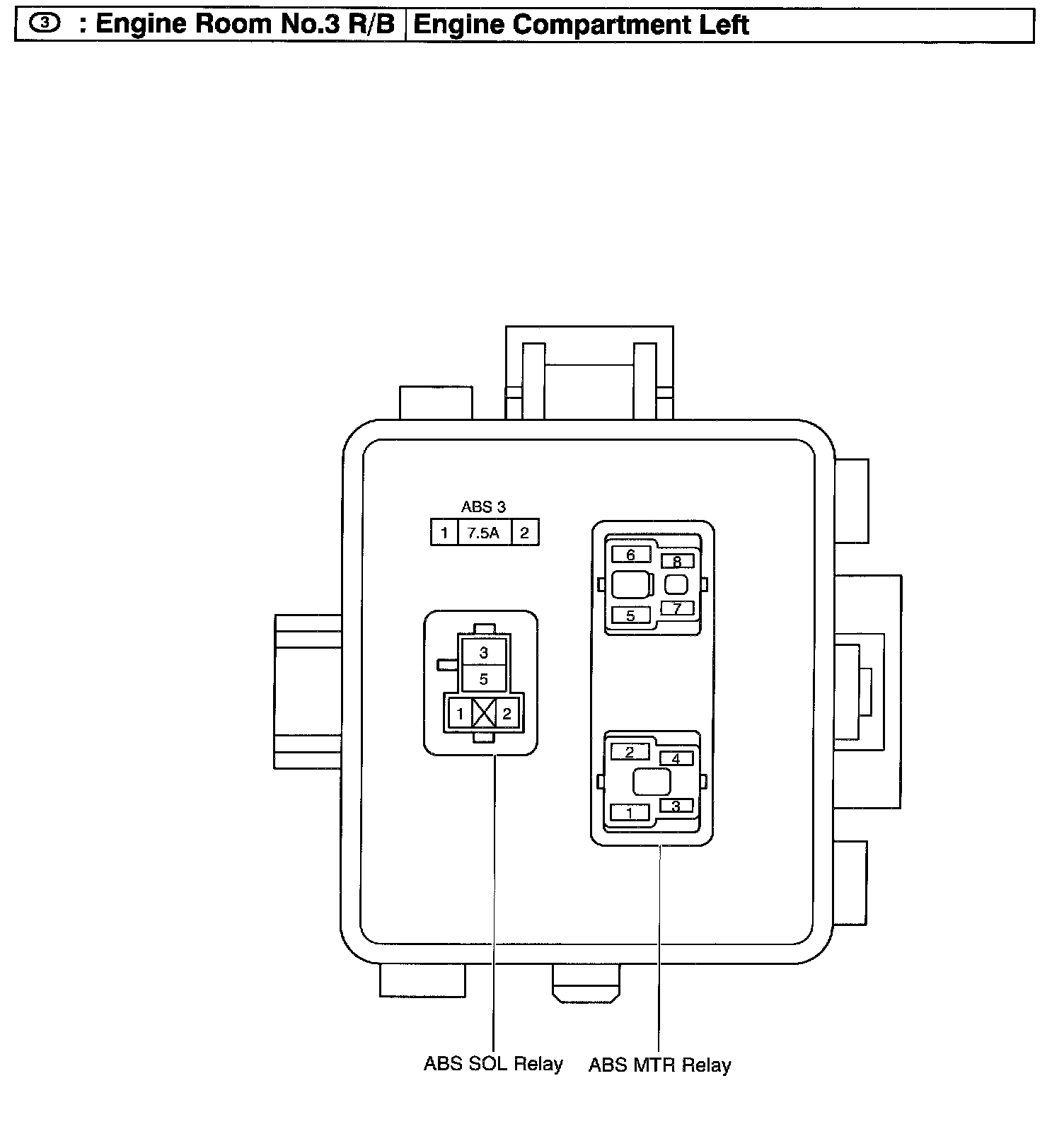

Engine Room No.3 R/B:

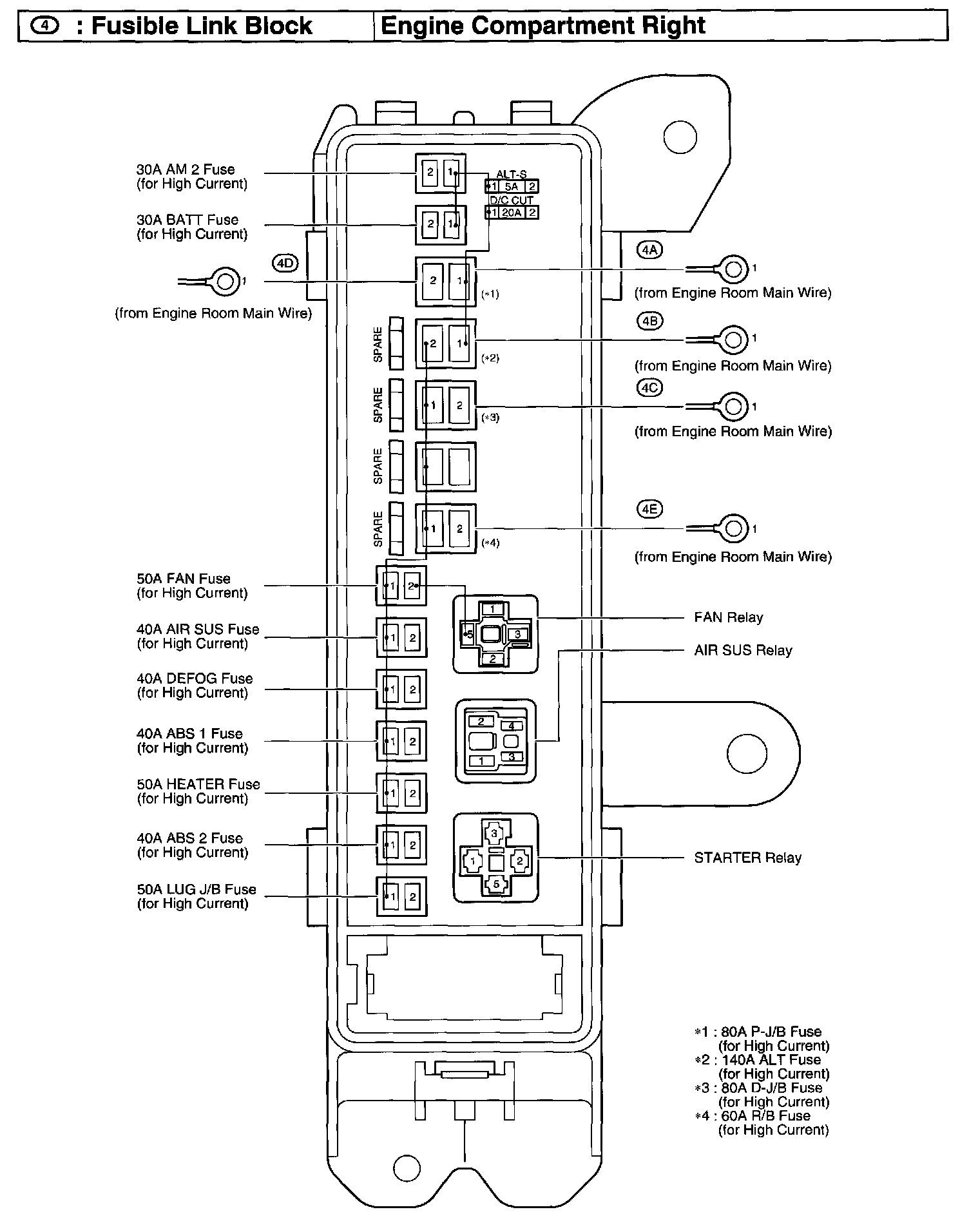

Fusible Link Block:
