System Specifications

POWER TILT AND POWER TELESCOPIC STEERING COLUMN





Part 1 of 3





Part 2 of 3





Part 3 of 3

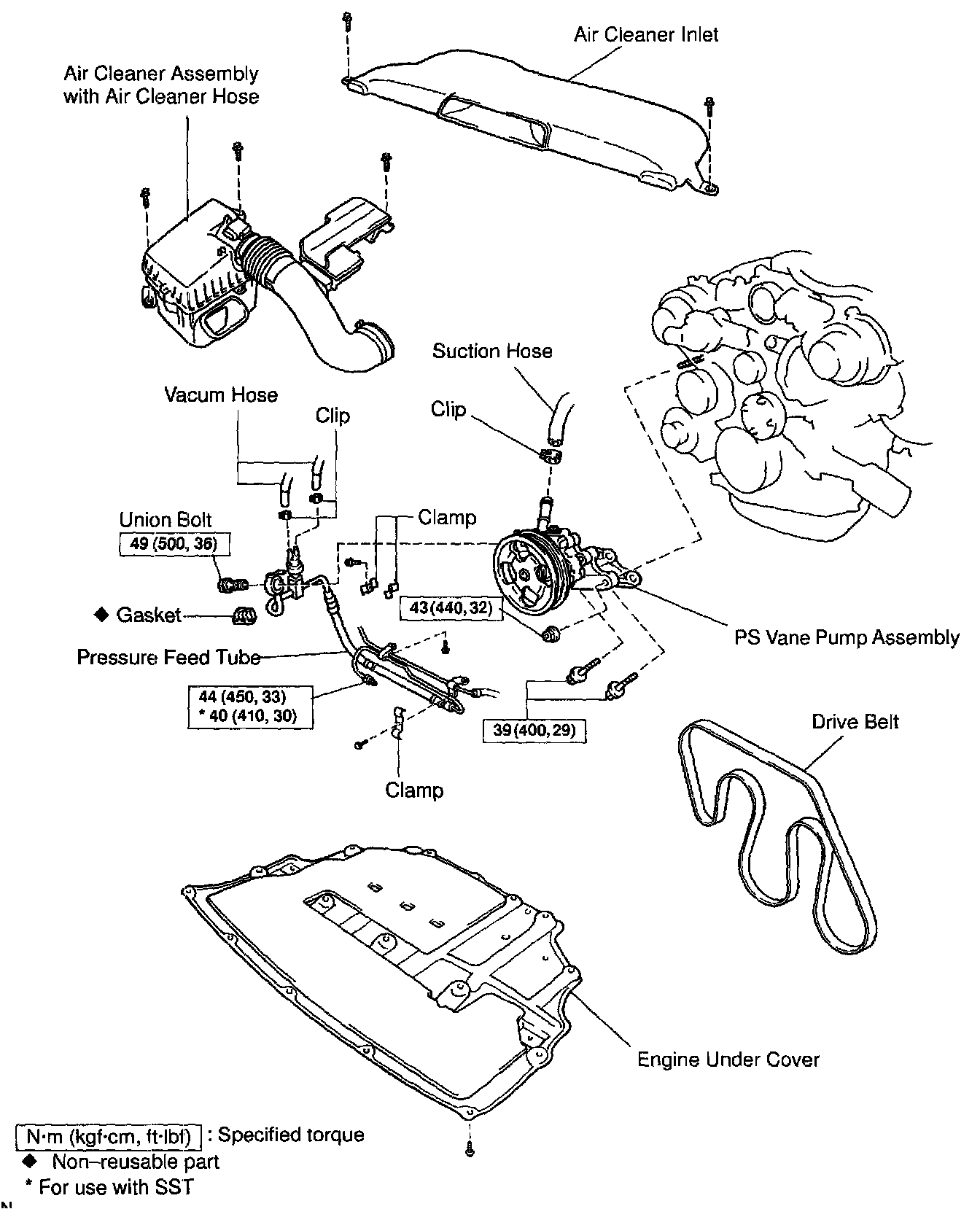

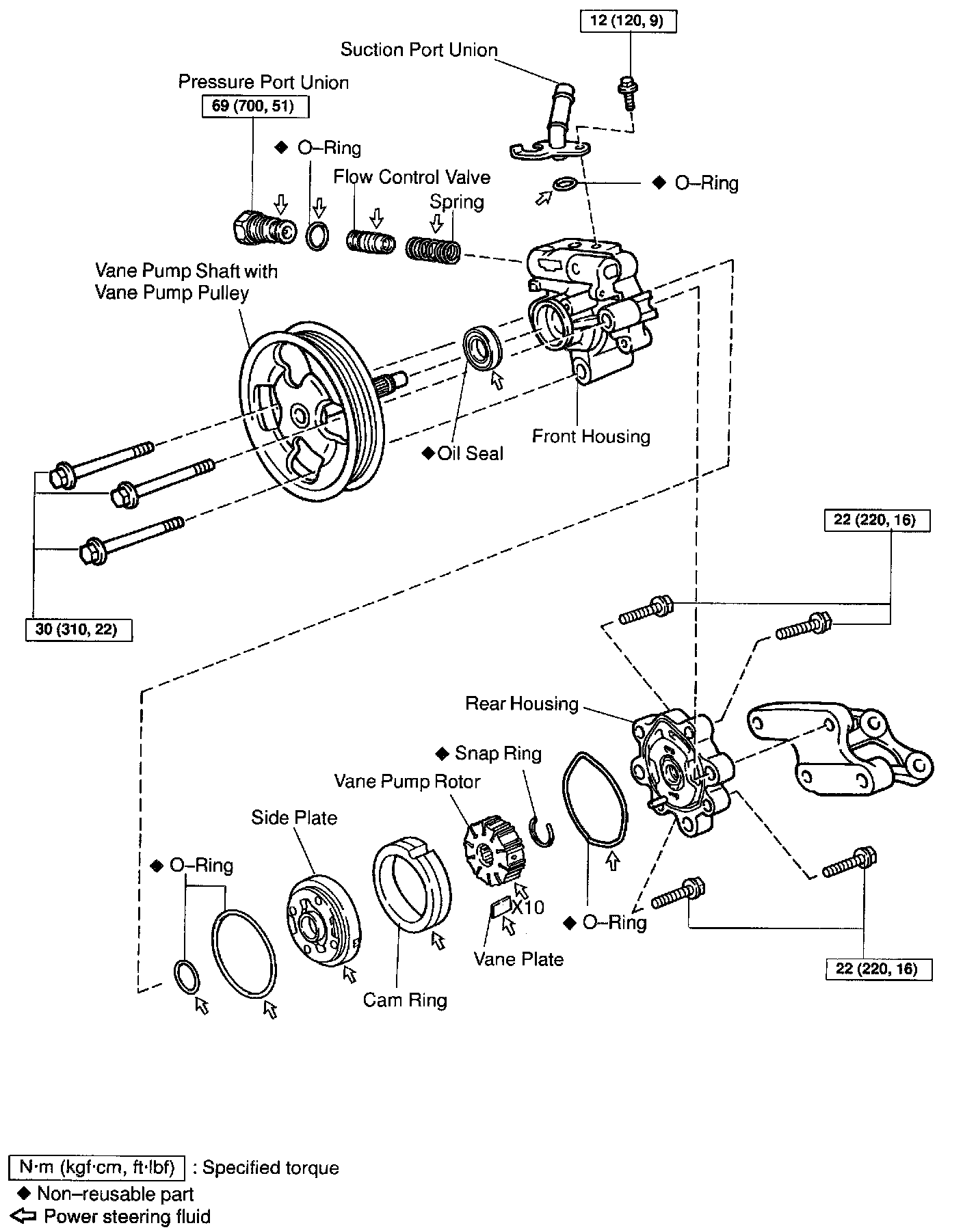

POWER STEERING VANE PUMP





Part 1 of 2





Part 2 of 2

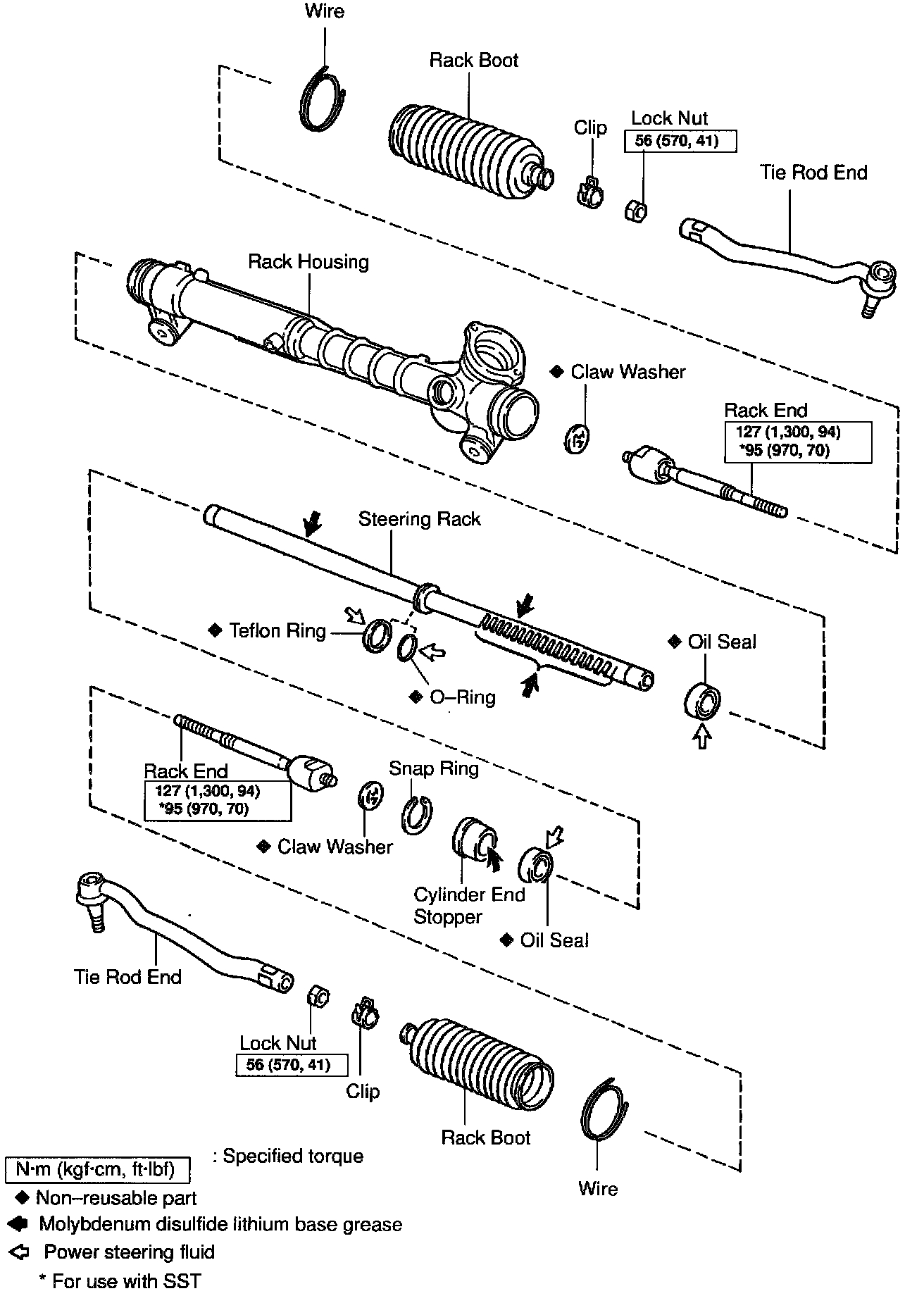

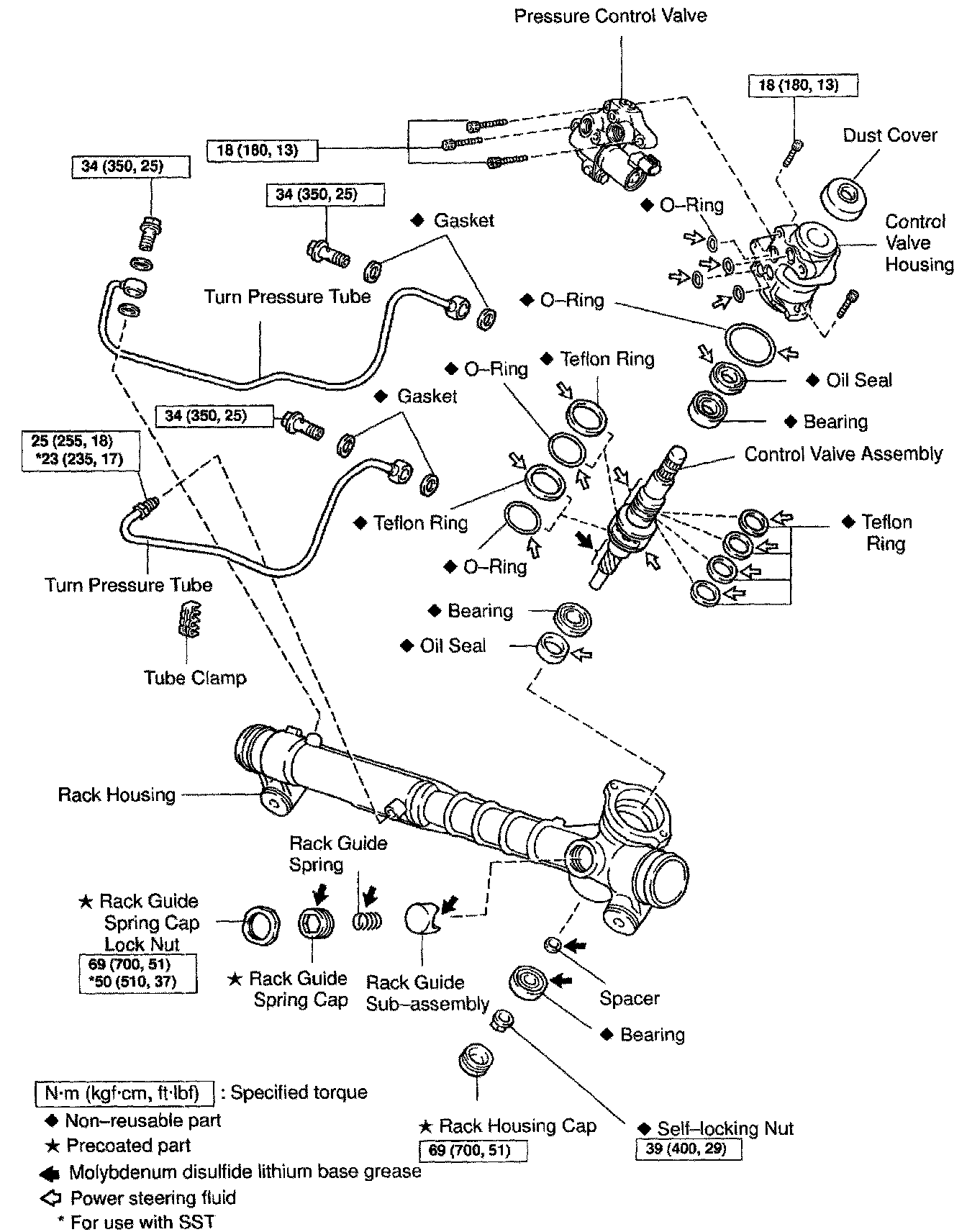

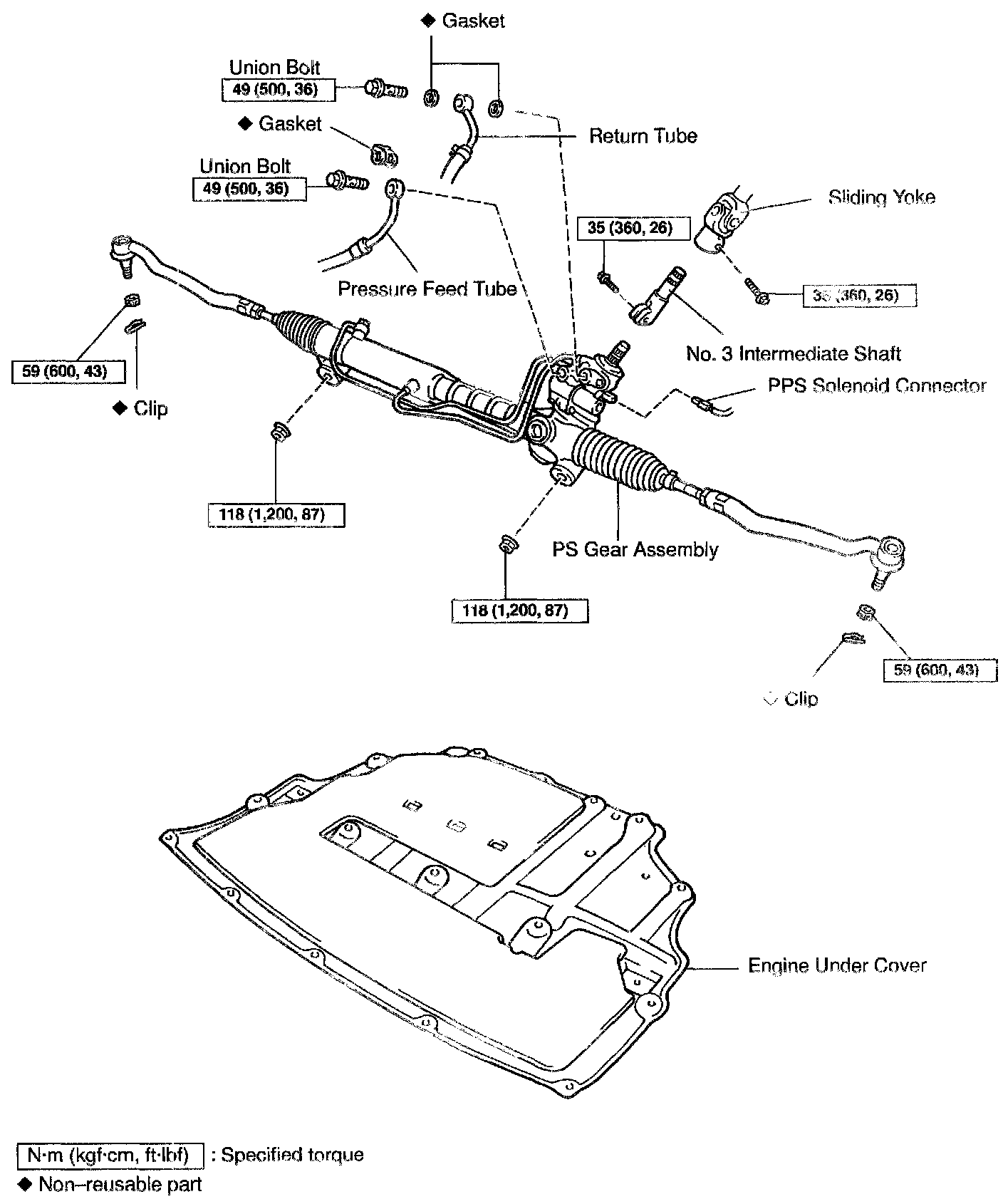

POWER STEERING GEAR





Part 1 of 3





Part 2 of 3





Part 3 of 3
