Circuit Description

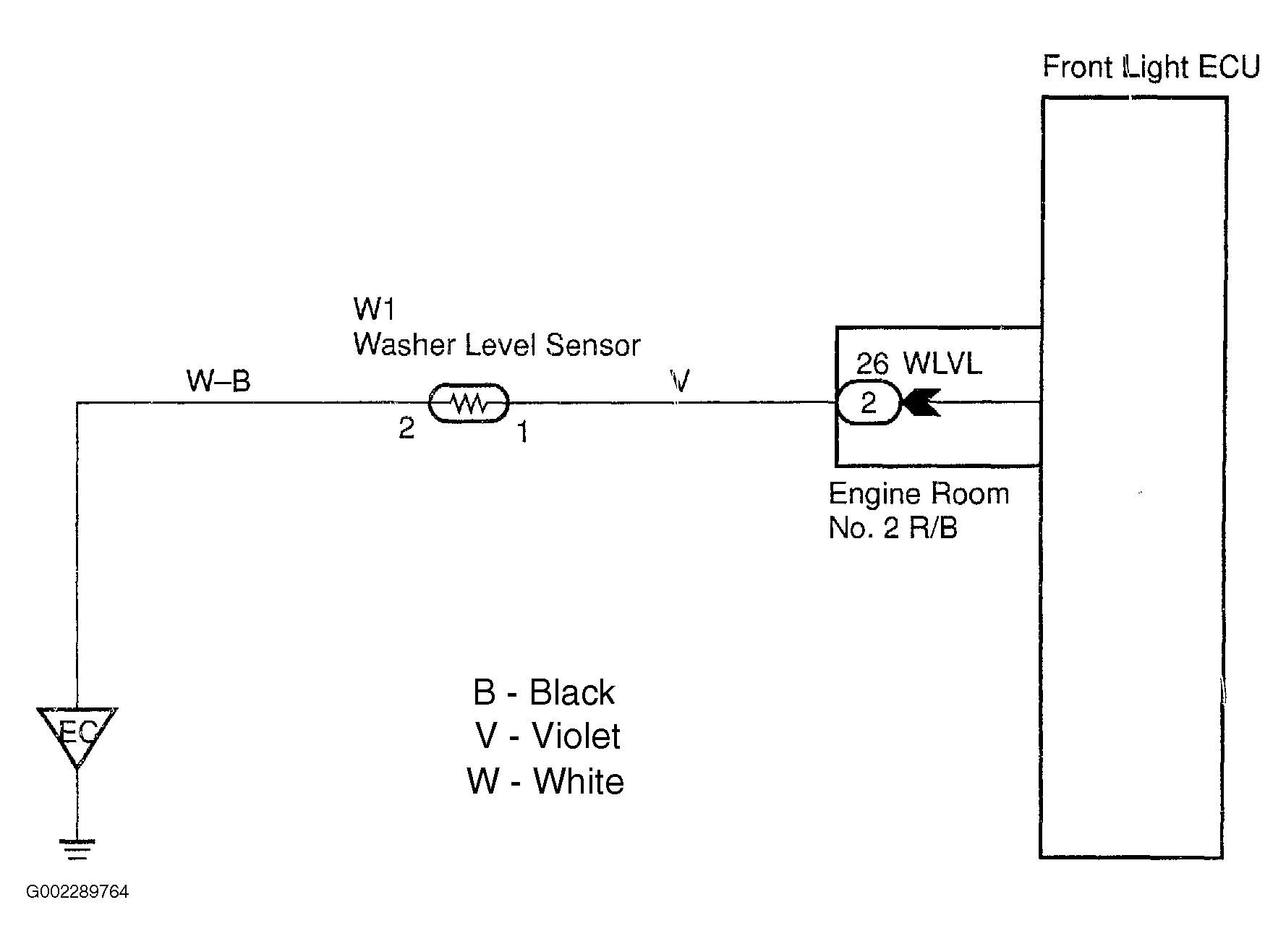

The front light (body No. 5) ECU receives washer fluid level sensor information and sends it through the multiplex communication circuit to the combination meter. The combination meter receives this information and lights the washer fluid level warning when the washer fluid becomes less. For circuit diagram, see Fig 1.
