Connector Identification

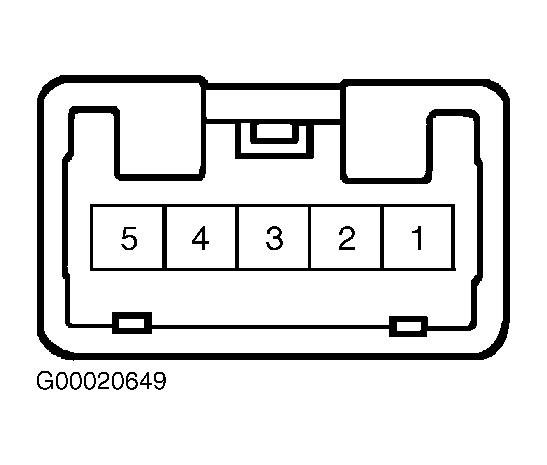

Fig 1: Identifying Accessory Bus Buffer Connector Terminals

G00020649

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

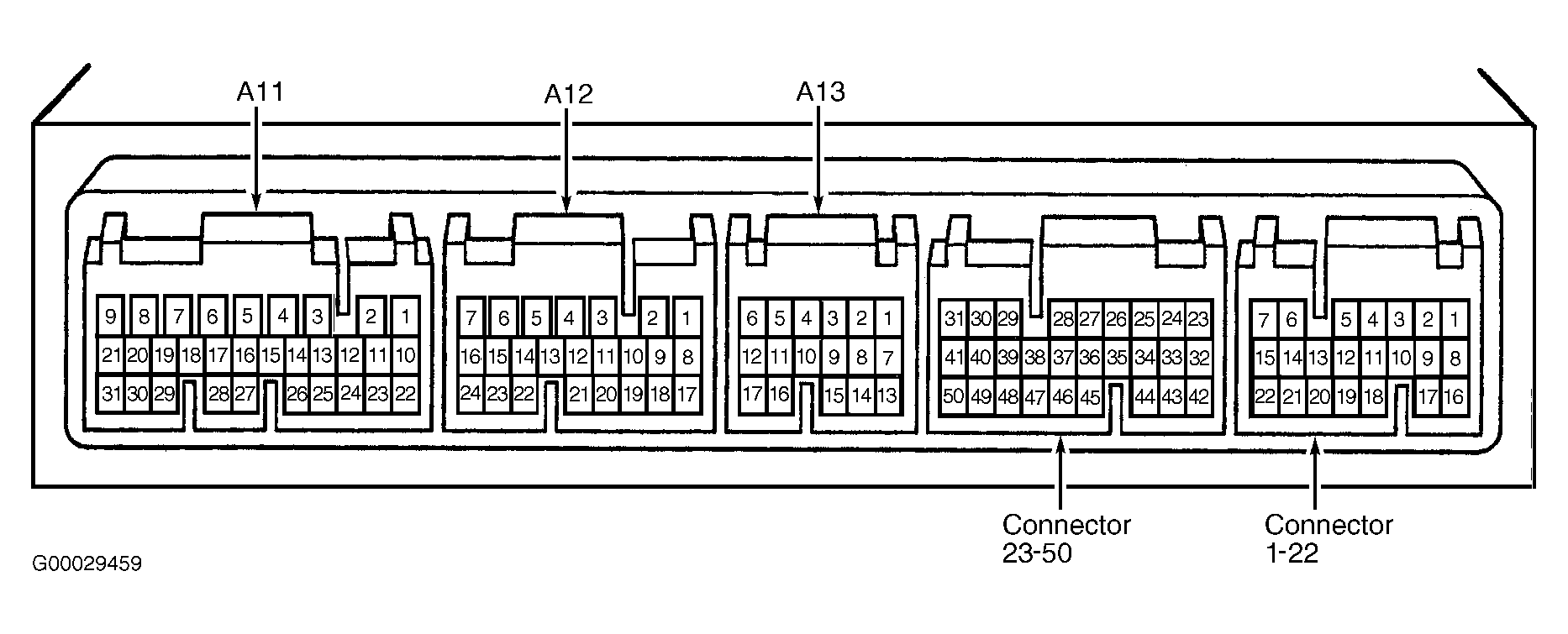

Fig 2: Identifying A/C ECU Connector Terminals

G00029459

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

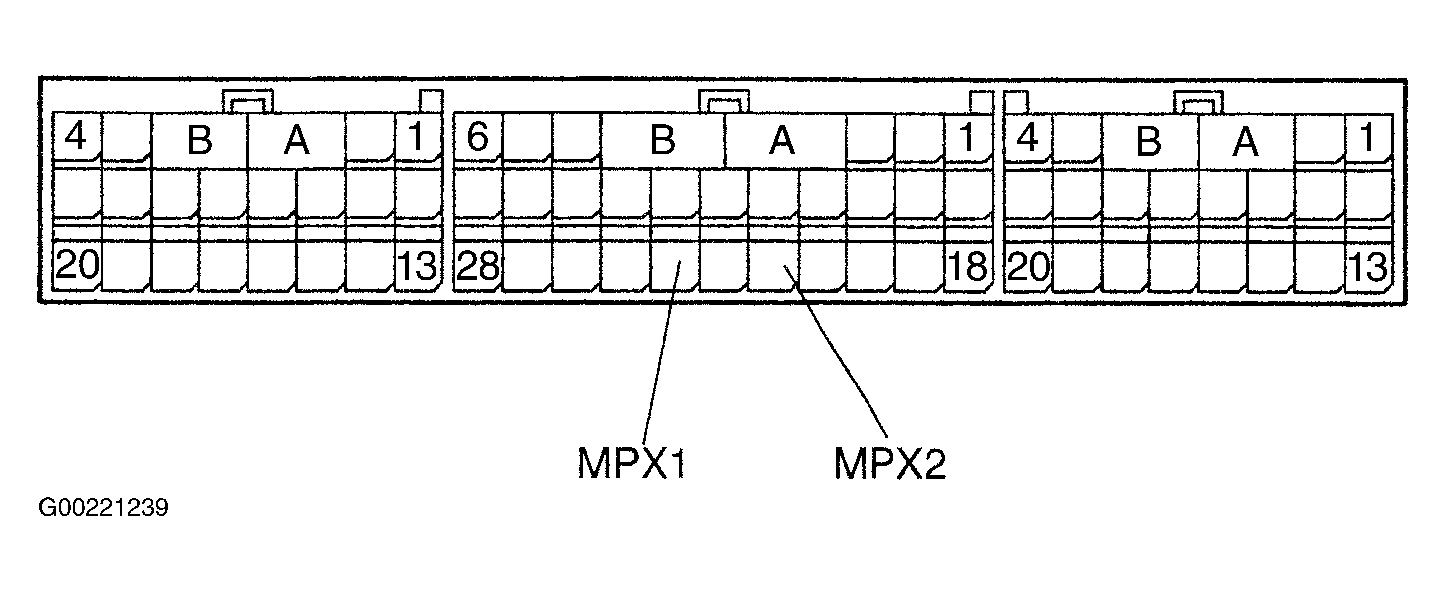

Fig 3: Identifying Air Bag Sensor Assembly Connector Terminals

G00221239

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

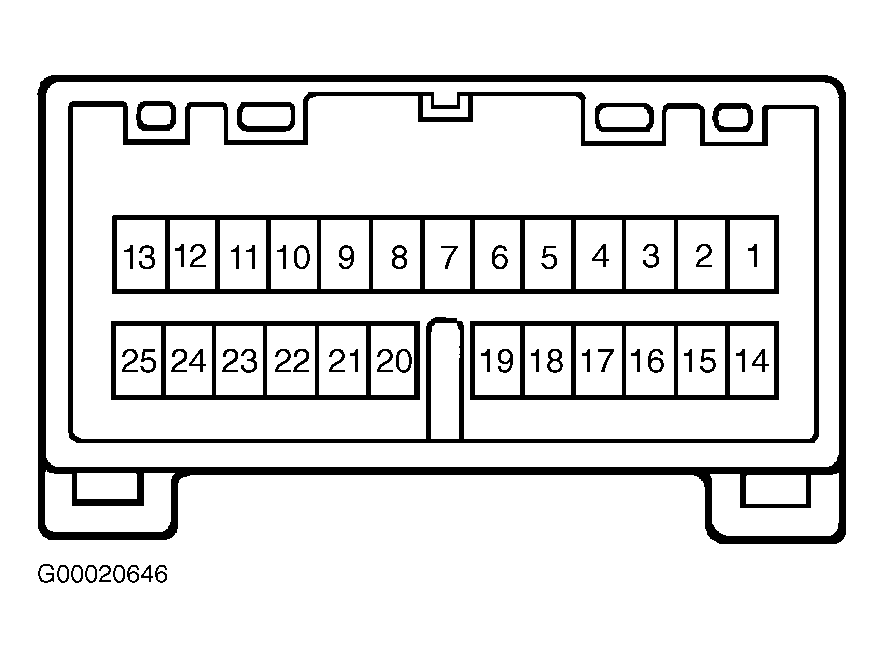

Fig 4: Identifying Clearance Sonar ECU & Rear Seat ECU Connector Terminals

G00020646

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

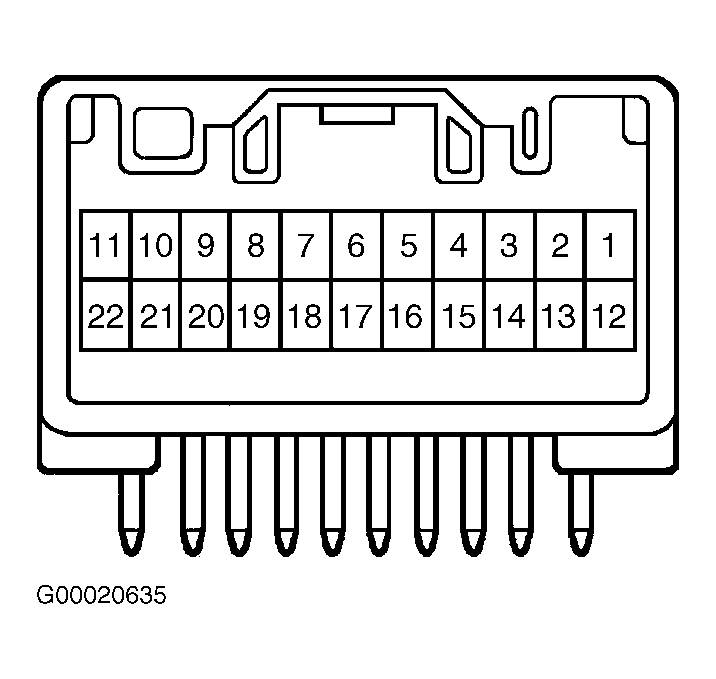

Fig 5: Identifying Combination Meter Connector Terminals

G00020635

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Combination Switch Connector Terminals

G00221240

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

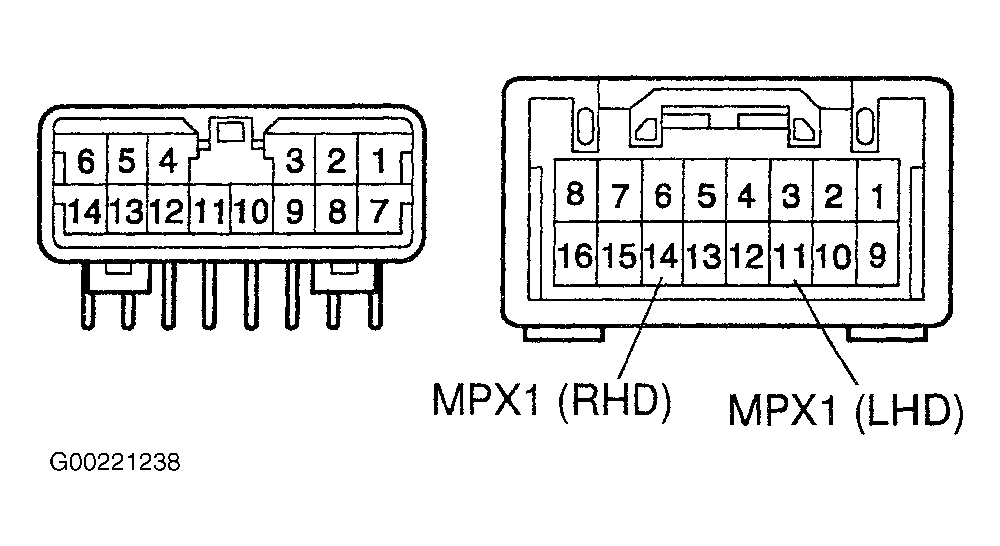

Fig 7: Identifying Driver Seat ECU Connector Terminals

G00221238

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Driver Side & Passenger Side Junction Block ECU Connector Terminals

G00020636

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Electronic Control Module (ECM) Connector Terminals

G00024251

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Front Light ECU Connector Terminals

G00020638

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Identifying Front & Rear Door ECU Connector Terminals

G00020627

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

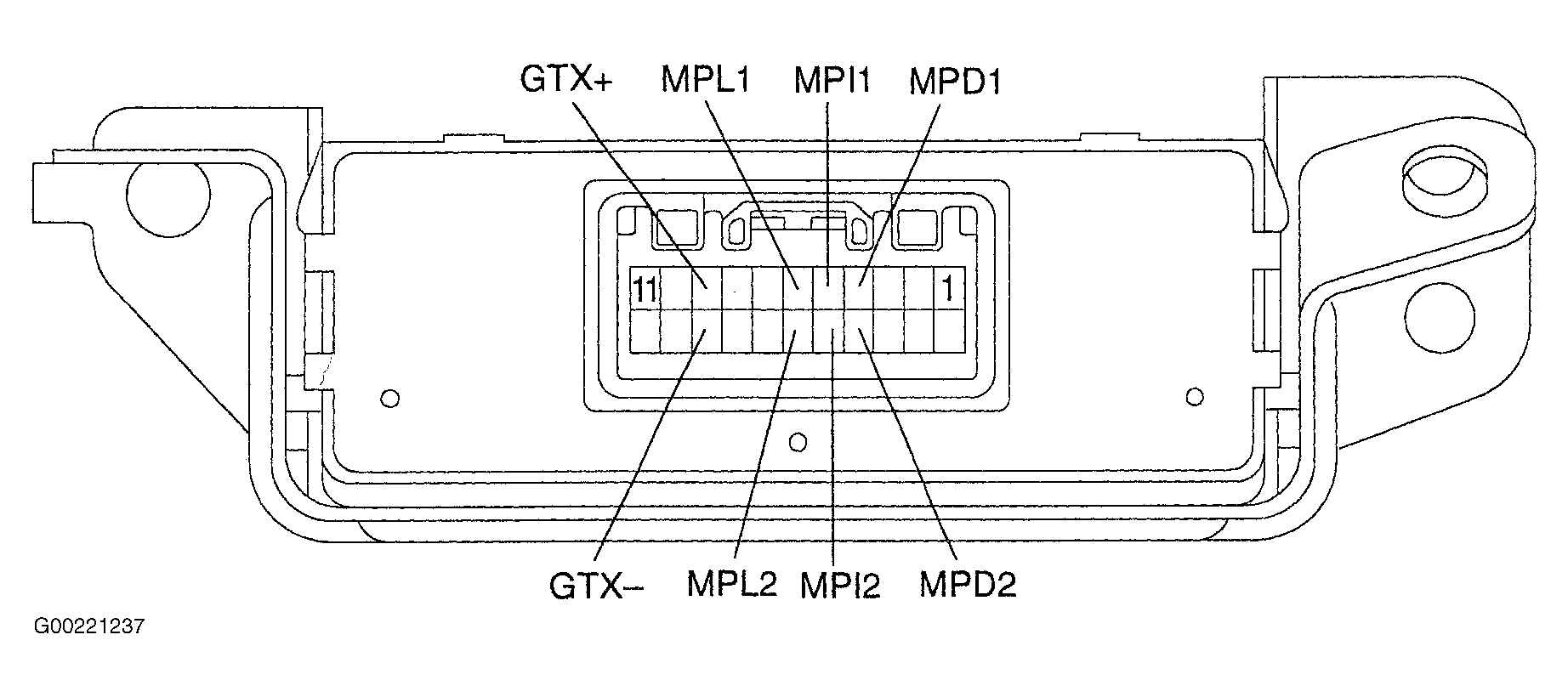

Fig 12: Identifying Gateway ECU Connector Terminals

G00221237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

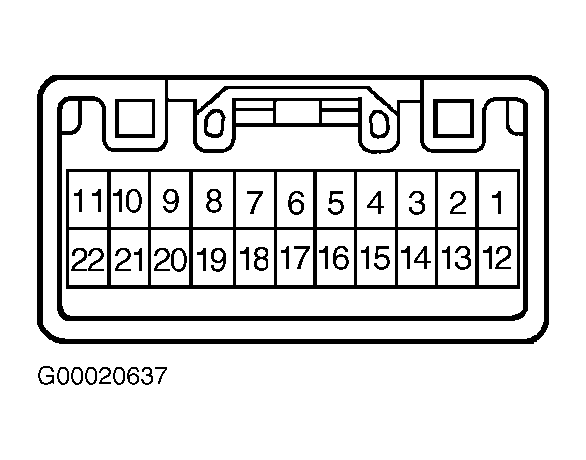

Fig 13: Identifying Luggage Room Junction Block Connector Terminals

G00020637

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

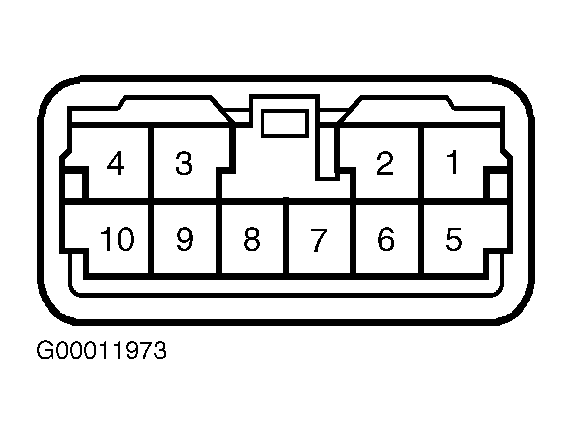

Fig 14: Identifying Moon Roof Control ECU Connector Terminals

G00011973

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

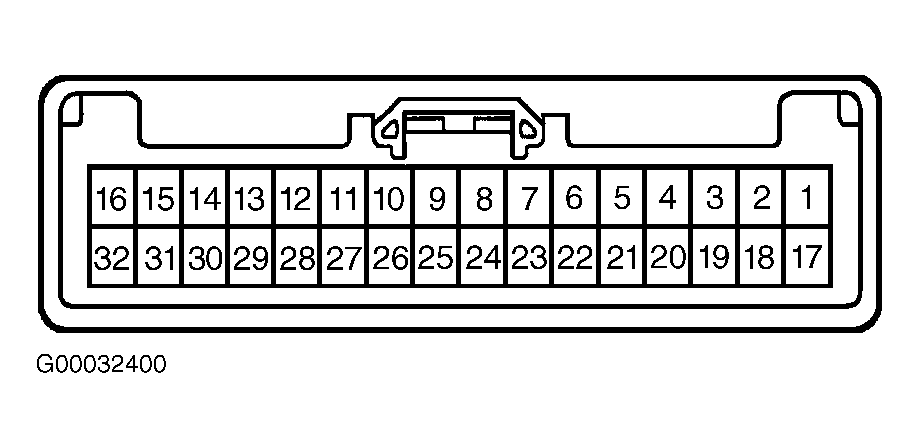

Fig 15: Identifying Overhead Junction Block ECU Connector Terminals

G00032400

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

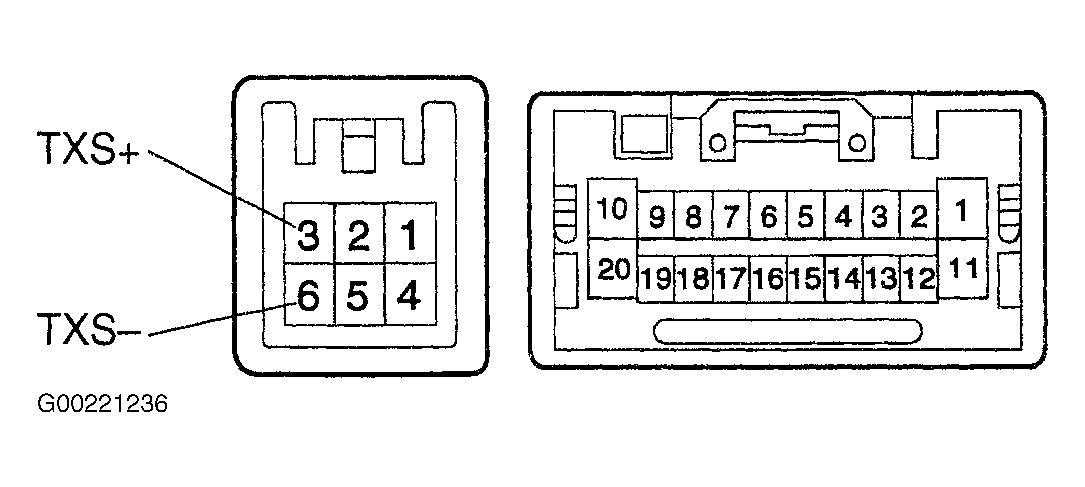

Fig 16: Identifying Radio & Player Connector Terminals

G00221236

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

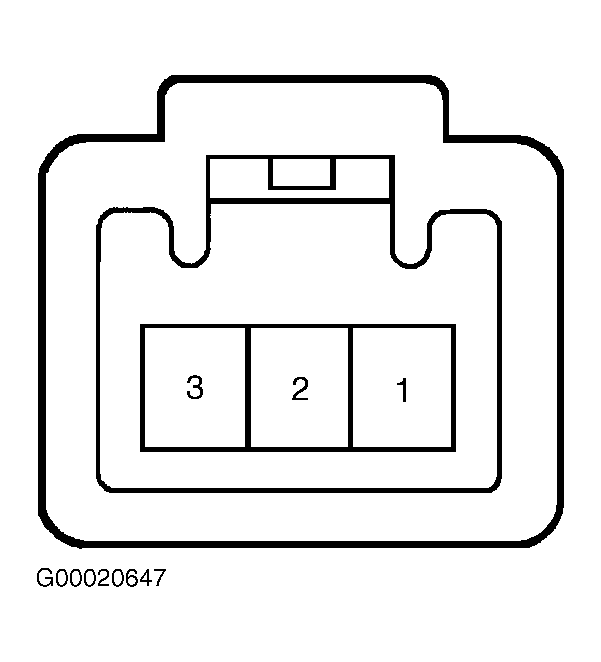

Fig 17: Identifying Rain Sensor Connector Terminals

G00020647

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

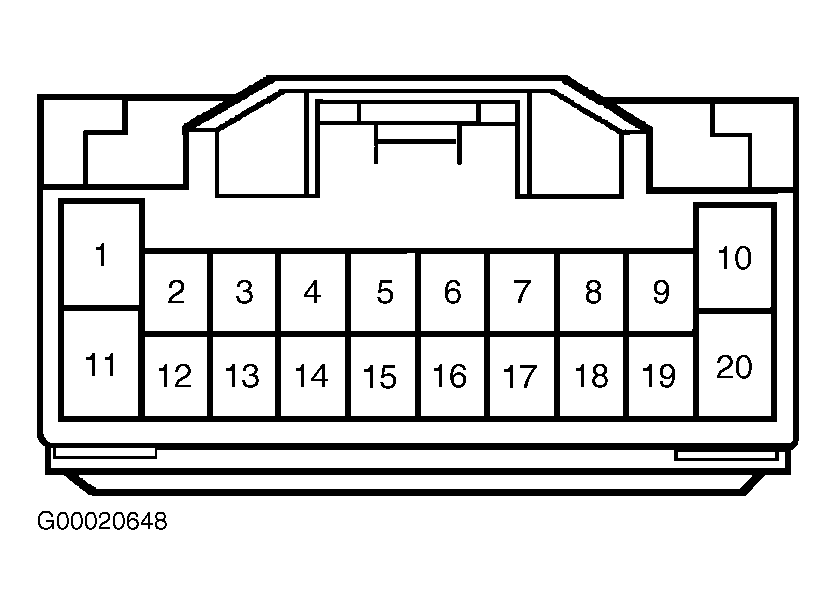

Fig 18: Identifying Rear Seat Switch Connector Terminals

G00020648

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

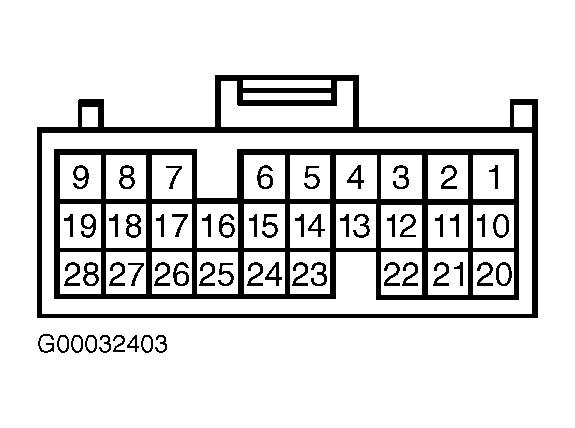

Fig 19: Identifying Skid Control ECU Connector Terminals

G00032403

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

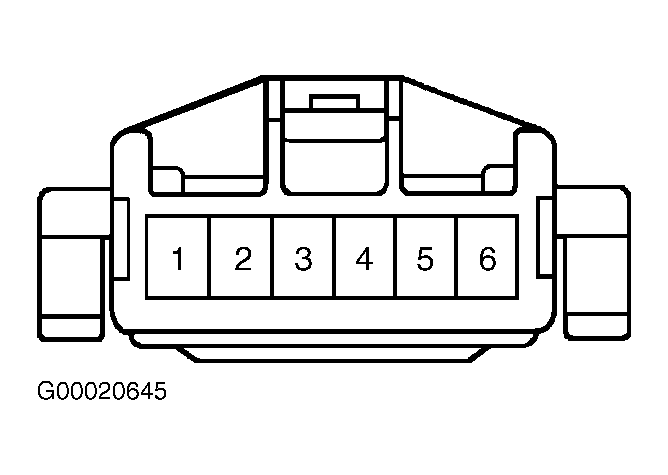

Fig 20: Identifying Steering Pad Switch Connector Terminals

G00020645

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

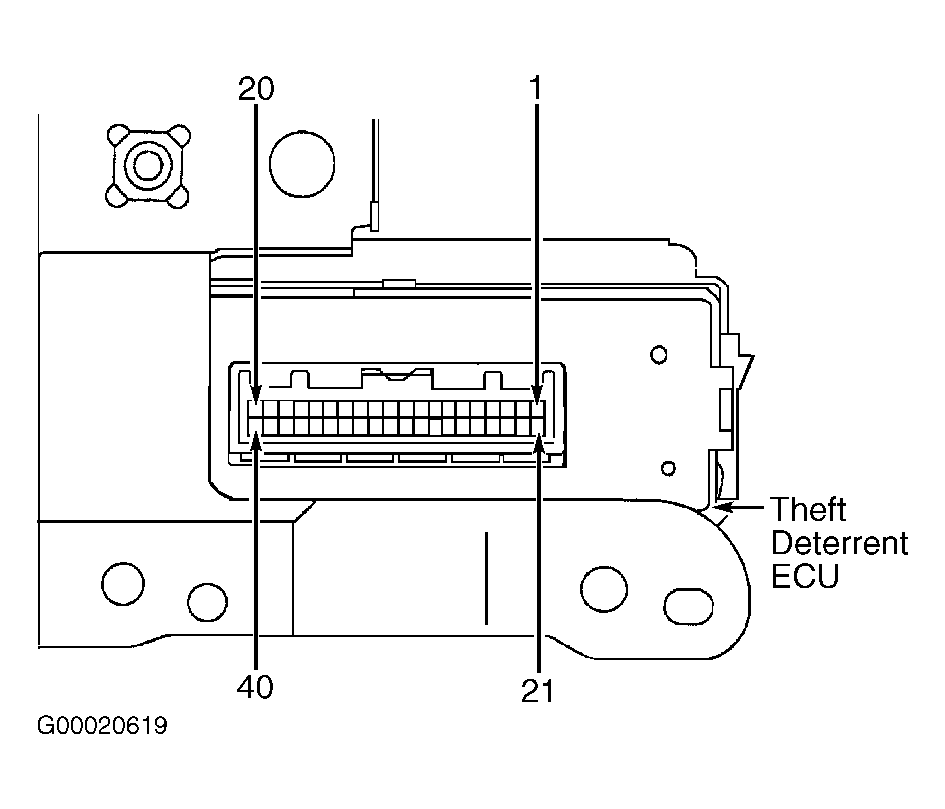

Fig 21: Identifying Theft Deterrent ECU Connector Terminals

G00020619

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Identifying Tilt & Telescopic ECU Connector Terminals

G00020610

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

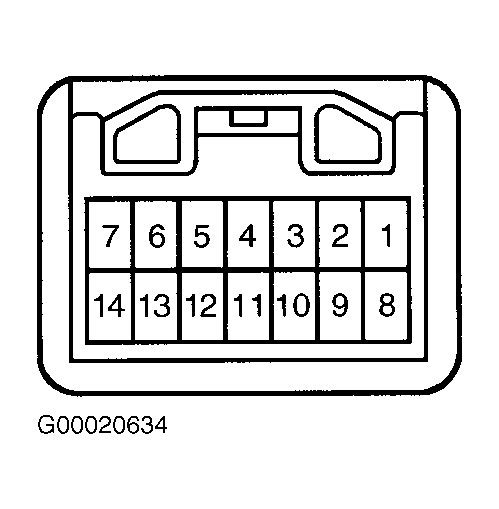

Fig 23: Identifying Transponder Key ECU Connector Terminals

G00020634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
