Replace Transmitter (Lithium) Battery

NOTE: Special caution should be taken for handling each component as they are precision electronic components.

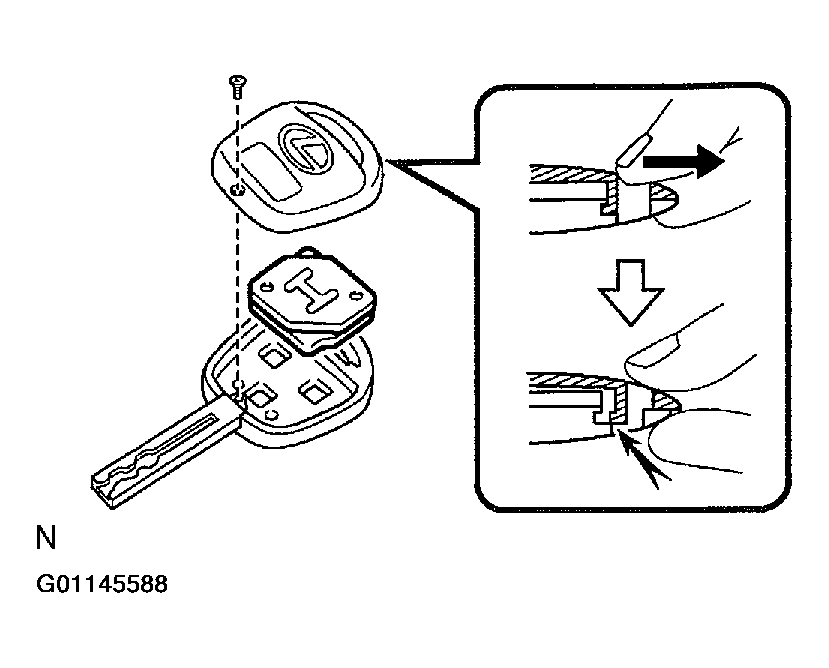

Using a screwdriver, remove the screw and cover.
NOTE: Do not pry out the cover forcibly.

HINT:

Push the cover with a finger as shown in the illustration, so that there becomes clearance, then pry out the cover from that clearance.
Using a screwdriver, remove the 2 screws and cover.
Remove the battery (lithium battery).
NOTE:
- Do not push the terminals with a finger.
- If prying up the battery (lithium battery) forcibly to remove, the terminals are deformed.

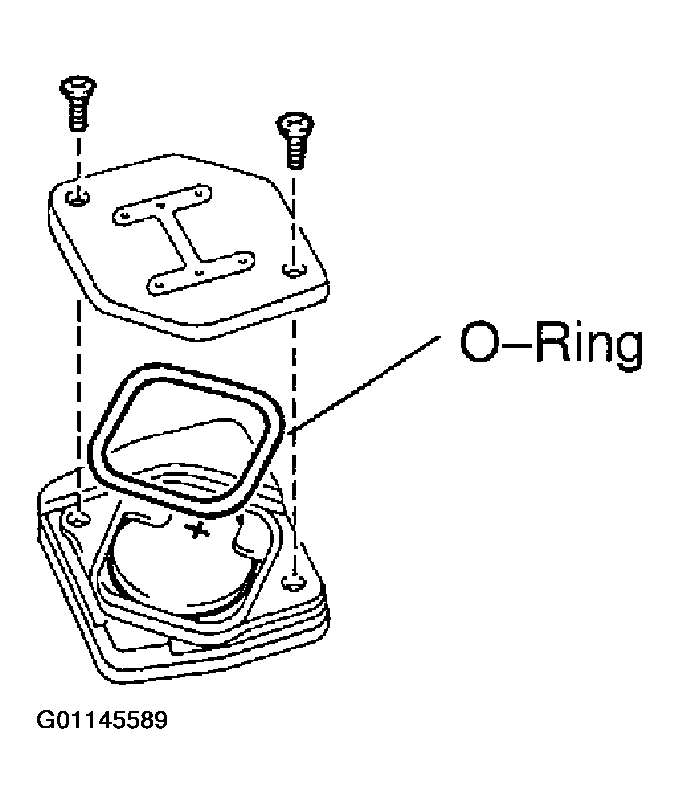

Fig 2: Removing Battery (Lithium Battery)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install a battery (lithium battery) as shown in the illustration.
NOTE: Face the battery upward. Take care not to deform the terminals.
Check that O-ring is not distorted or slipped off, and install the cover.
Using a screwdriver, tighten the 2 screws.

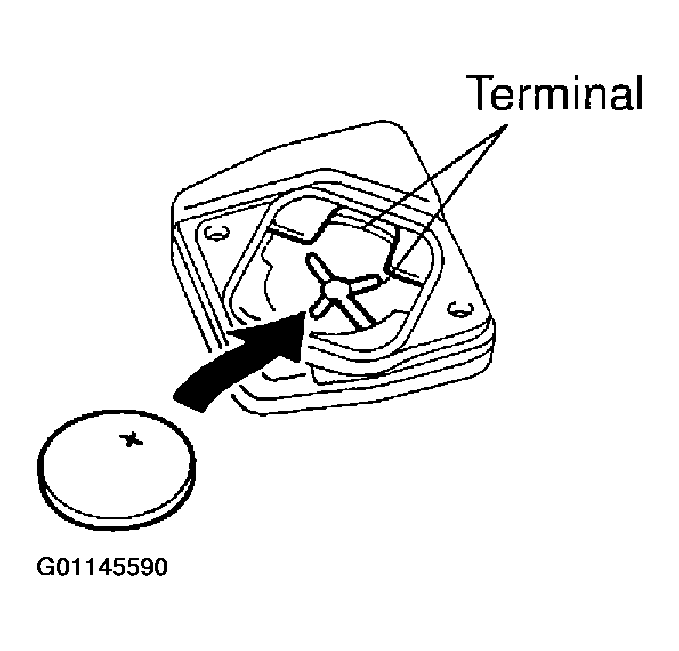

Fig 3: Installing Battery (Lithium Battery)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: When the shrews are tightened loosely, it might cause faulty contact of battery (lithium battery) and terminals.
Assemble the transmitter to the key plate and the cover.
Using a screwdriver, tighten the screw.
