Exterior/Interior Trim: Headlight: Components

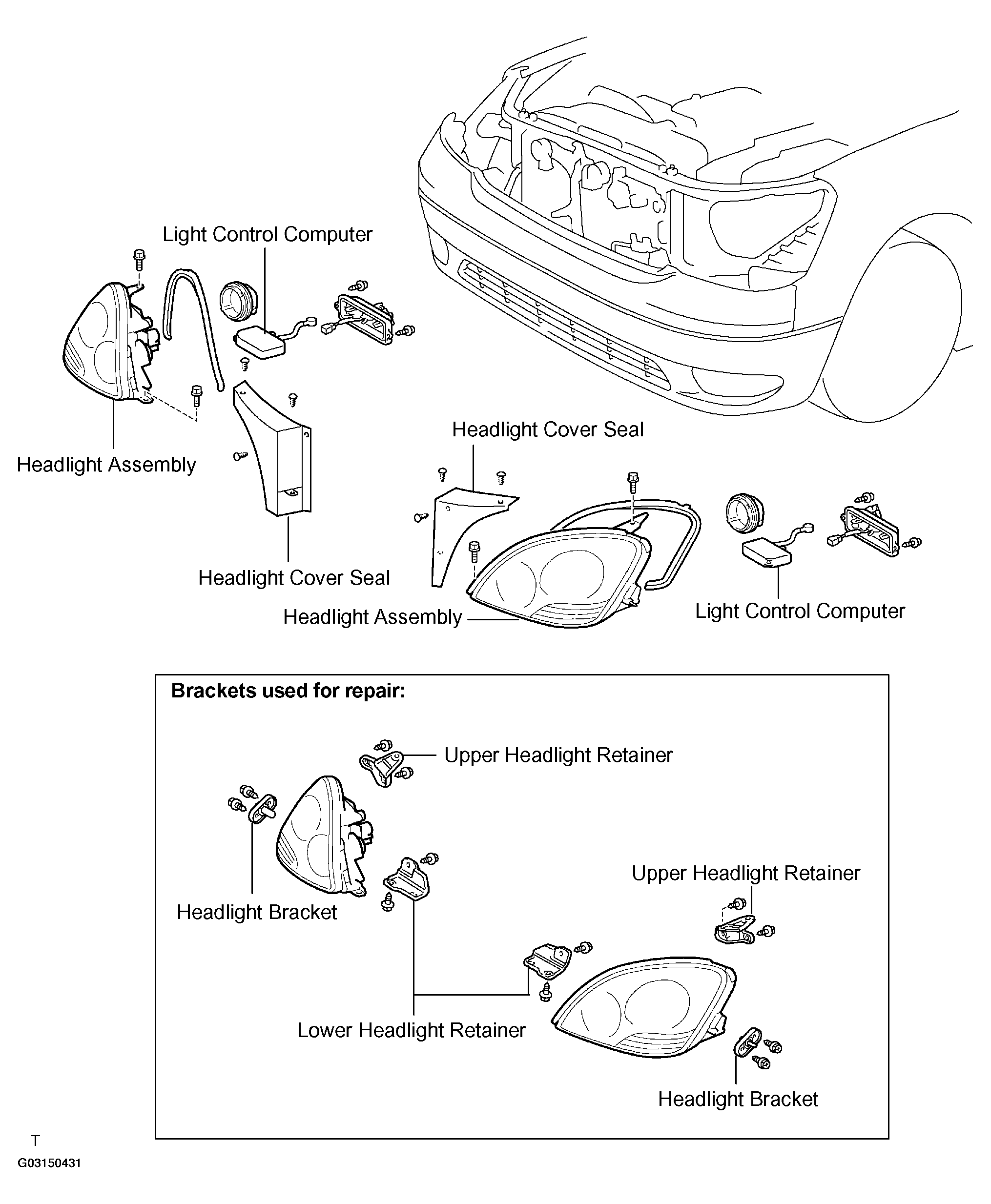

Fig 1: Exploded View Of Headlight Components
G03150431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
