Hood Lock Control: Installation

BEFORE INSTALLING PARTS, COAT LOCK WITH MP GREASE
Apply MP grease to the sliding surface of the lock.

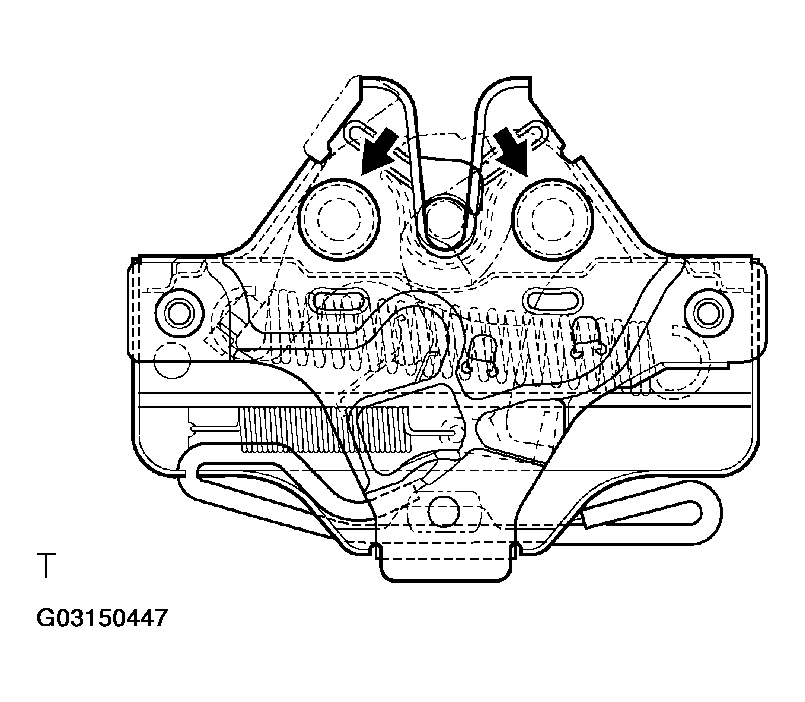

Fig 1: Identifying Sliding Surface Of Lock
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD LOCK CONTROL CABLE

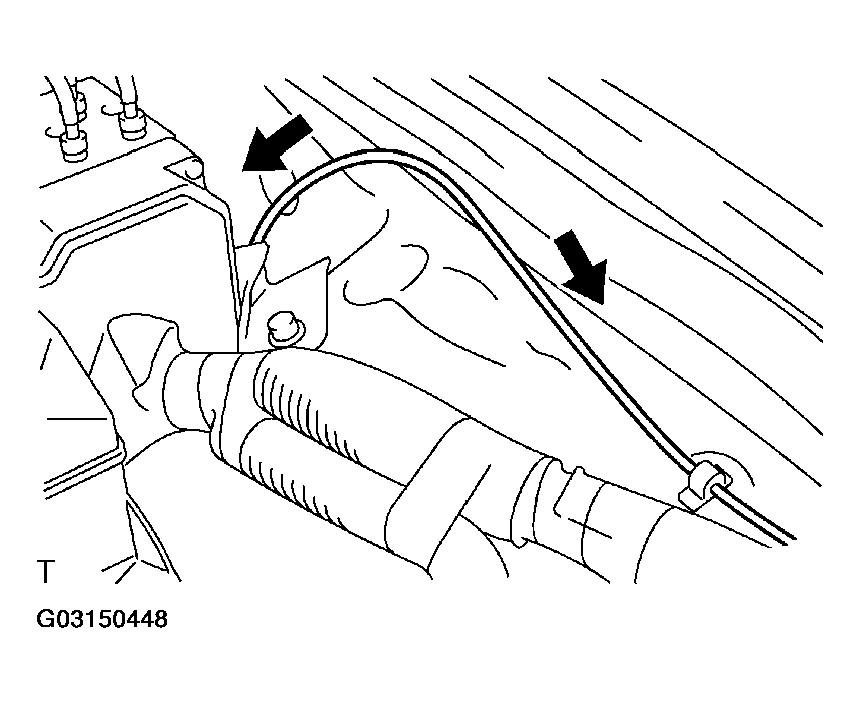

1. Pass the cable to engine room.

  Fig 2: Installing Hood Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

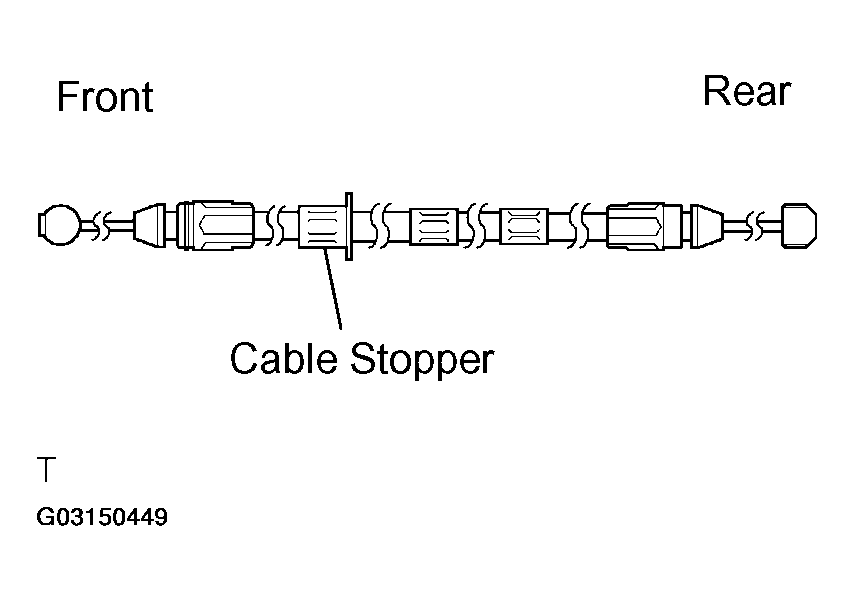

2. Pass the cable rear side through the grommet until the cable stopper is attached to the grommet.
3. Pass the cable front side through the upper radiator support.
  NOTE: Pass the cable to the upper of the VSC ECU bracket as shown in Fig 4.

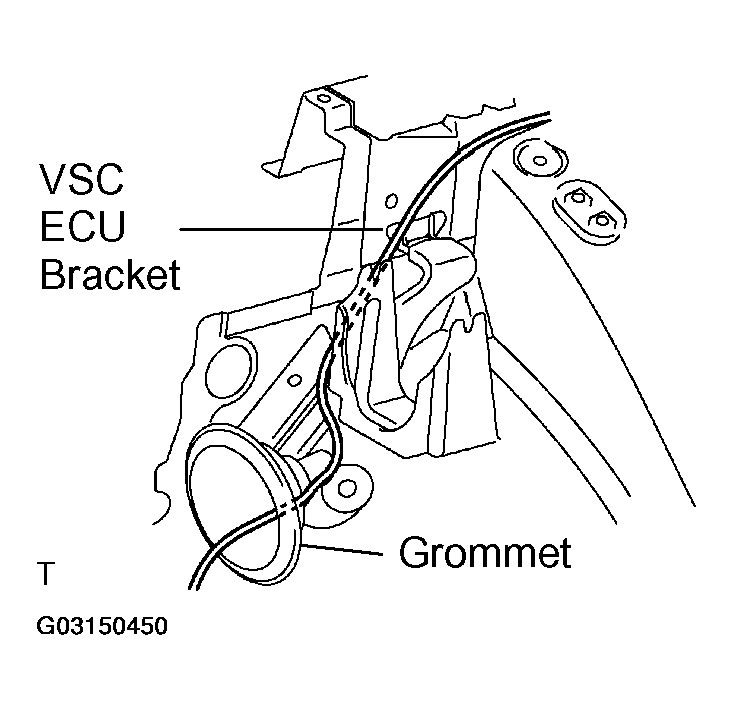

  Fig 4: Passing Cable To Upper VSC ECU Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

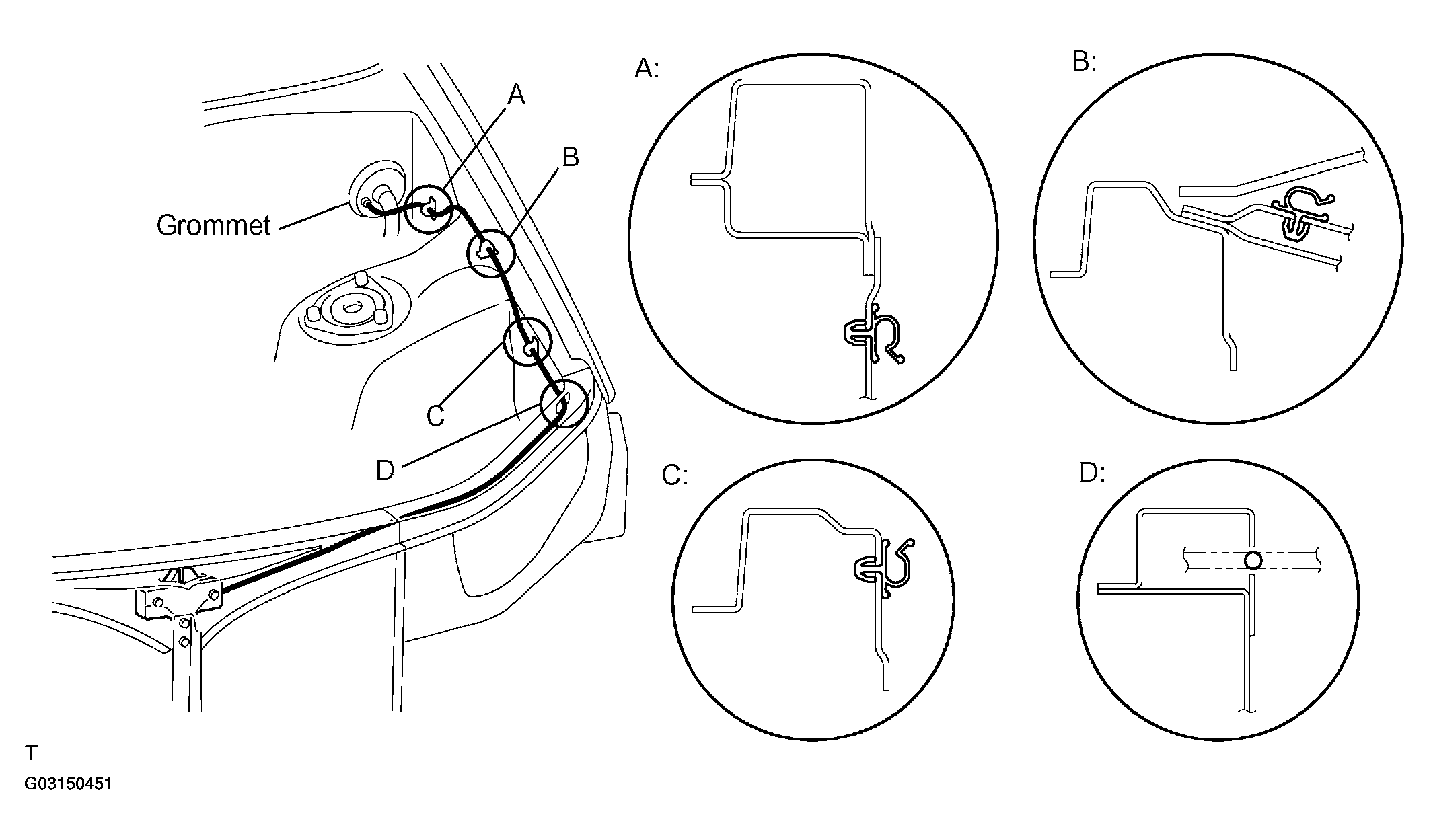

4. Connect the cable clamps as shown in Fig 5.

  Fig 5: Identifying Cable Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD LOCK
1. Connect the hood lock control cable.
2. Install the hood lock with the 2 bolts and nut.

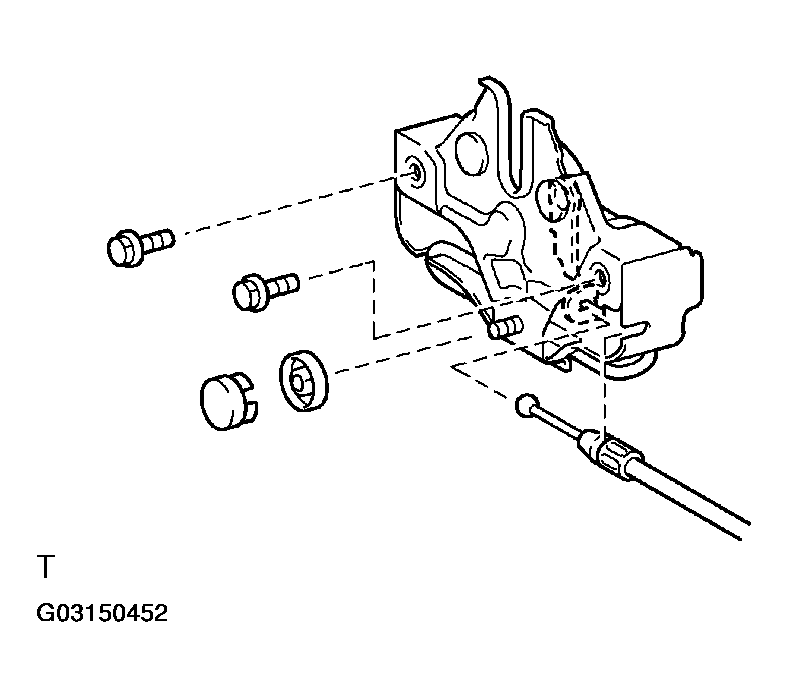

  Fig 6: Installing Hood Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
3. Install the cap.

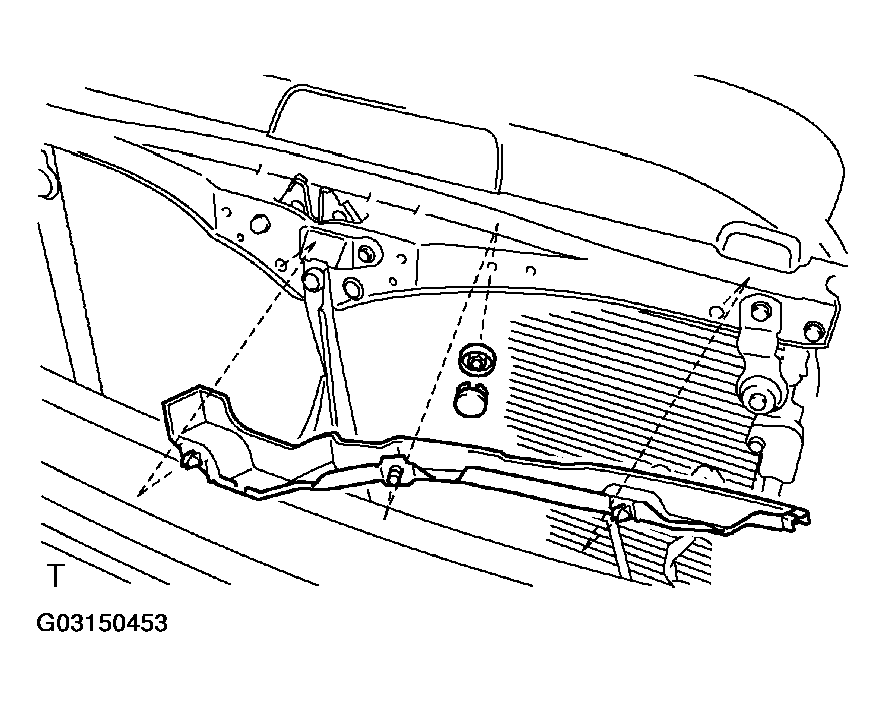

INSTALL HOOD LOCK CONTROL CABLE COVER
1. Install the hood lock control cable cover with the nut.
2. Install the cap.
INSTALL HOOD LOCK RELEASE LEVER

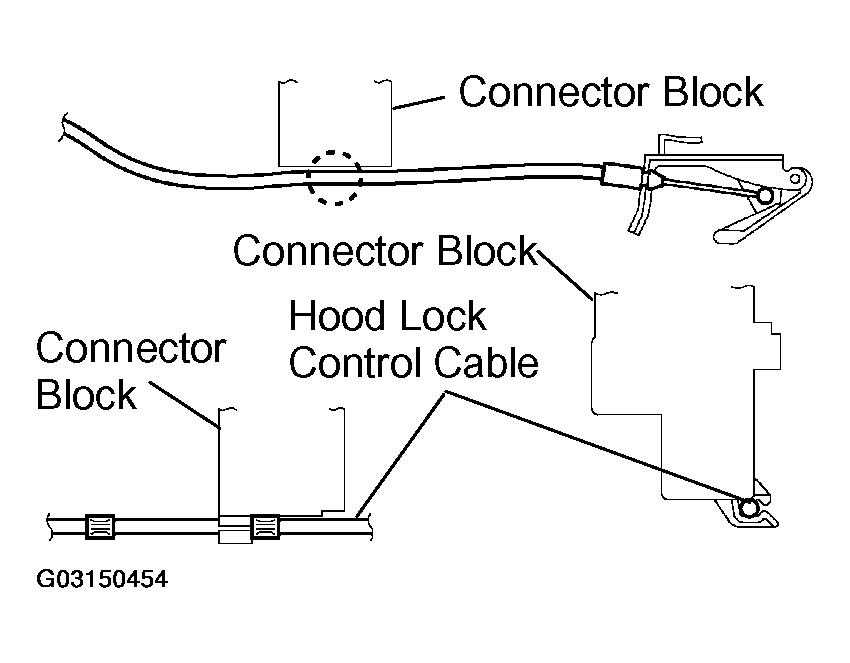

1. Connect the hood lock control cable as shown in Fig 8.
2. Connect the hood lock release lever with the 2 screws.
CHECK HOOD LOCK CONTROL FOR PROPER OPERATION
After checking for proper operation, tighten the 2 bolts and nut to install the lock.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
