Hood Lock Control: Removal

  1. REMOVE HOOD LOCK RELEASE LEVER
    1. Remove the 2 screws and disconnect the hood lock release lever.

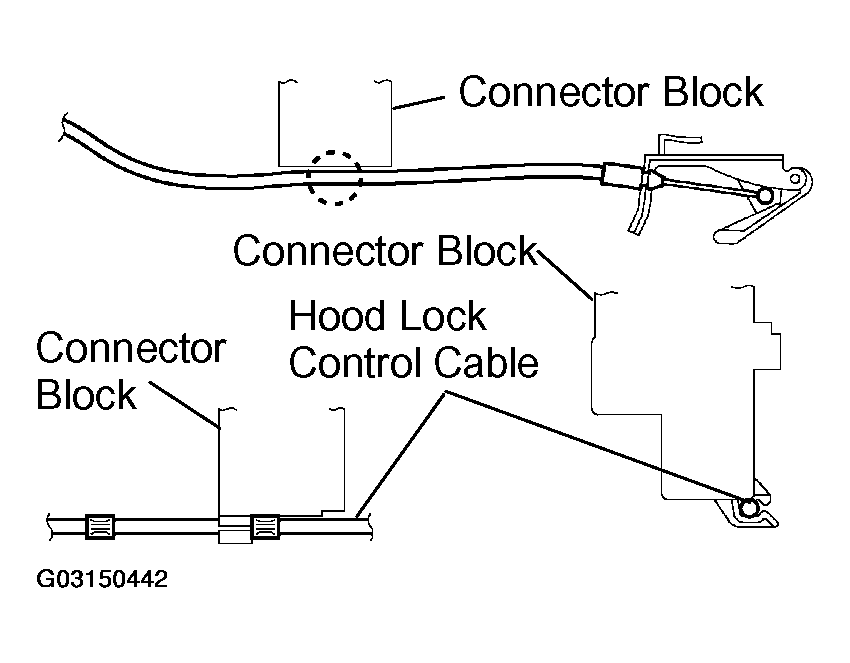

      2. Fig 1: Removing Hood Lock Release Lever
      G03150442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the hood lock control cable.
  2. REMOVE HOOD LOCK CONTROL CABLE COVER
    1. Using a screwdriver, remove the cap.
      NOTE: Tape the screwdriver tip before use.
    2. Remove the nut and hood lock control cable cover.
  3. REMOVE HOOD LOCK
    1. Using a screwdriver, remove the cap.
      NOTE: Tape the screwdriver tip before use.
    2. Remove the 2 bolts, nut and hood lock.

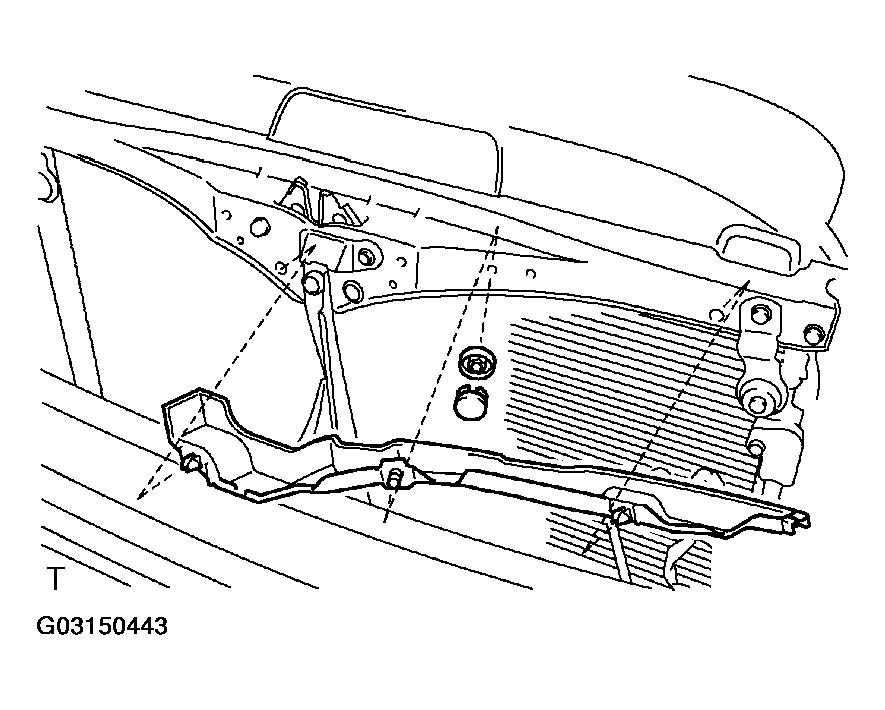

      Fig 2: Removing Hood Lock Control Cable Cover
      G03150443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the hood lock control cable.
  4. REMOVE HOOD LOCK CONTROL CABLE
    1. Using a screwdriver, disconnect the cable clamps as shown in Fig 4.
      NOTE: Tape the screwdriver tip before use.

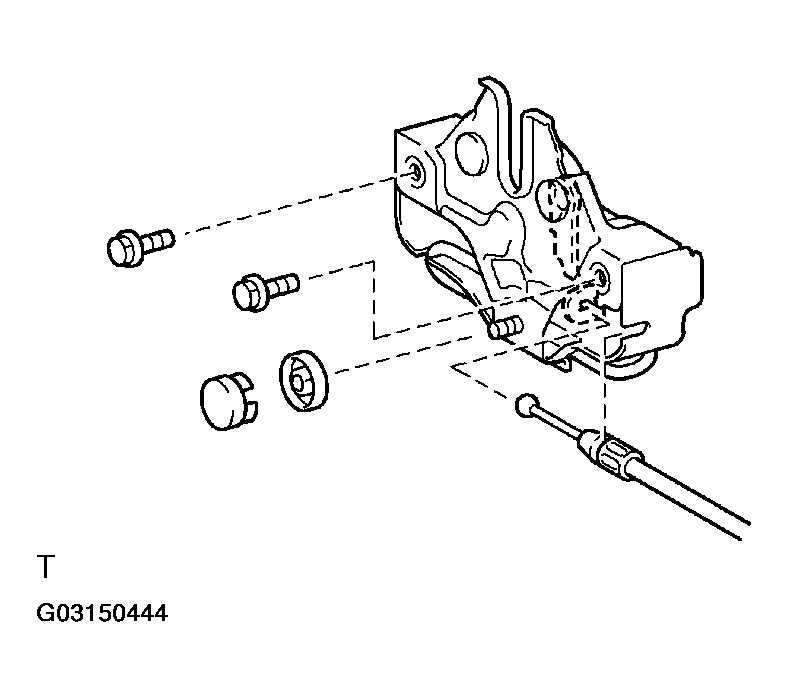

      Fig 3: Removing Hood Lock Control Cable
      G03150444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

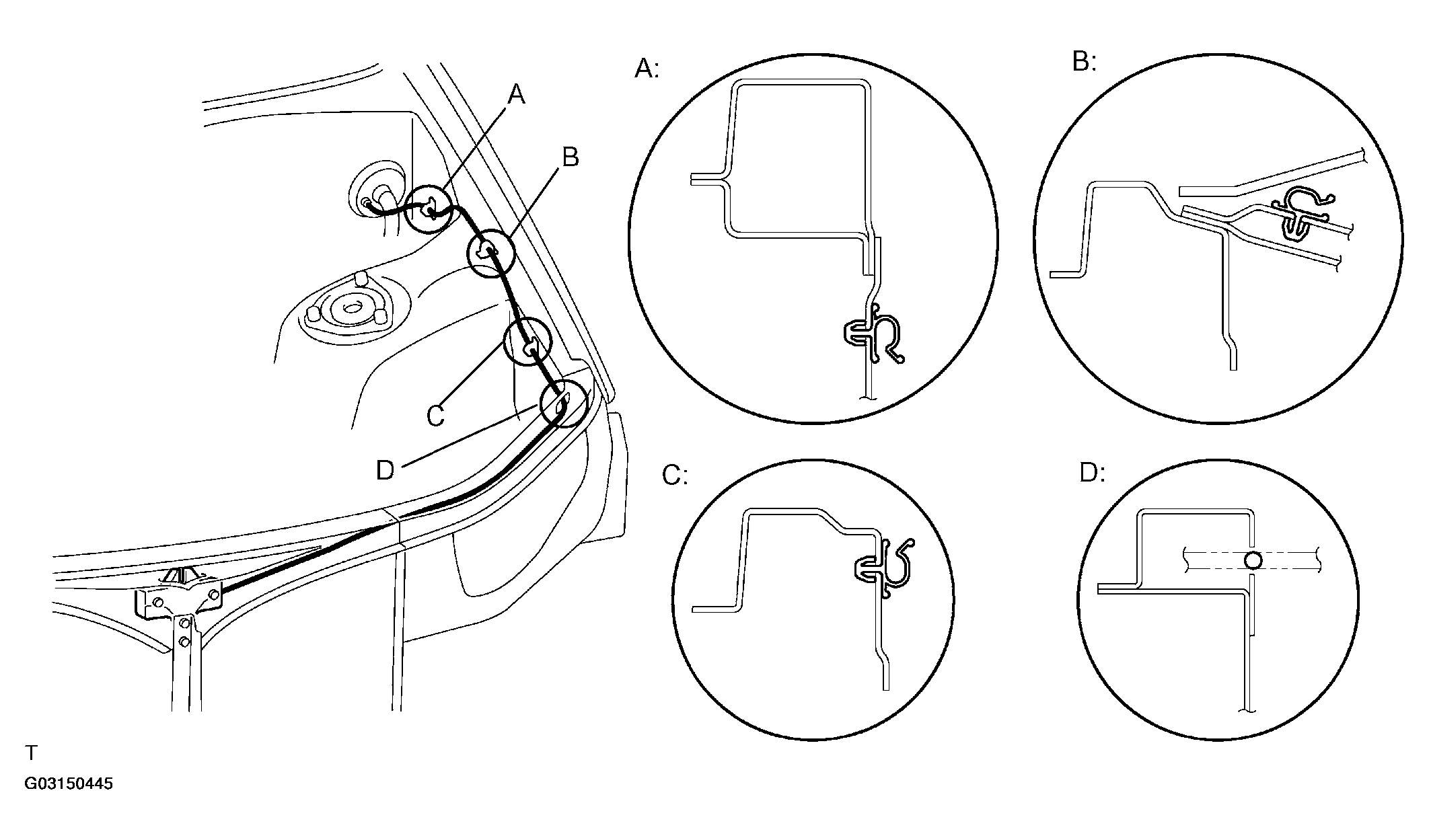

      Fig 4: Identifying Hood Lock Control Cable
      G03150445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the cable from the engine room to remove it.

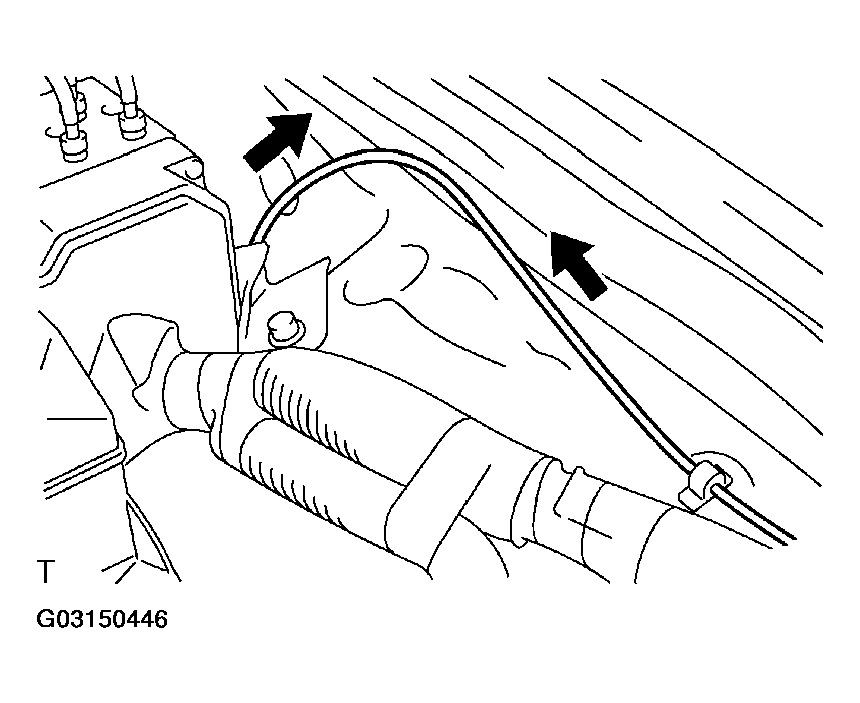

      Fig 5: Removing Cable From Engine Room
      G03150446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
