Ignition Switch And Key Unlock Warning Switch: Inspection

  1. INSPECT IGNITION SWITCH CONTINUITY

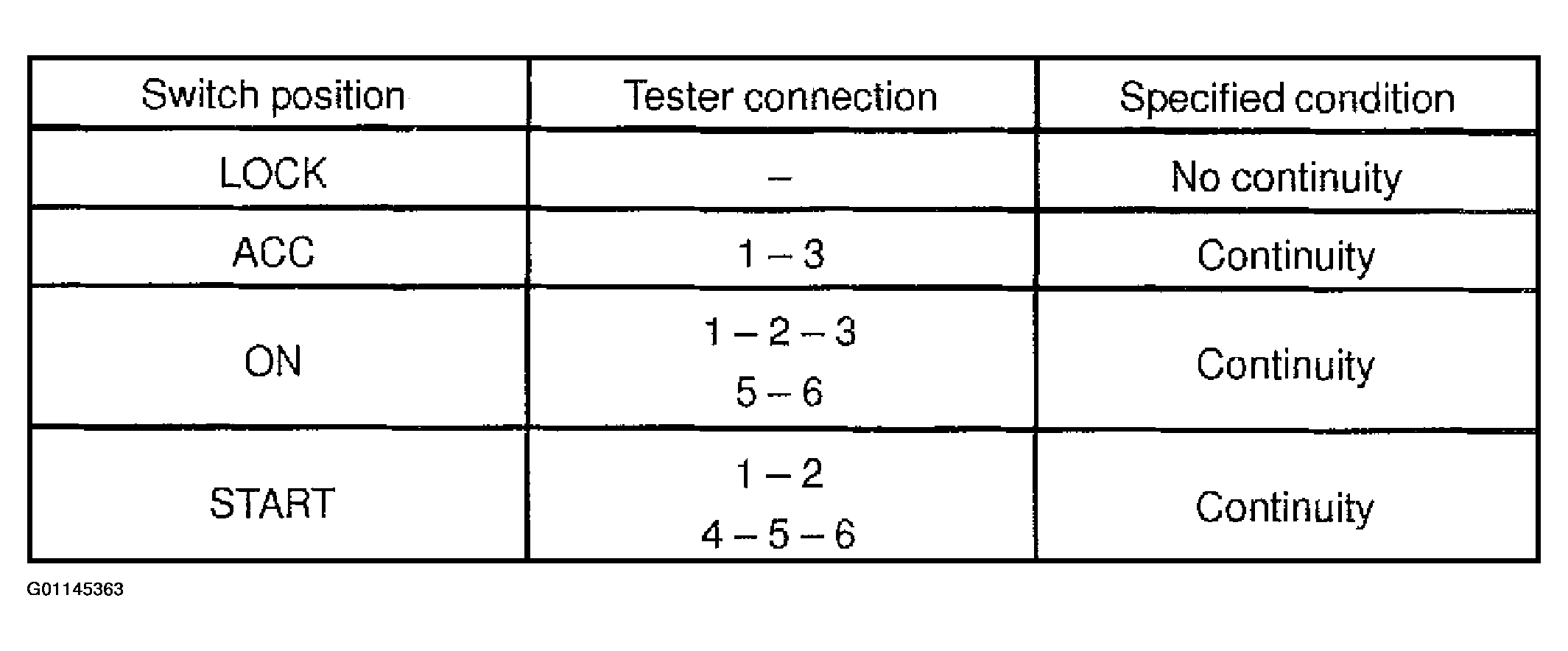

    Fig 1: Ignition Switch Connector Continuity Specifications
    G01145363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

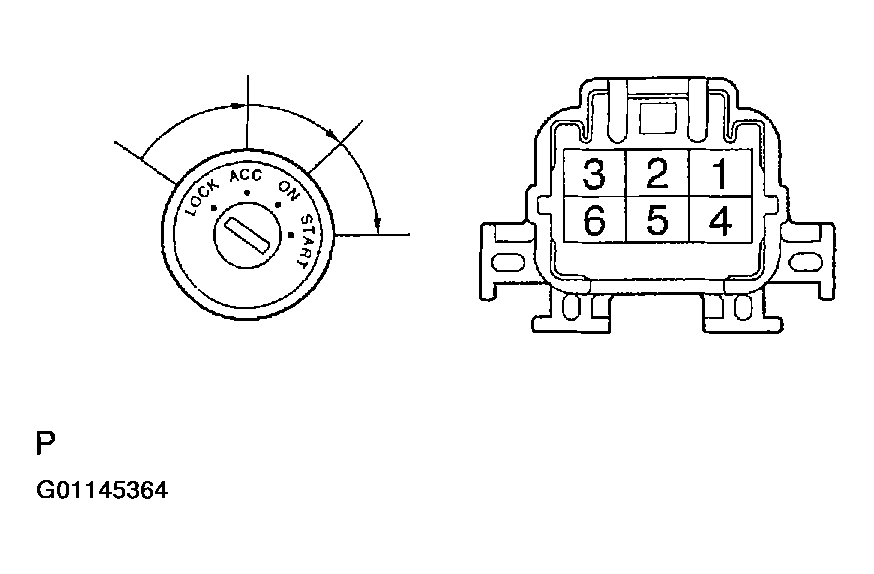

    Fig 2: Identifying Ignition Switch & Connector Terminals
    G01145364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT KEY UNLOCK WARNING SWITCH CONTINUITY

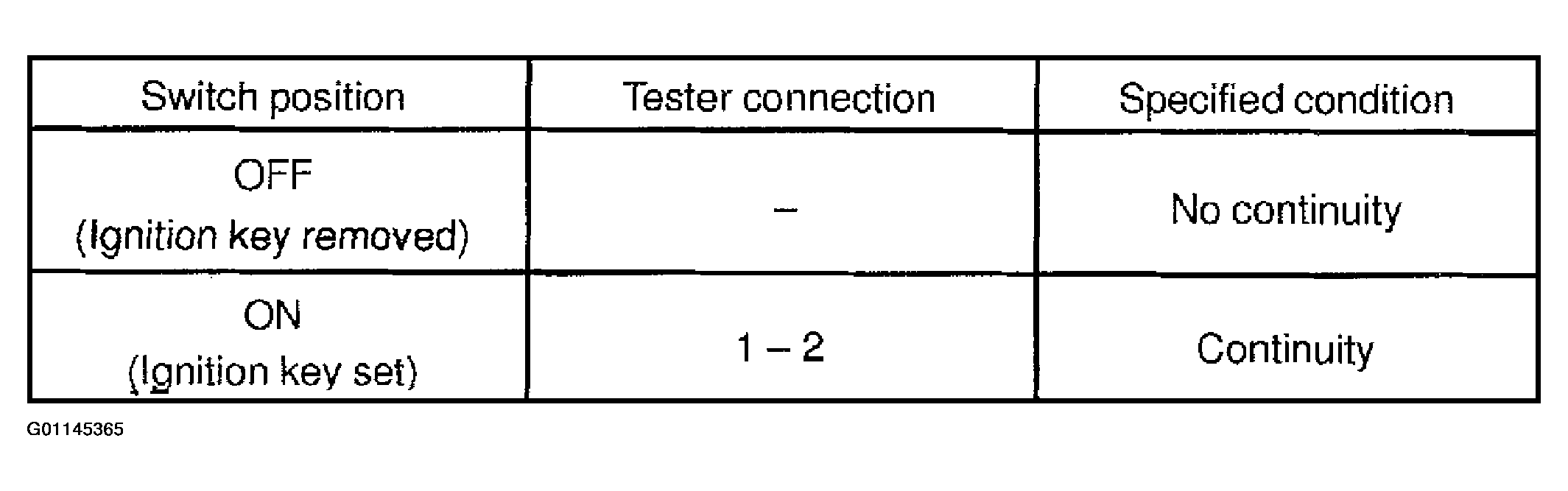

    Fig 3: Key Unlock Warning Switch Connector Continuity Specifications
    G01145365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

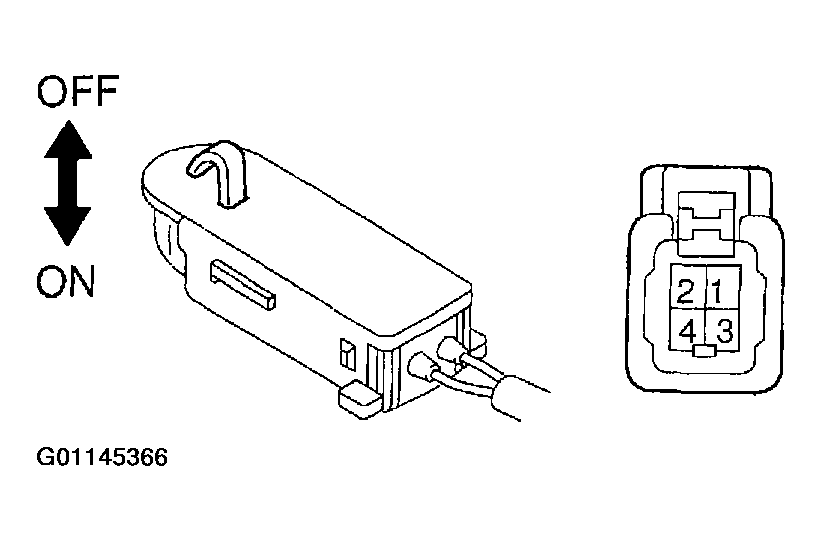

    Fig 4: Identifying Key Unlock Warning Switch & Connector Terminals
    G01145366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
