Home >> Lexus >> 2002 >> LS 430 >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Outside Rear View Mirror >> Components
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Outside Rear View Mirror: Components

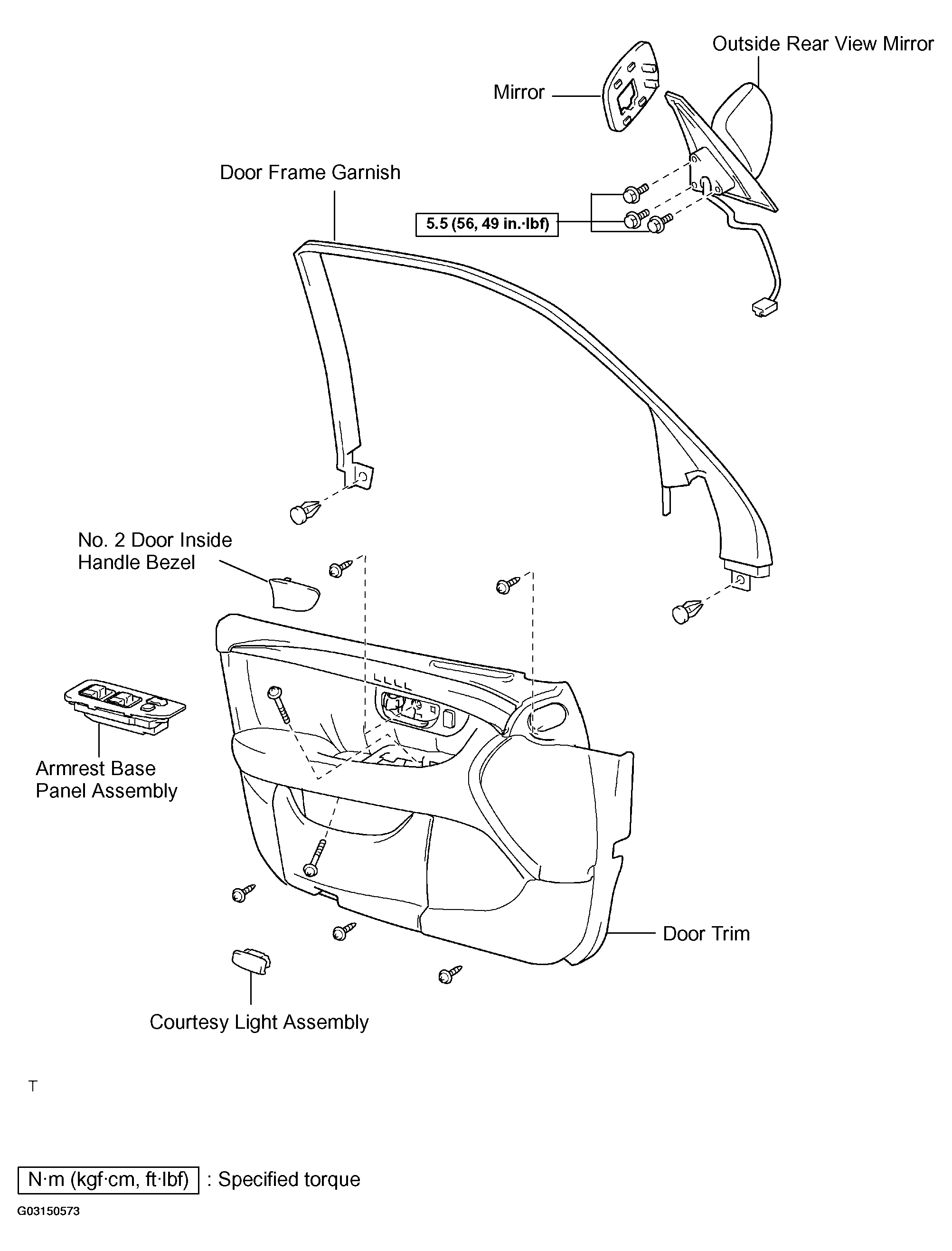

Fig 1: Identifying Components For Outside Rear View Mirror Removal
G03150573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
