Outside Rear View Mirror: Removal

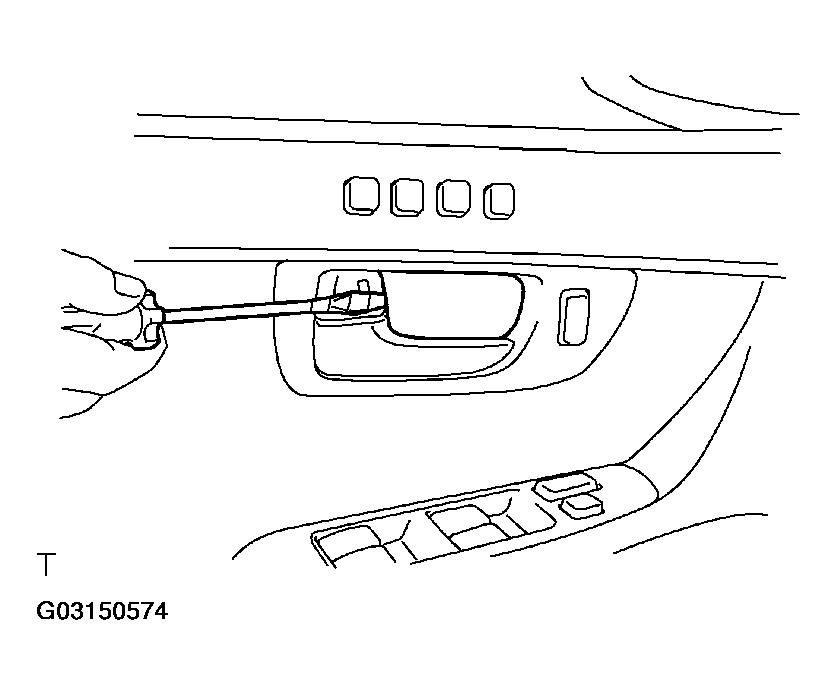

REMOVE NO. 2 DOOR INSIDE HANDLE BEZEL
Using a screwdriver, remove the No. 2 door inside handle bezel.

NOTE: Tape the screwdriver tip before use.

Fig 1: Removing No. 2 Door Inside Handle Bezel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

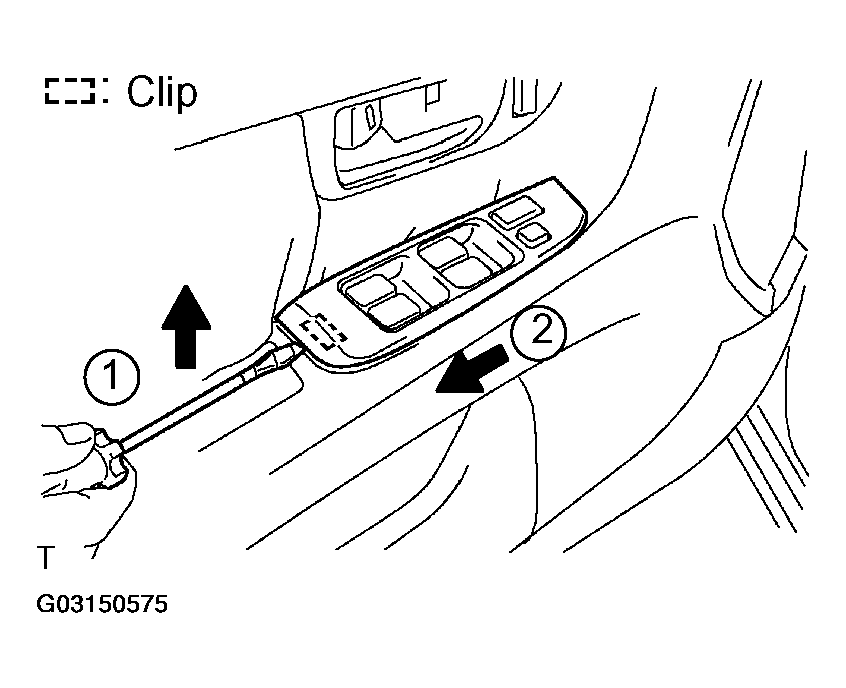

REMOVE ARMREST BASE PANEL ASSEMBLY
1. Using a screwdriver, pry the armrest base panel assembly out.
  HINT:

  Tape the screwdriver tip before use.
2. Disconnect the connector and remove the armrest base panel assembly.

  Fig 2: Removing Armrest Base Panel Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

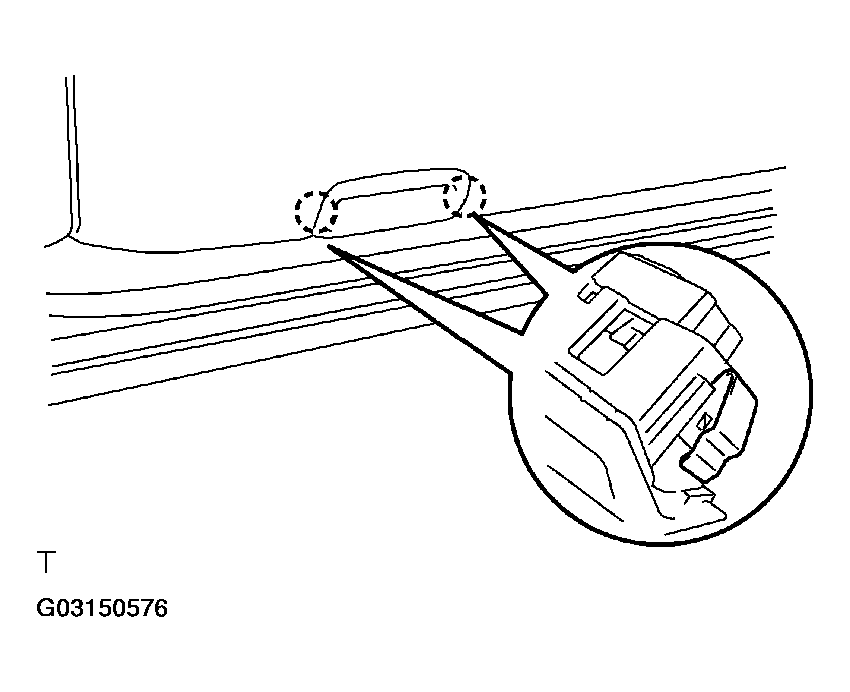

REMOVE COURTESY LIGHT ASSEMBLY
1. Using a screwdriver, pry the courtesy light assembly out.
2. Disconnect the connector and remove the courtesy light assembly.

  Fig 3: Removing Courtesy Light Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR TRIM

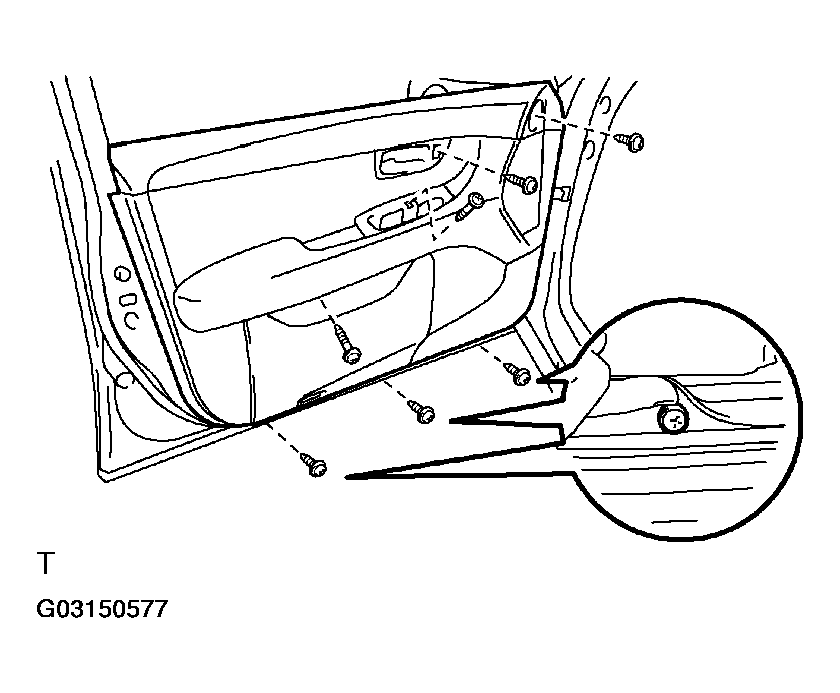

1. Remove the 7 screws.

  Fig 4: Removing Door Trim
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

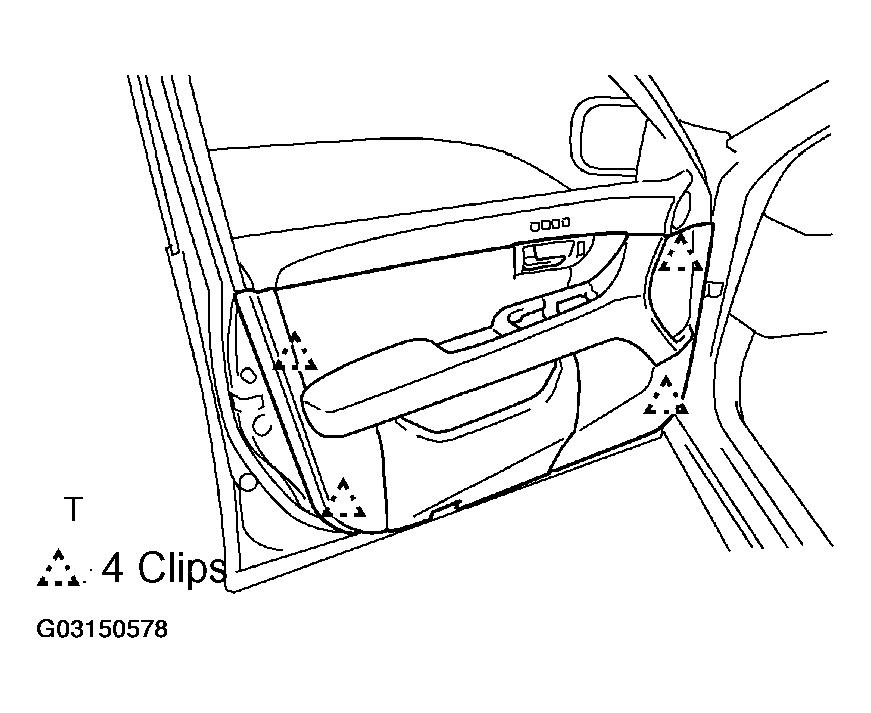

2. Using a screwdriver, disengage the clips, then pull the trim upward to remove it.
  NOTE: Tape the screwdriver tip before use.
3. Disconnect the connectors.

  Fig 5: Disconnecting Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

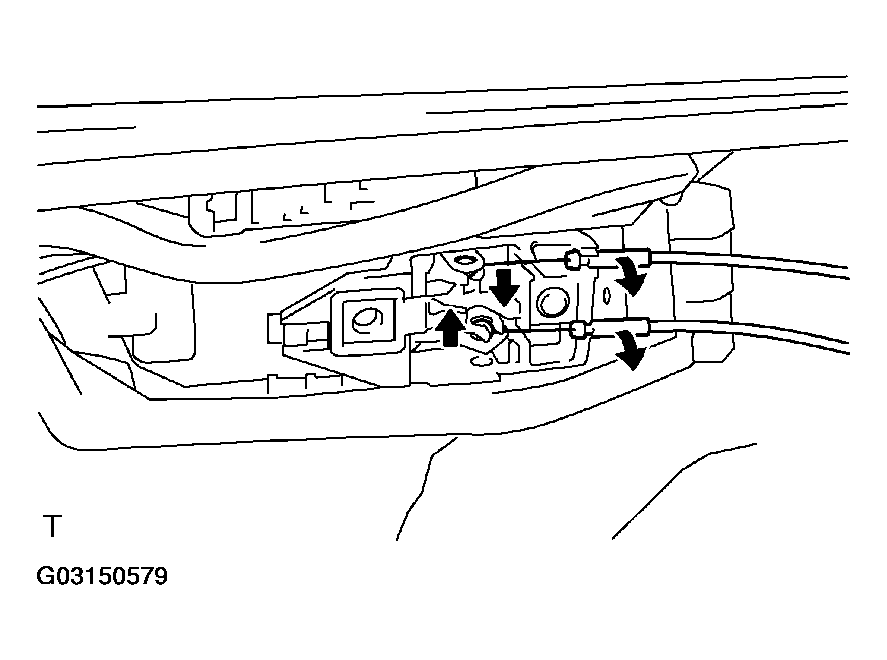

4. Disconnect the 2 cables from the inside handle and remove the door trim.

  Fig 6: Disconnecting Cables From Inside Door Handle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR FRAME GARNISH
Remove the 2 clips and door frame garnish.
REMOVE OUTSIDE REAR VIEW MIRROR
1. Disconnect the connector.
2. Remove the 3 bolts and outside rear view mirror.
