Outside Rear View Mirror: Replacement

IF NECESSARY, DISCONNECT MIRROR

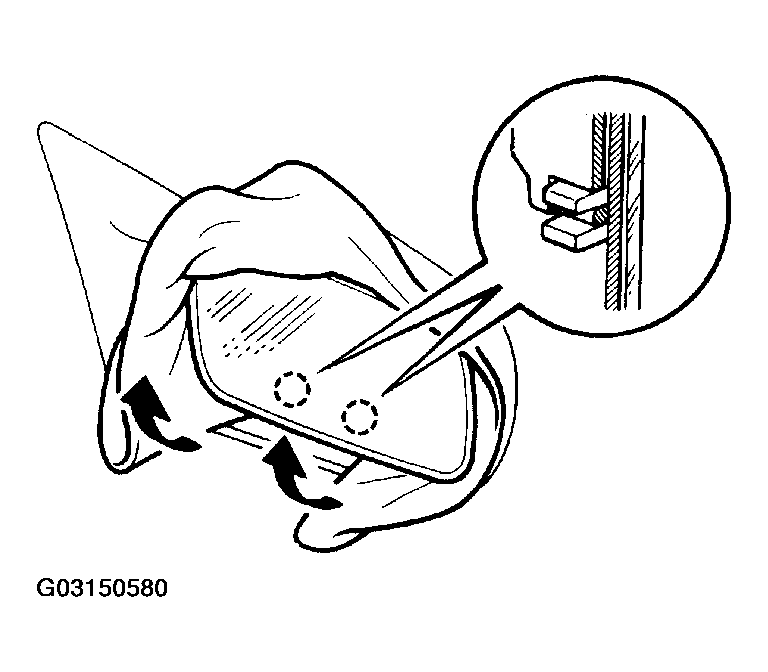

1. Insert the shop rag between the mirror and the mirror body to wrap up the mirror in the shop rag.
2. Pull up the lower side of the shop rag to disconnect the mirror joint.

  Fig 1: Disconnecting Mirror Joint
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

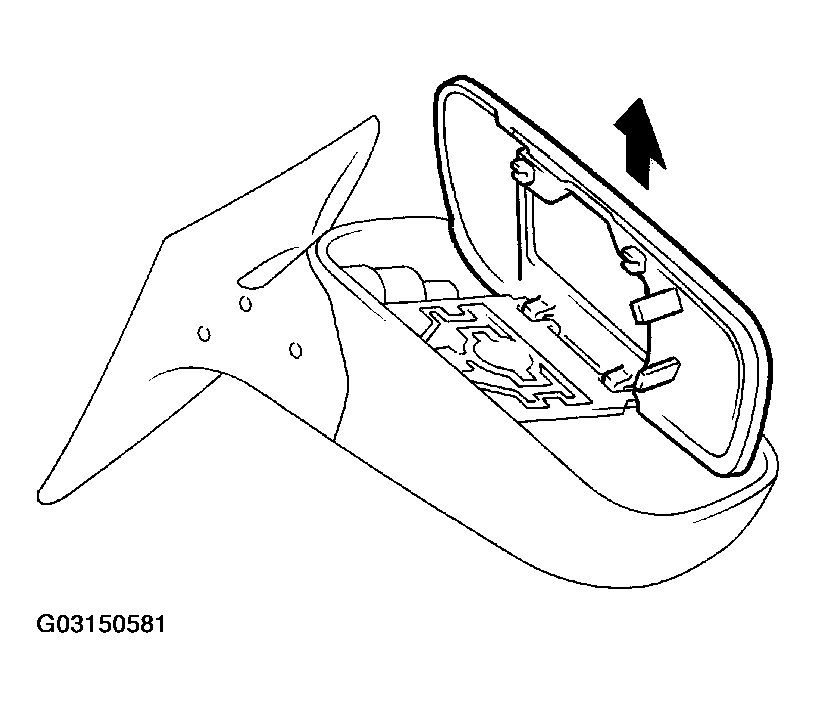

3. Pull up the mirror and disconnect it.

  Fig 2: Disconnecting Mirror
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

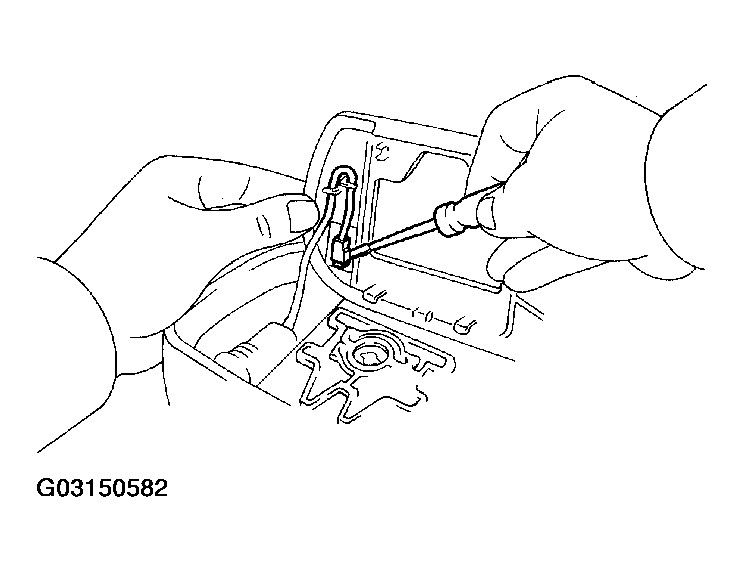

4. Disconnect the connector.

  Fig 3: Disconnecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT MIRROR

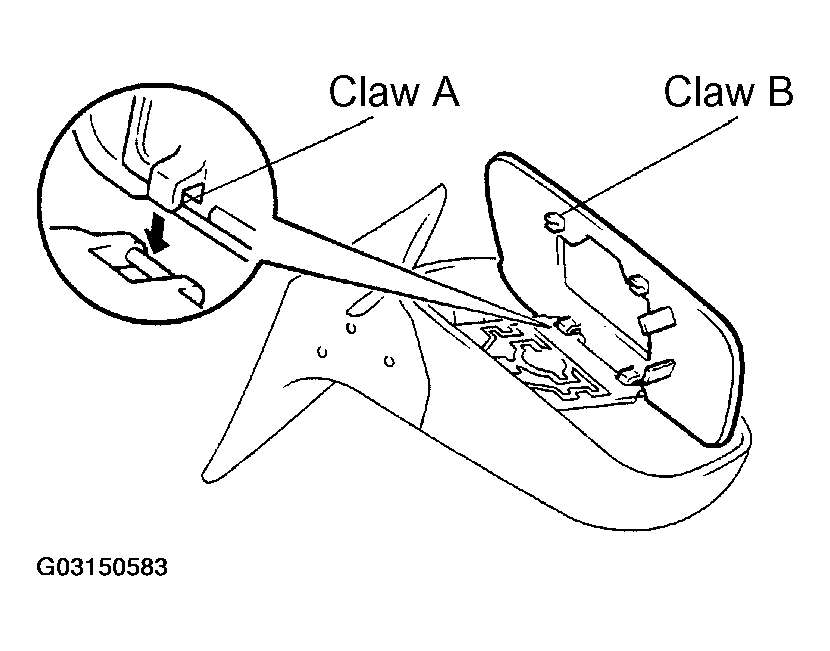

1. Connect the claws (A) and set the mirror to the mirror body.
2. Push the mirror to connect the claws (B) and connect it.

  Fig 4: Engaging Mirror Claws To Mirror Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
