Climate Control Seat System: Troubleshooting

  1. Climate control does not operate (Blinking pattern "1")

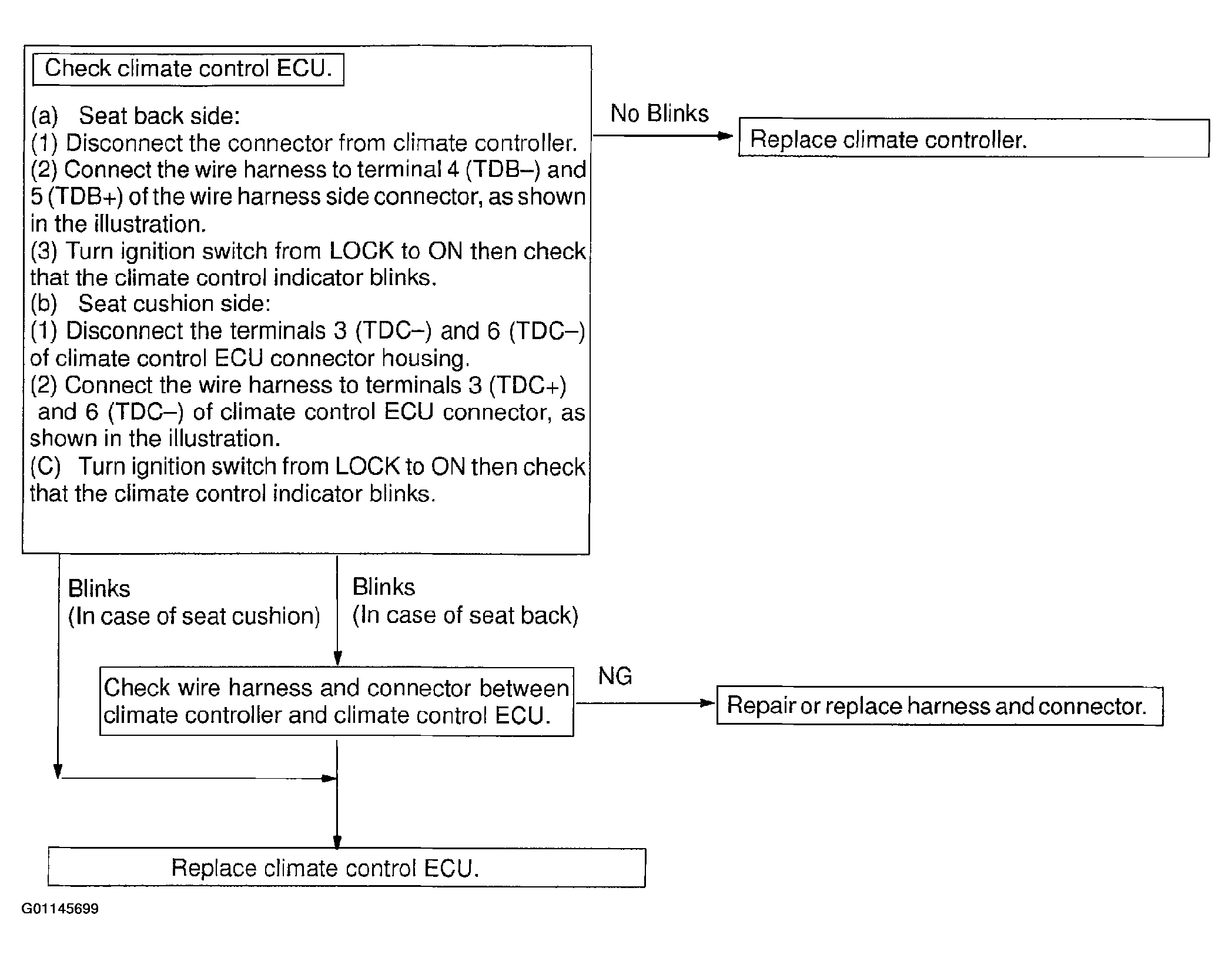

    Fig 1: Climate Control Does Not Operate (Blinking Pattern 1) Flow Chart
    G01145699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

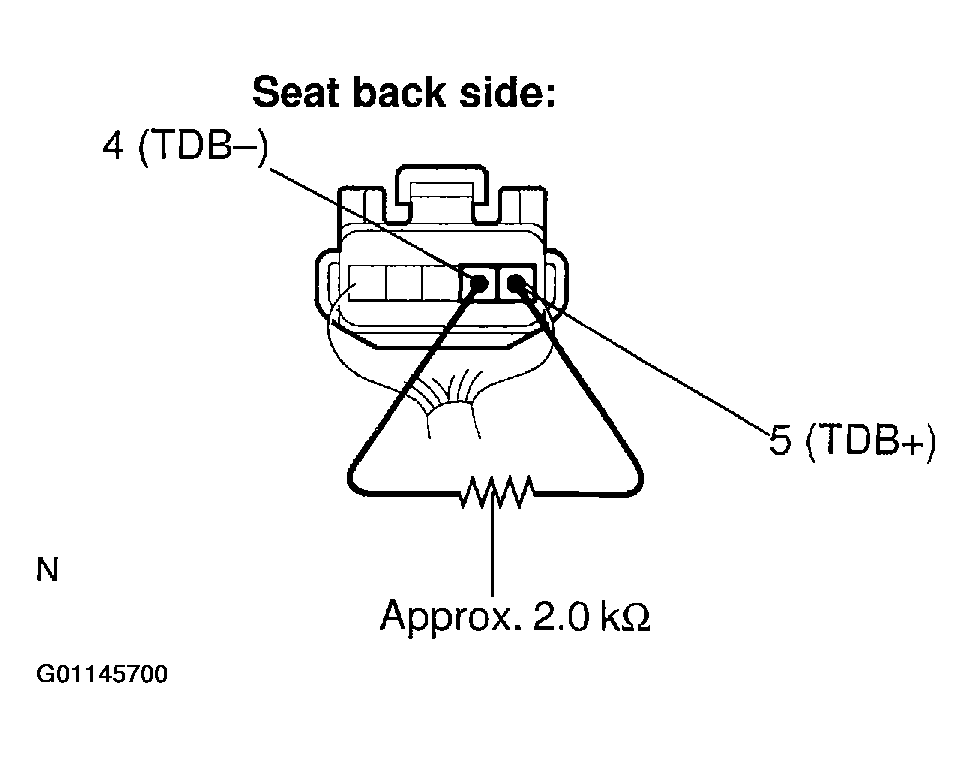

    Fig 2: Identifying Seat Back Side Connector
    G01145700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

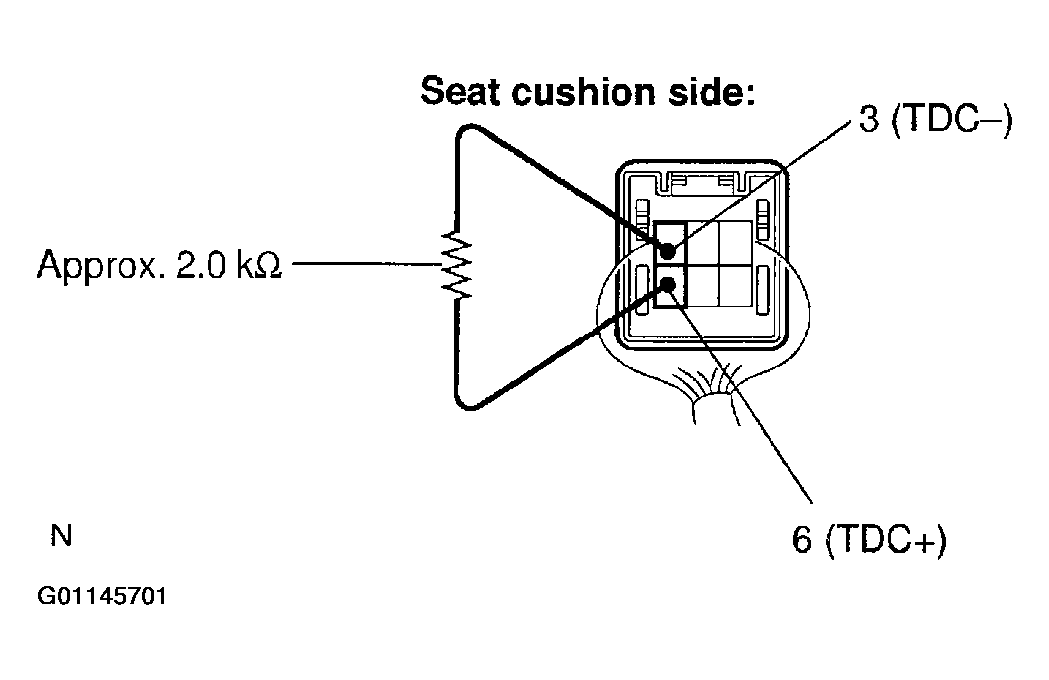

    Fig 3: Identifying Seat Cushion Side Connector
    G01145701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Climate control does not operate (Blinking pattern "2")

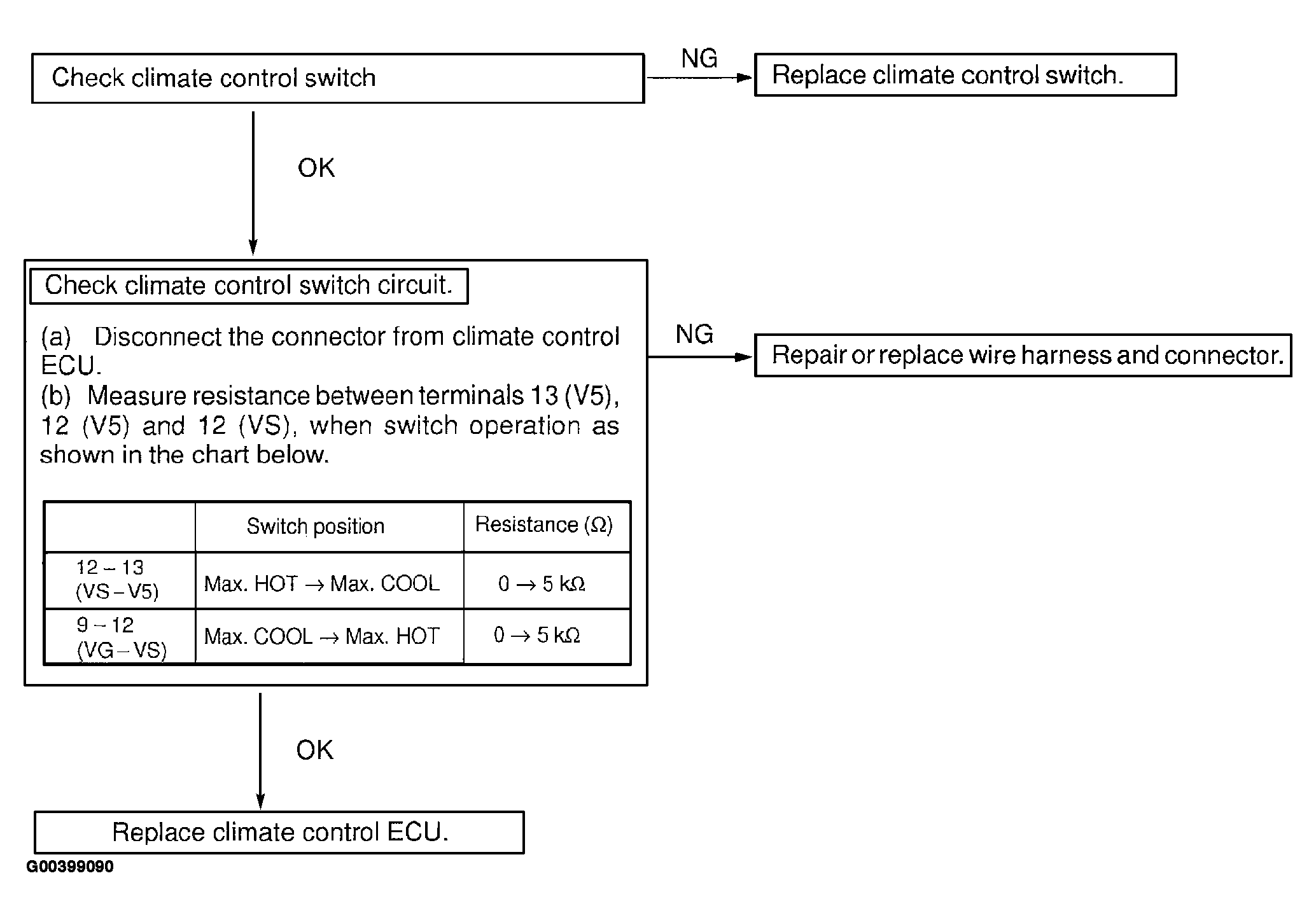

    Fig 4: Climate Control Does Not Operate (Blinking Pattern "2") Flow Chart
    G00399090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Climate control does not operate (Blinking pattern "3")

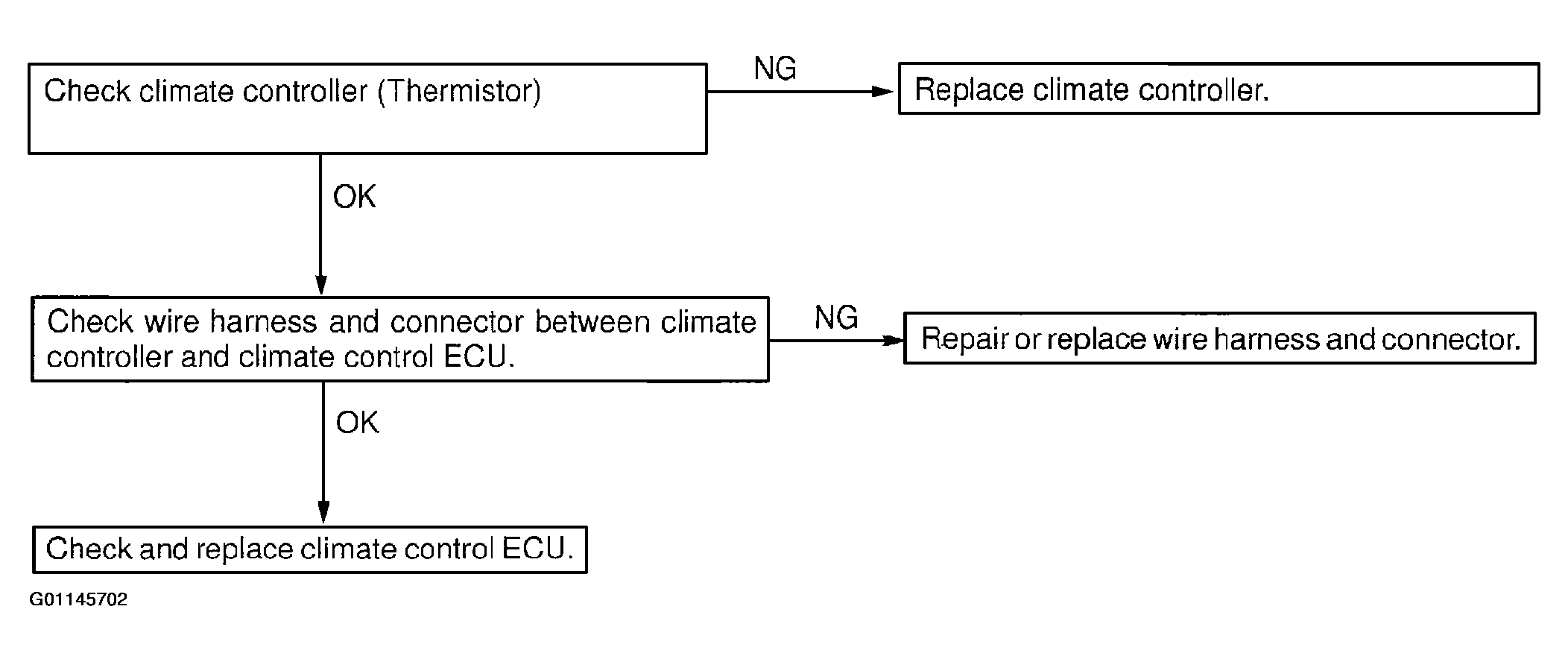

    Fig 5: Climate Control Does Not Operate (Blinking Pattern 3) Flow Chart
    G01145702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Climate control does not operate (Blinking pattern "4")

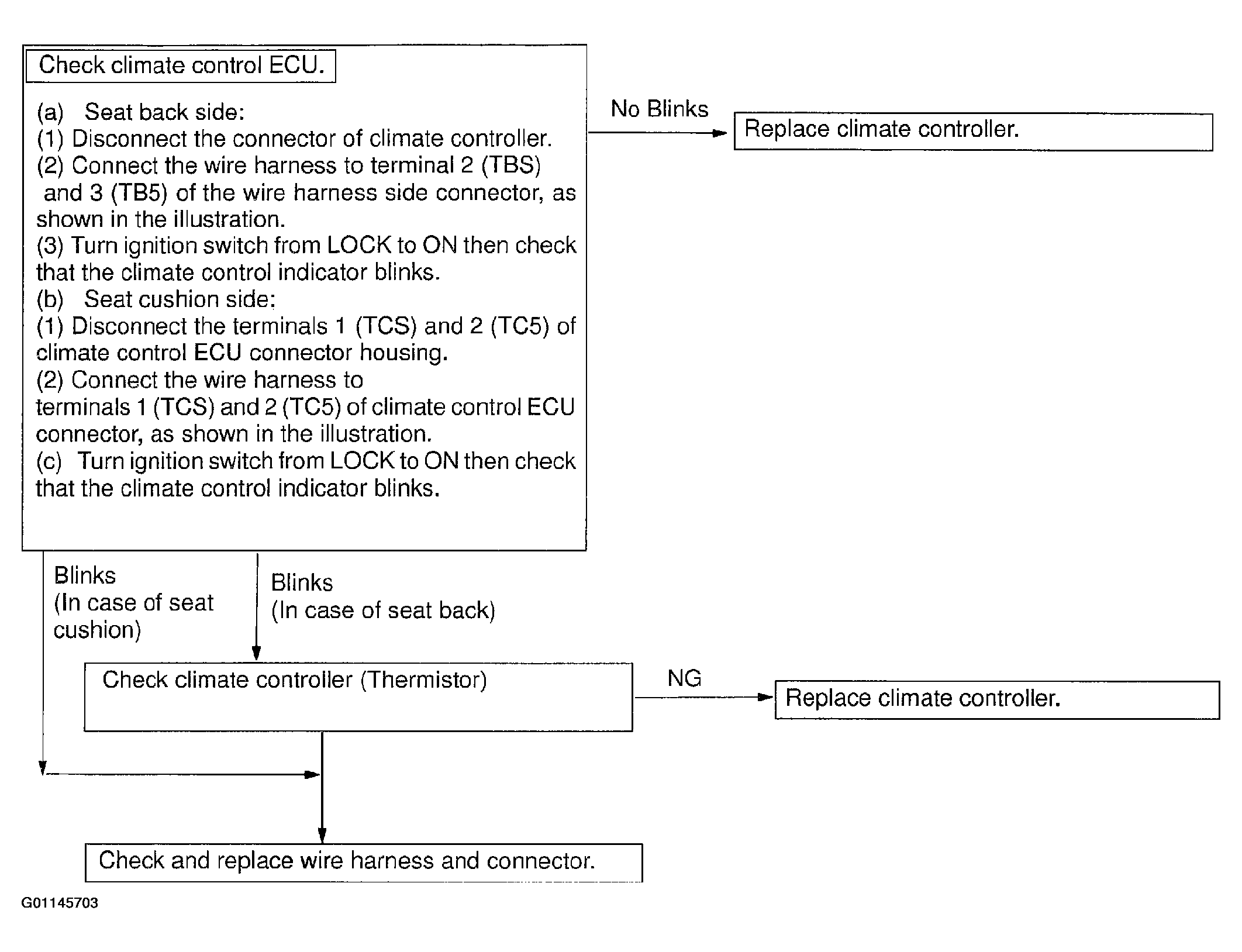

    Fig 6: Climate Control Does Not Operate (Blinking Pattern 4) Flow Chart
    G01145703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

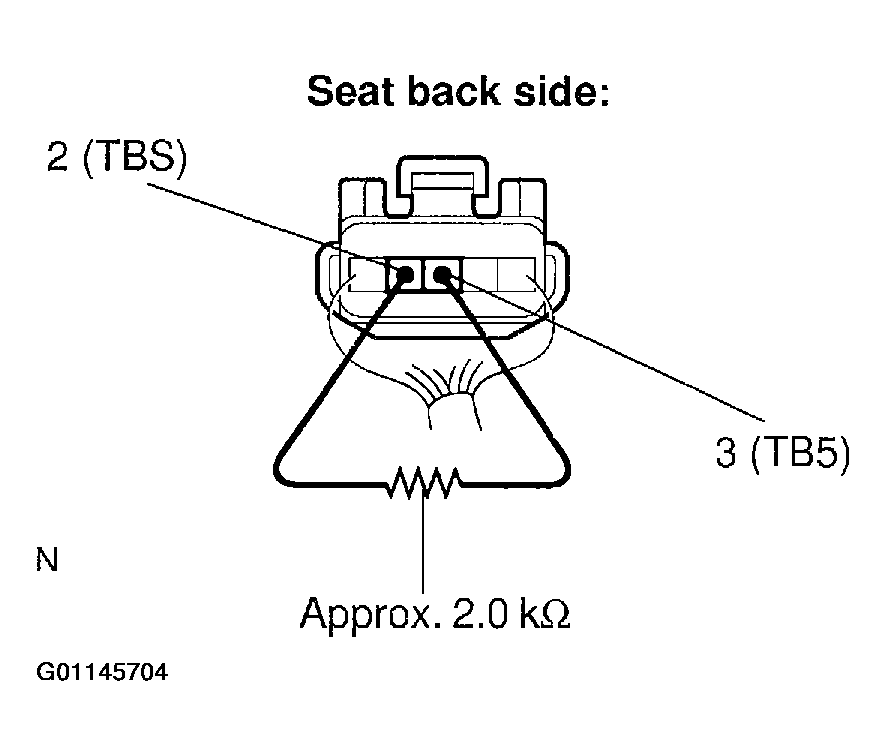

    Fig 7: Identifying Seat Back Side Connector
    G01145704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

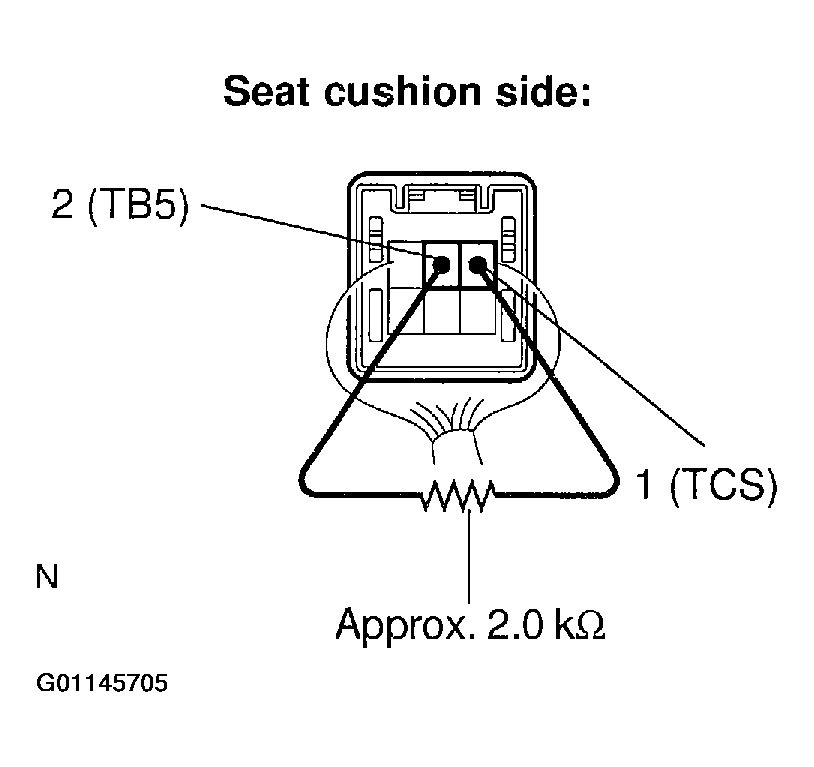

    Fig 8: Identifying Seat Cushion Side Connector
    G01145705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. No cool air comes out, No warm air comes out

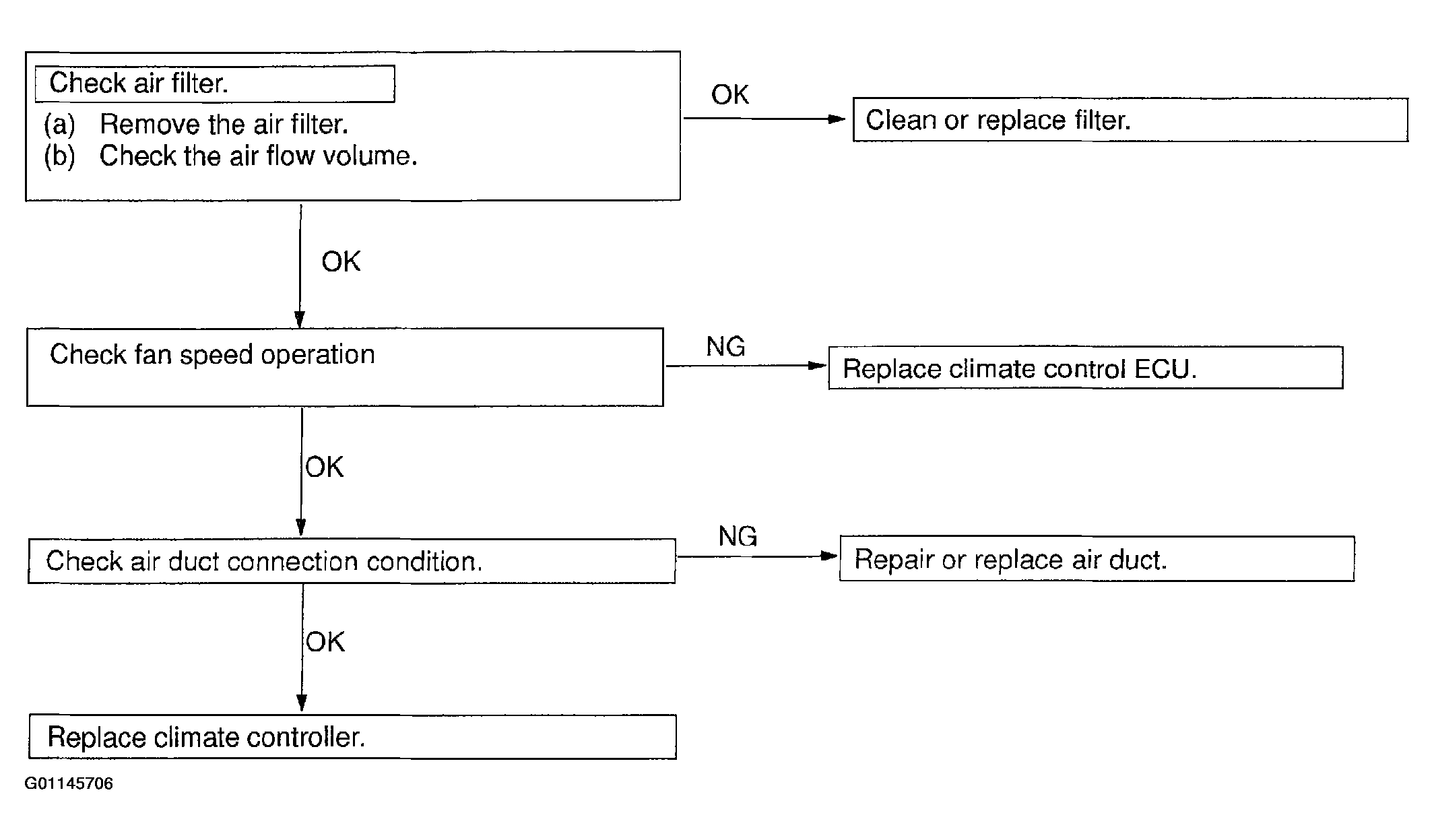

    Fig 9: No Cool Air Comes Out, No Warm Air Comes Out Flow Chart
    G01145706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
