Front Seat: Removal

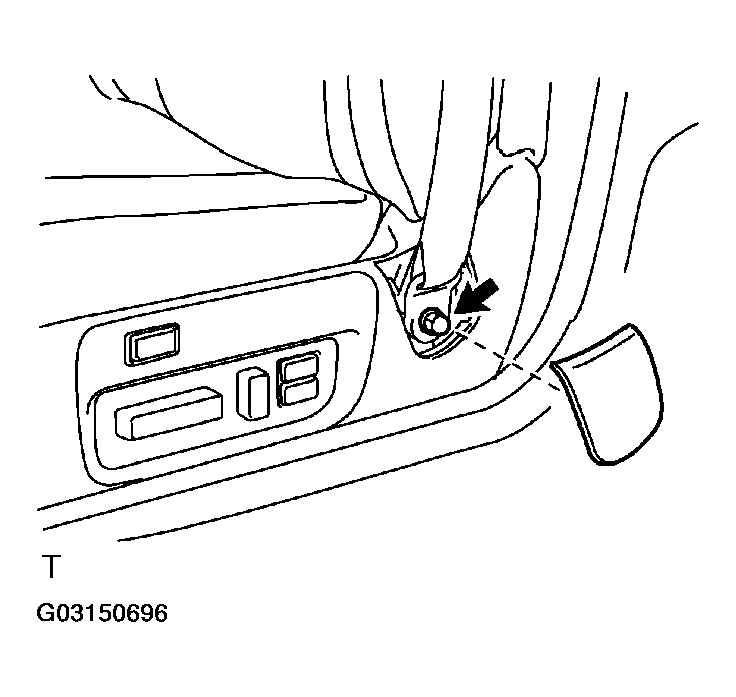

1. Using a screwdriver, remove the seat belt anchor cover cap.

   HINT:

   Tape the screwdriver tip before use.

2. Remove the front seat outer belt anchor.

   Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

Using a screwdriver, pry out the 4 covers.

Fig 1: Removing Front Seat

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Tape the screwdriver tip before use.

1. Remove the 4 bolts.

   Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)

2. Disconnect the connectors.
