Oil Pump: Reassembly

Install drive and driven rotors.
1. Place the drive and driven rotors into pump body with the marks facing the pump body cover side.

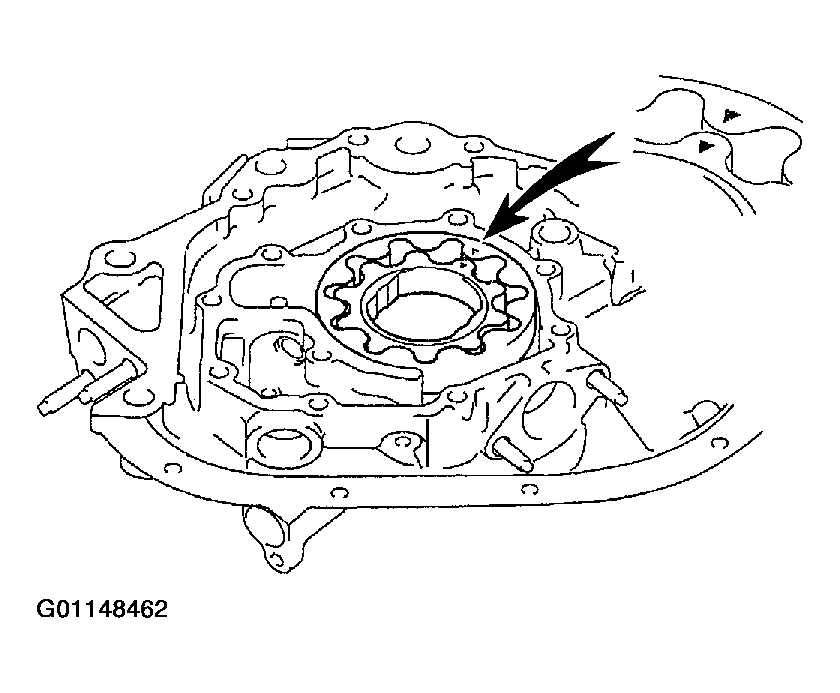

  Fig 1: Aligning Marks Of Drive & Driven Rotors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the pump body cover with the 10 screws.
  Torque: 10 N.m (105 kgf.cm, 7 ft.lbf)

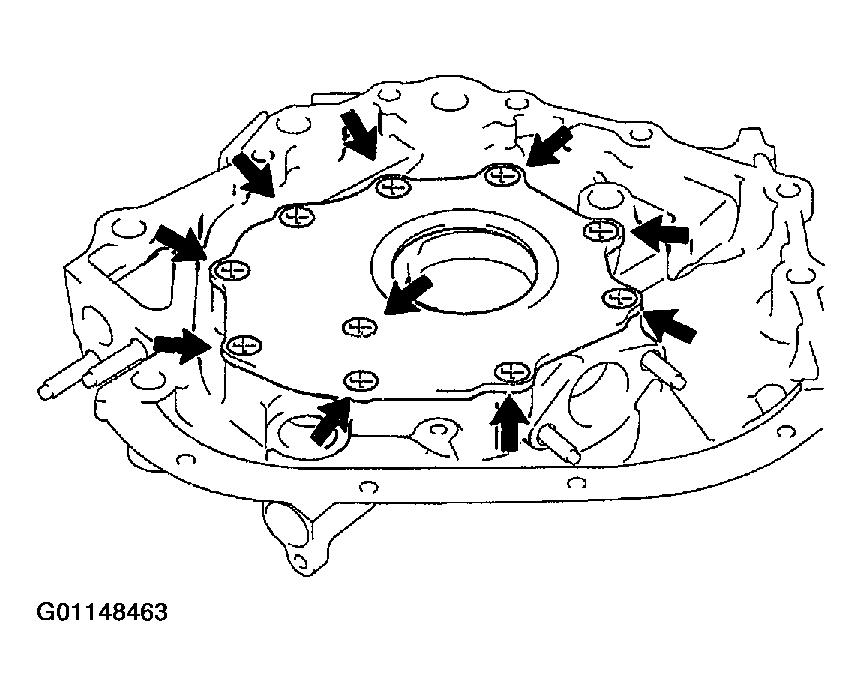

  Fig 2: Locating Screws For Installation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install relief valve.
1. Insert the relief valve and compression spring into the oil pump body hole.
2. Install the plug.
  Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

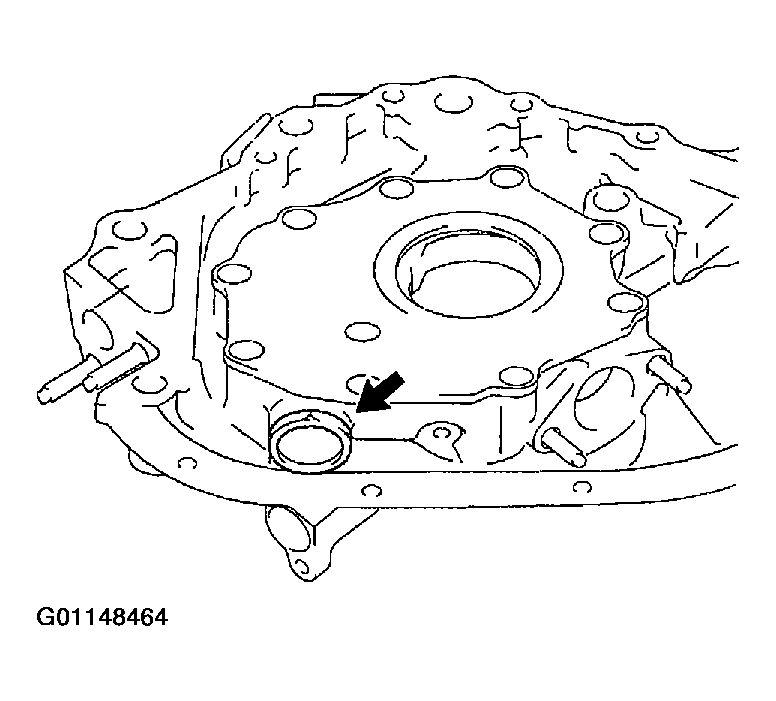

  Fig 3: Locating Plug For Installation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
