Blower Unit: Disassembly

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE AIR REFINER FILTER
  2. REMOVE BLOWER MOTOR
  3. REMOVE A/C ECU

    Remove the 3 screws and A/C ECU.

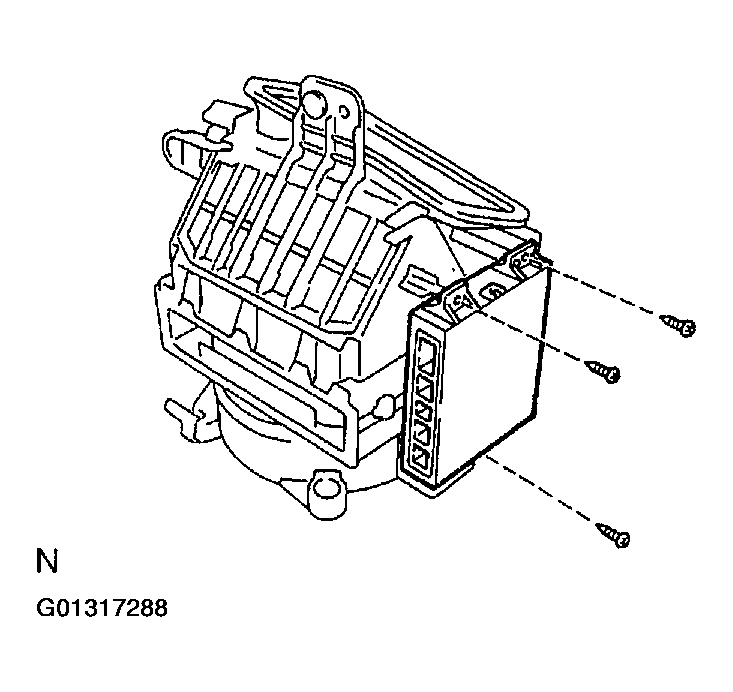

    Fig 1: Removing A/C ECU
    G01317288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE AIR INLET SERVOMOTOR

    Remove the 3 screws and the inlet servomotor.

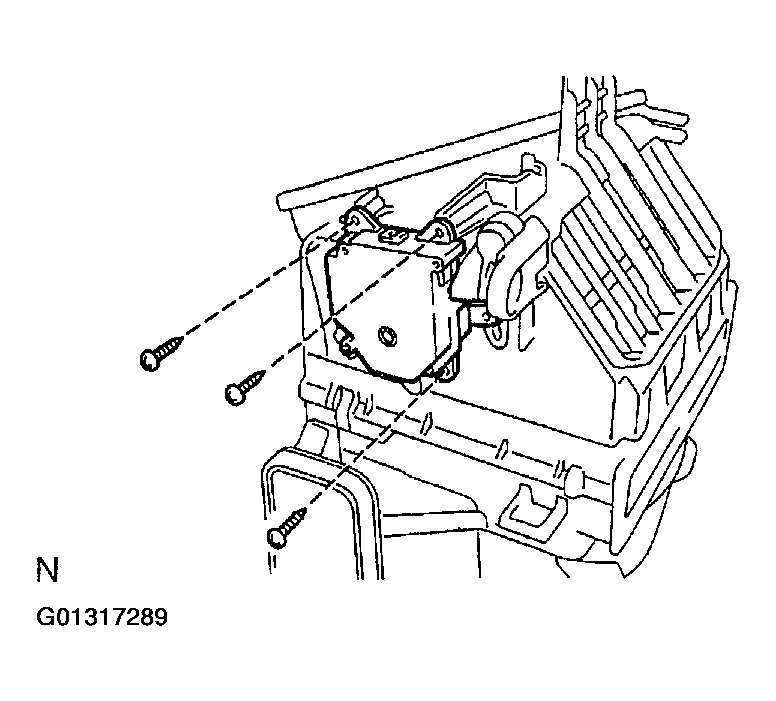

    Fig 2: Removing Air Inlet Servomotor
    G01317289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
