Duct Sensor: Inspection

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. Driver side: REMOVE COMBINATION METER (See  INSTRUMENT PANEL  ).
  2. Passenger side: REMOVE FINISH PANEL ASSEMBLY (See  INSTRUMENT PANEL  ).
  3. REMOVE SENSOR
    1. Disconnect the 2 connectors.
    2. Remove the 2 sensors.
  4. Drive side: INSPECT DUCT SENSOR CIRCUIT (See  DTC B1415/15: AIR DUCT SENSOR CIRCUIT (DRIVER SIDE)  ).
  5. Passenger side: INSPECT DUCT SENSOR CIRCUIT (See  DTC B1416/16: AIR DUCT SENSOR CIRCUIT (PASSENGER SIDE)  .)
  6. INSTALL SENSOR
  7. Driver side: INSTALL COMBINATION METER
  8. Passenger side: INSTALL FINISH PANEL ASSEMBLY

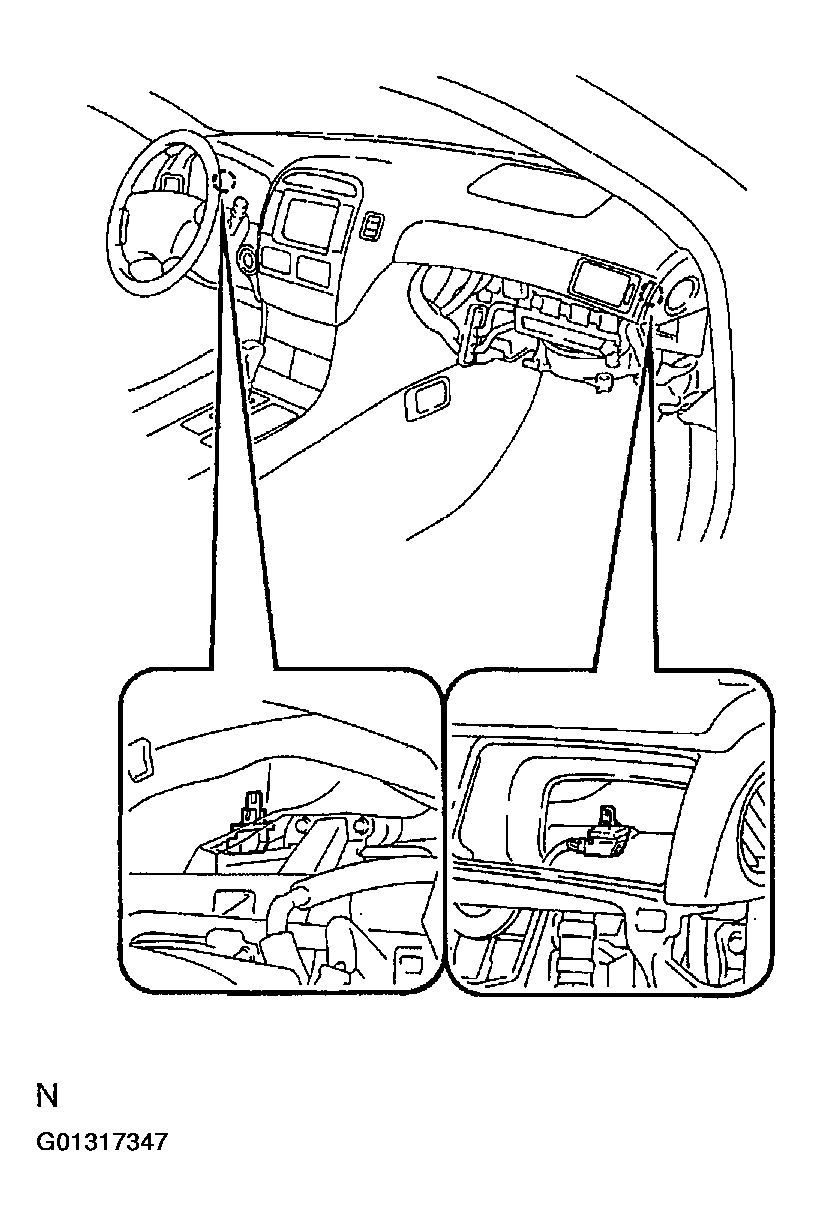

    Fig 1: Removing Duct Sensor
    G01317347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
