Air Conditioning Control Assembly: Components
WARNING:
This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

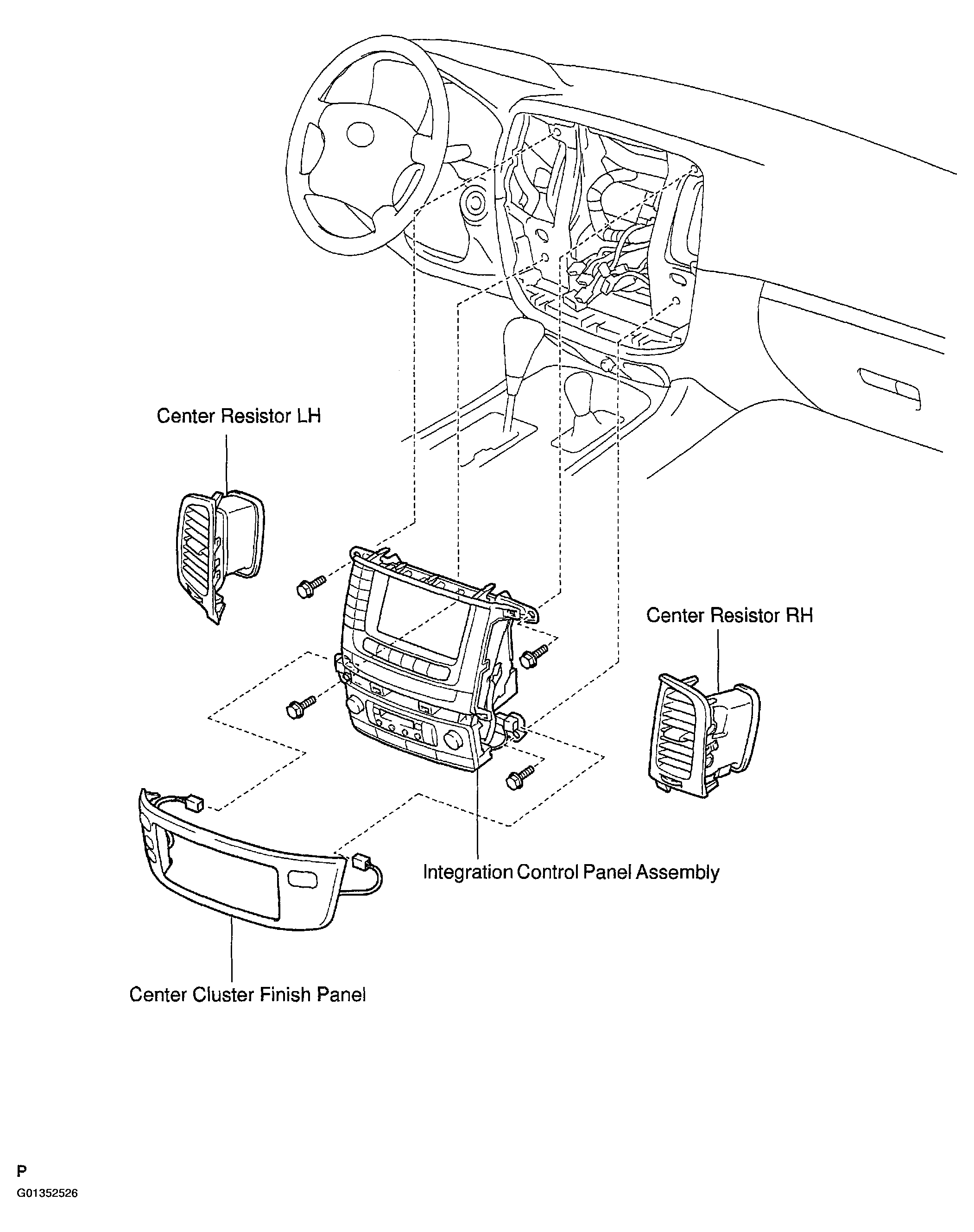

Fig 1: Exploded View Of Air Conditioning Control Assembly (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

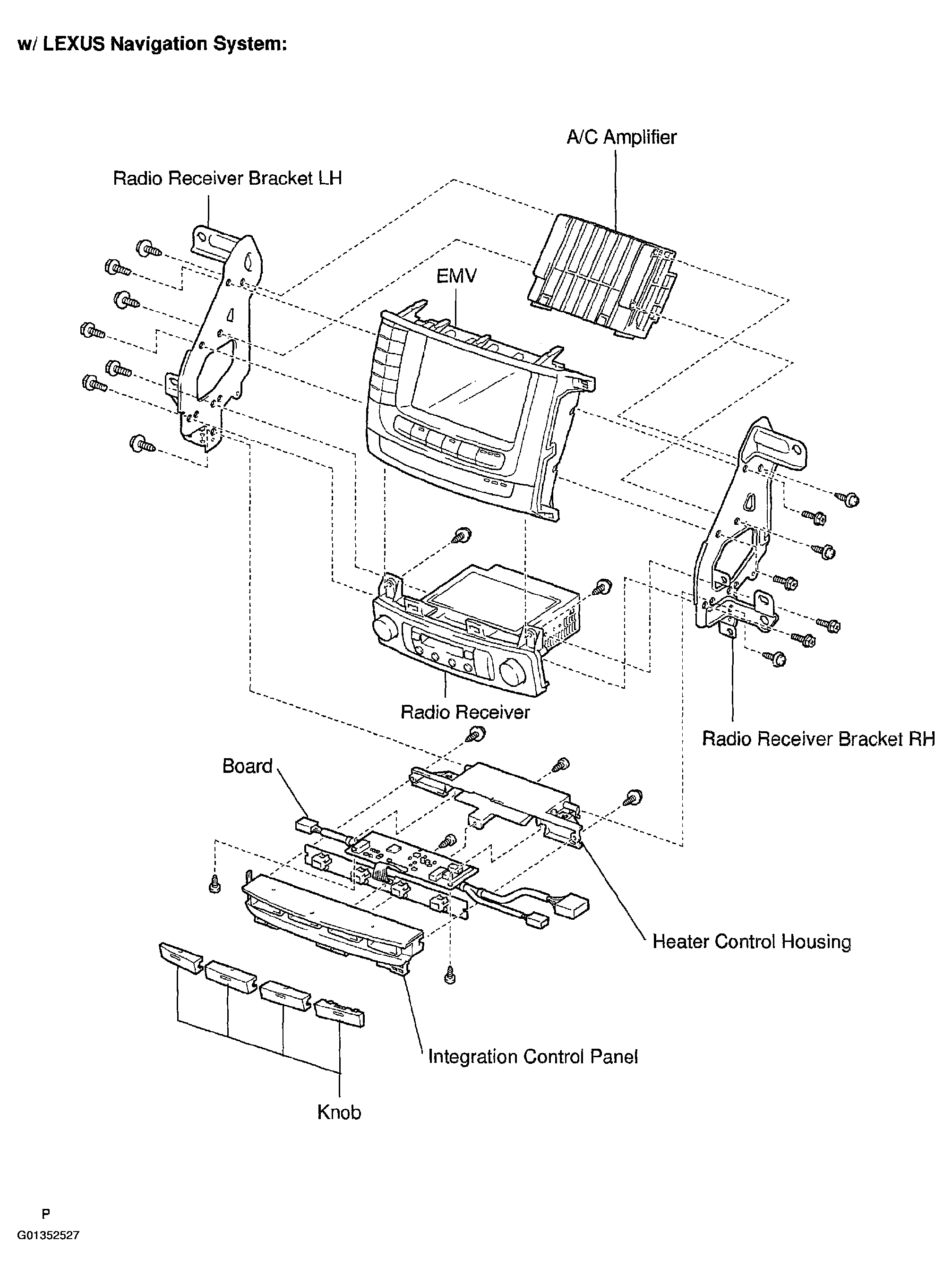

Fig 2: Exploded View Of Air Conditioning Control Assembly (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

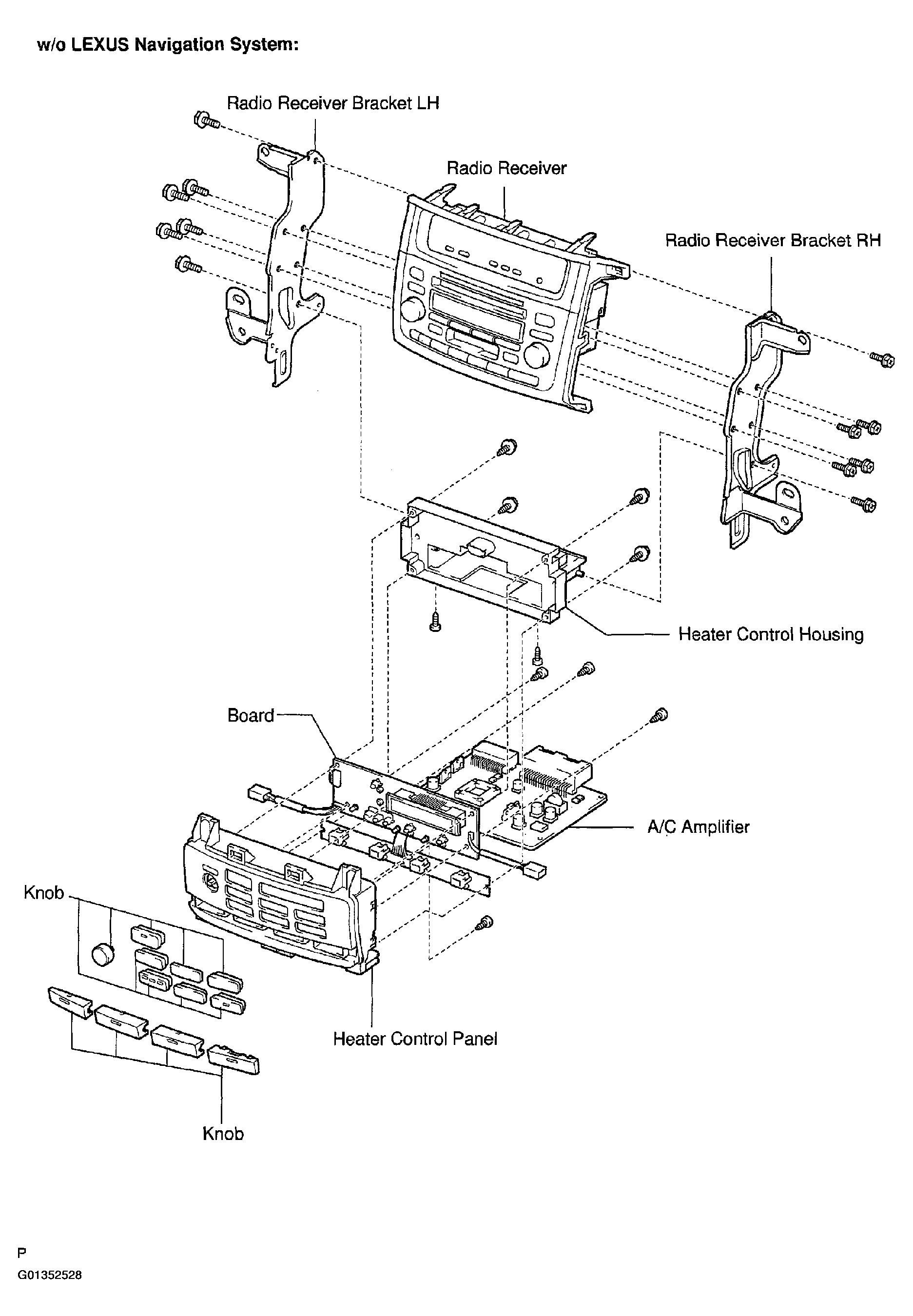

Fig 3: Exploded View Of Air Conditioning Control Assembly (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
