Air Conditioning Control Assembly: Disassembly

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

w/LEXUS navigation system: REMOVE KNOB
Using a screwdriver, pull out the knobs.

HINT:

Tape up the screwdriver tip before use.

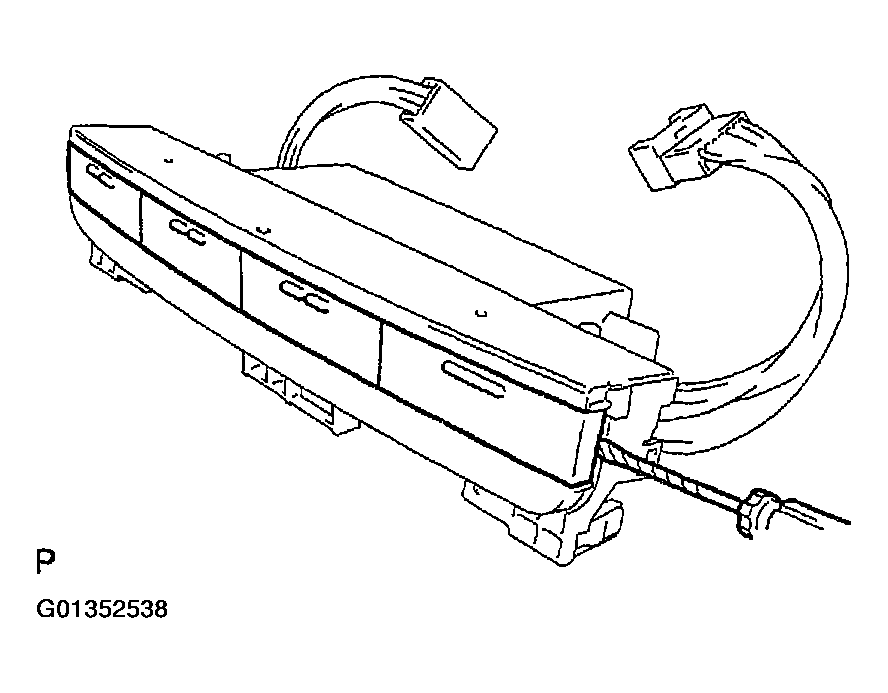

Fig 1: Removing Knobs
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/LEXUS navigation system: REMOVE INTEGRATION CONTROL PANEL
1. Remove the 3 screws.

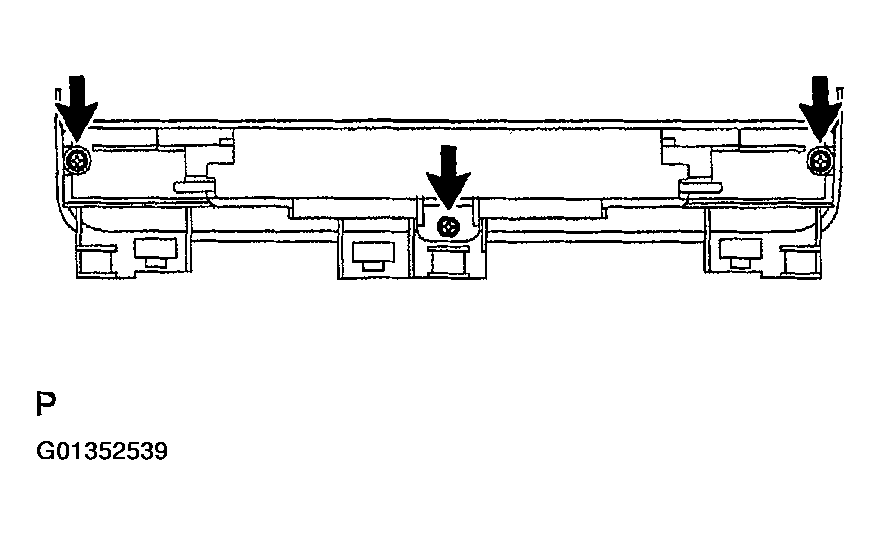

  Fig 2: Removing 3 Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the screw and the board.

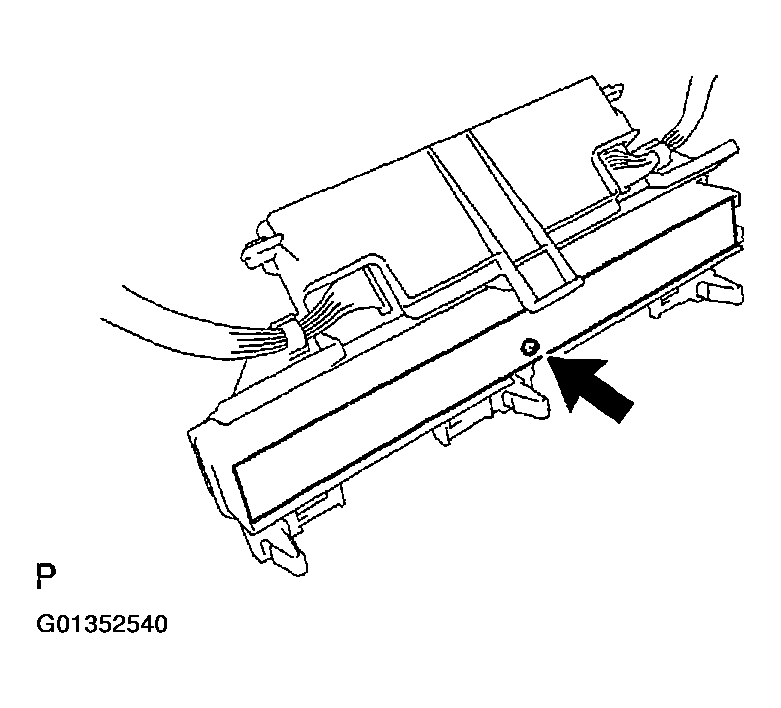

  Fig 3: Removing Screw And Board
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/LEXUS navigation system: REMOVE HEATER CONTROL HOUSING
1. Disconnect the connector clamps.
2. Remove the 2 screws and pull out the board from the heater control housing.
REMOVE KNOB
1. Using a screwdriver, pull out the knobs.
  HINT:

  Tape up the screwdriver tip before use.
2. Remove the nut.

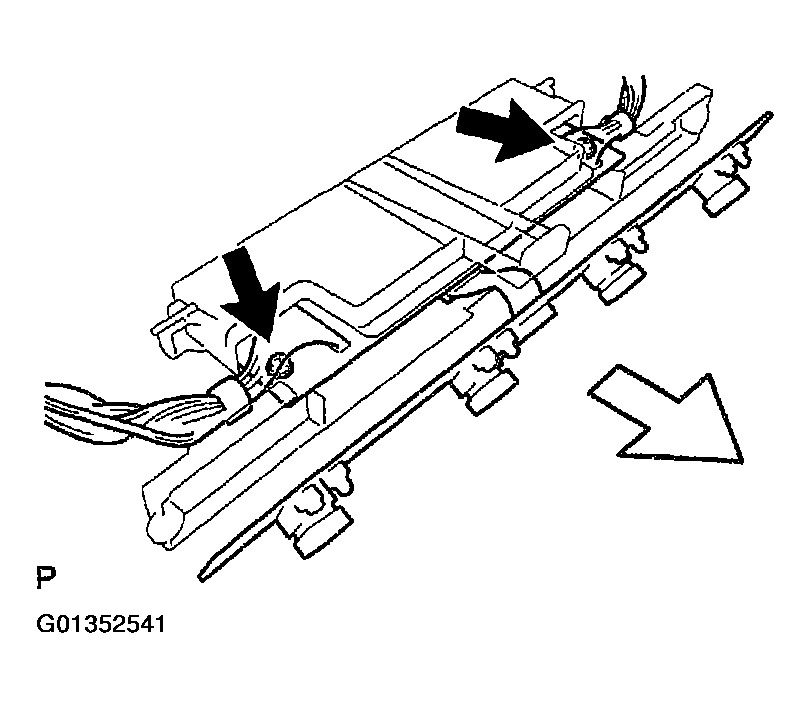

  Fig 4: Removing 2 Screws And Pulling Out Board From Heater Control Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/o LEXUS navigation system: REMOVE KNOB
Using a screwdriver, pull out the knobs.

HINT:

Tape up the screwdriver tip before use.

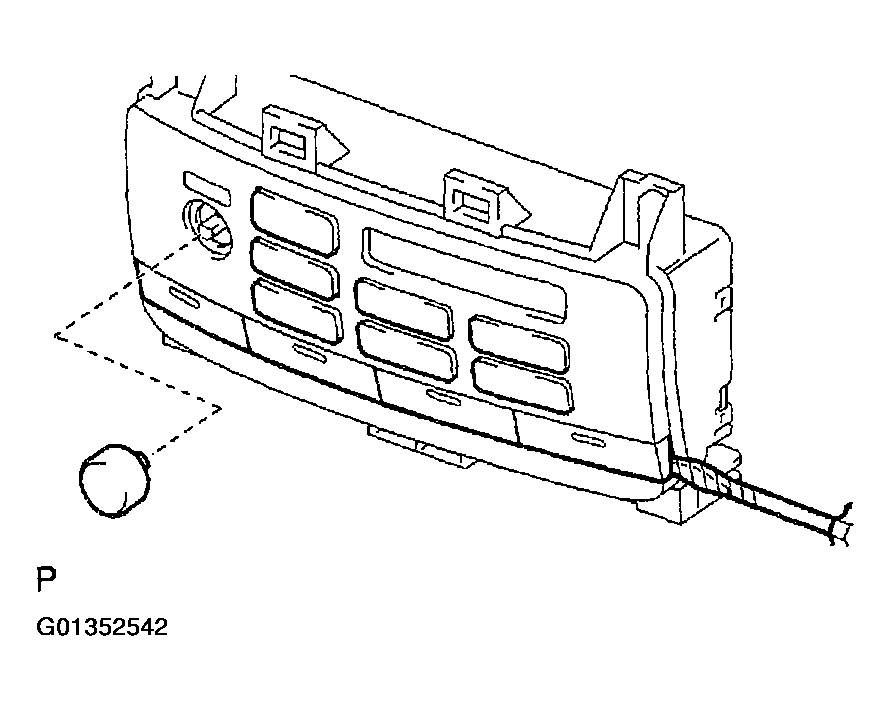

Fig 5: Using A Screwdriver Pull Out Knobs
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/o LEXUS navigation system: REMOVE INTEGRATION CONTROL PANEL
1. Remove the 6 screws and pull out the A/C amplifier.

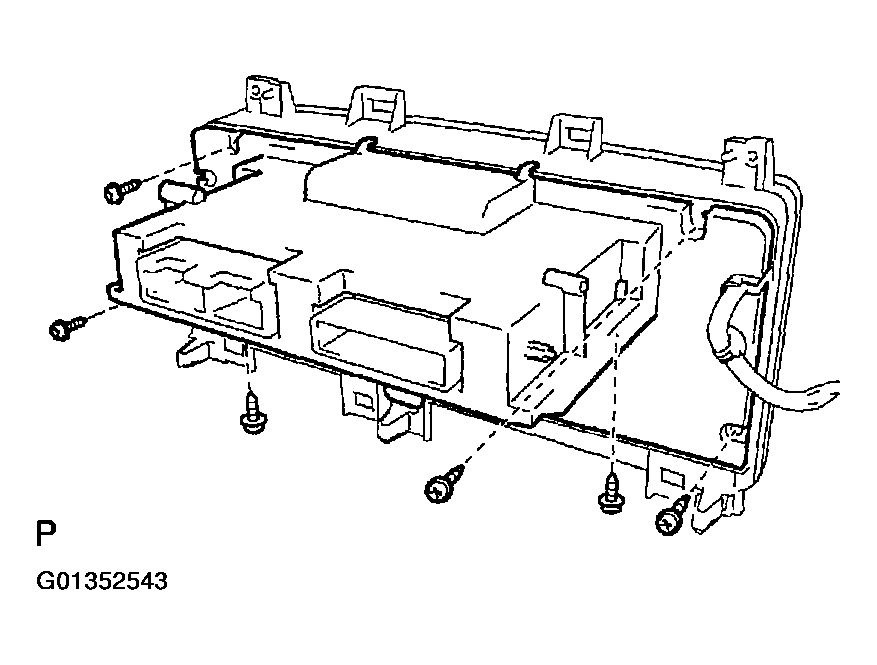

  Fig 6: Removing 6 Screws And Pull Out A/C Amplifier
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 5 screws and the board.

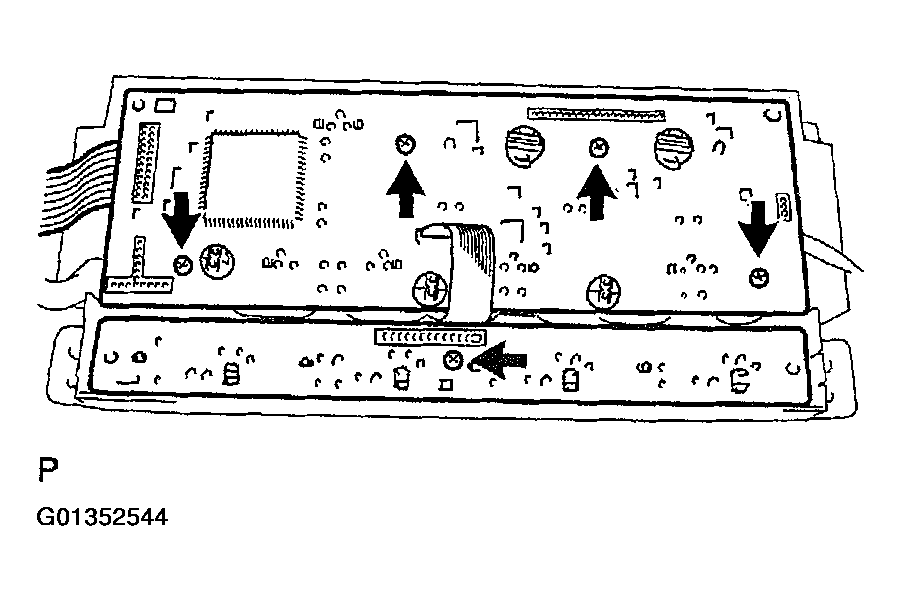

  Fig 7: Removing 5 Screws And Board
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
