Blower Unit: Disassembly

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AIR INLET SERVOMOTOR
Remove the 3 screws and the air inlet servomotor.

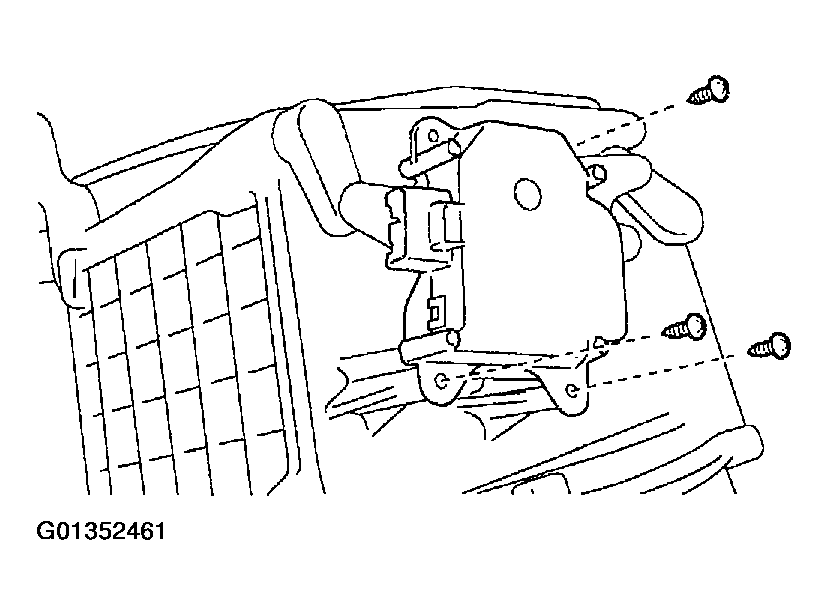

Fig 1: Removing Air Inlet Servomotor Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BLOWER MOTOR CONTROL RELAY
1. Disconnect the connector.
2. Remove the screw and the blower motor control relay.

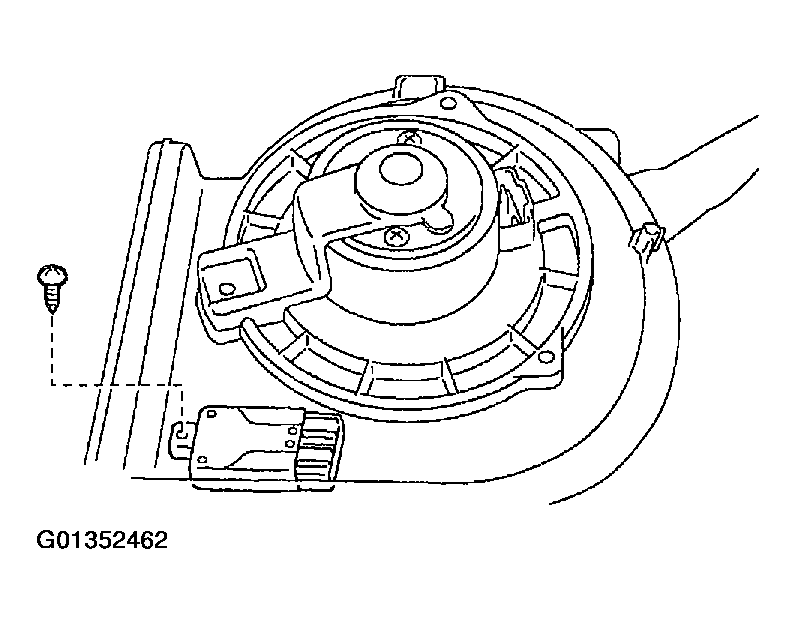

  Fig 2: Removing Blower Motor Control Relay Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BLOWER MOTOR
1. Disconnect the connector.
2. Remove the 3 screws and the blower motor.

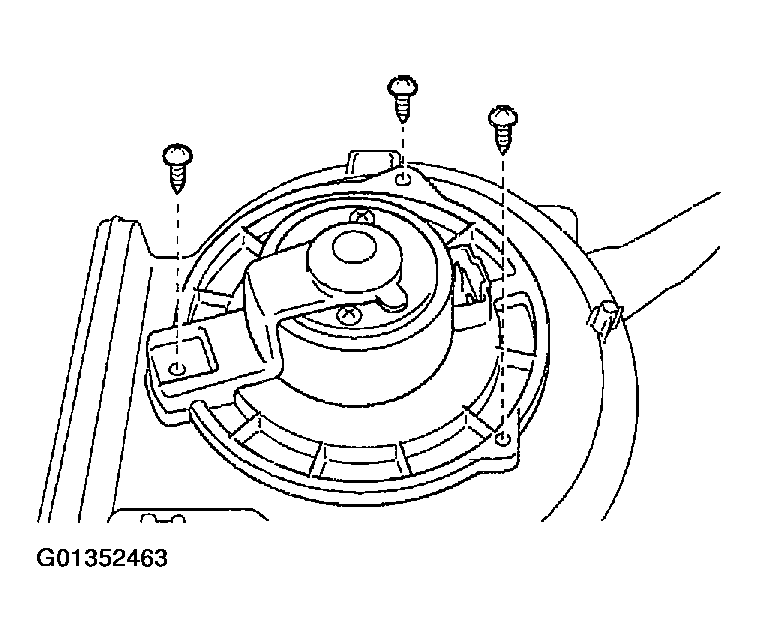

Fig 3: Removing Blower Motor Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WIRE HARNESS
Remove the screw and the wire harness.
