Blower Unit: Removal

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT COOLING UNIT (See REMOVAL )
REMOVE BLOWER UNIT
1. Disconnect the connectors.
2. Remove the bolt, 2 nuts and the blower unit.

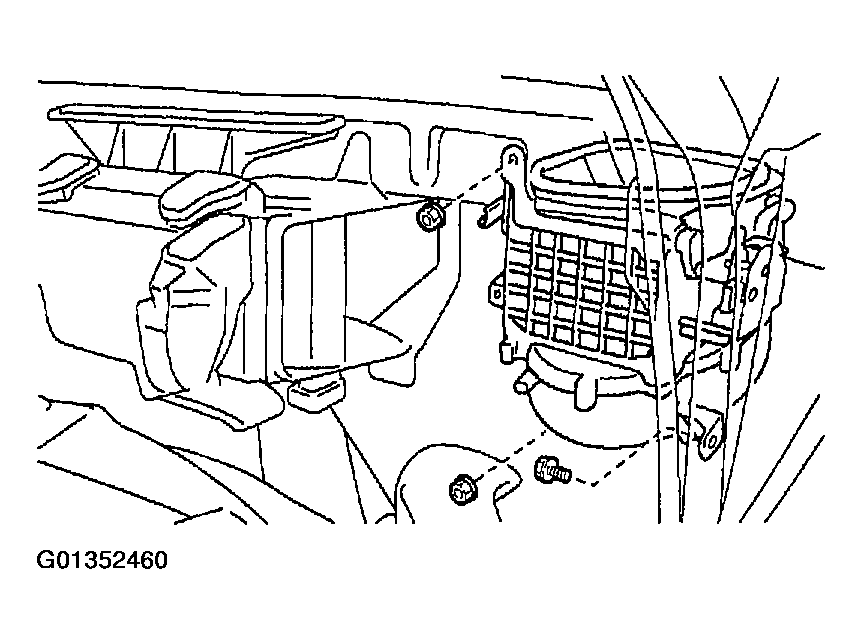

  Fig 1: Removing Blower Unit Nuts And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
