Solar Sensor: Inspection

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE SOLAR SENSOR
sing a screwdriver, pull out the solar sensor, then disconnect the connector.

HINT:

Tape up the screwdriver tip before use.

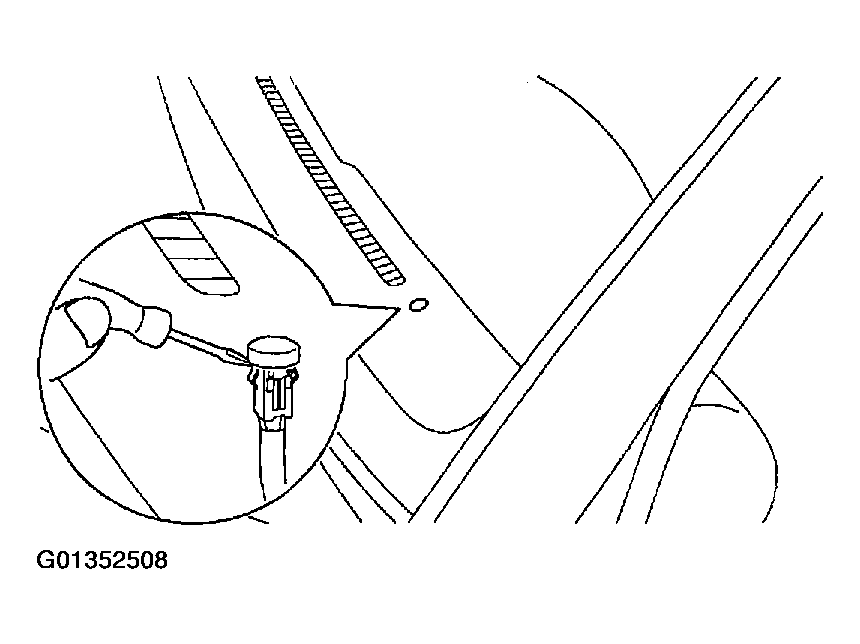

Fig 1: Removing Solar Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT SOLAR SENSOR CIRCUIT (See DTC 21: SOLAR SENSOR CIRCUIT )
INSTALL SOLAR SENSOR
1. Connect the connector.
2. Insert the solar sensor to the instrument panel.
