Rear Wheel Alignment: Inspection

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

MEASURE VEHICLE HEIGHT (See FRONT WHEEL ALIGNMENT ) .
INSTALL CAMBER-CASTER-KINGPIN GAUGE ONTO WHEEL ALIGNMENT TESTER
Follow the specific instructions of the equipment manufacturer.

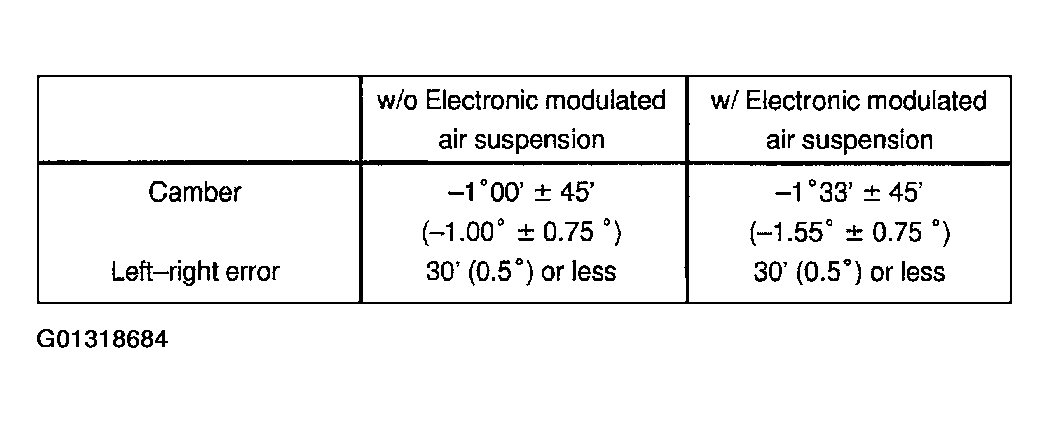

INSPECT TOE-IN

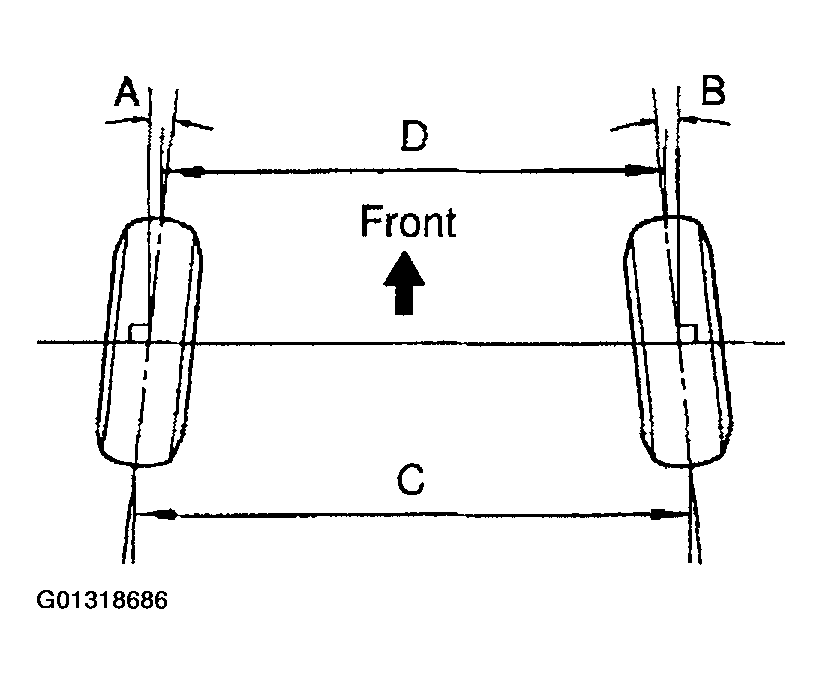

Fig 2: Inspecting Toe-In
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Toe-in:

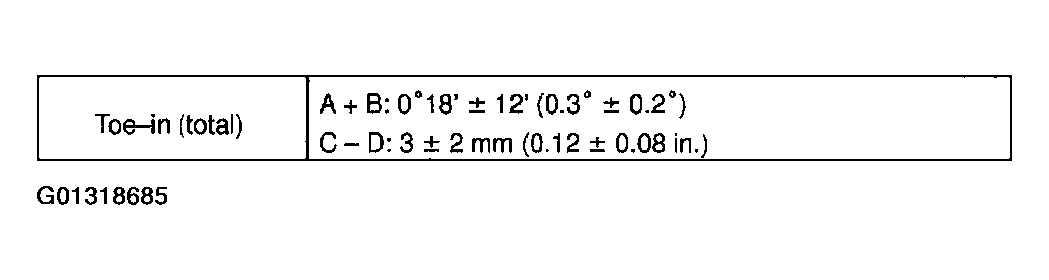

Fig 3: Rear Toe-In Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST CAMBER AND TOE-IN
1. Adjust the camber.
  1. Remove the No. 2 lower suspension arm. (See LOWER SUSPENSION ARM ).
  2. According to the table below, replace the No. 2 lower suspension arm.

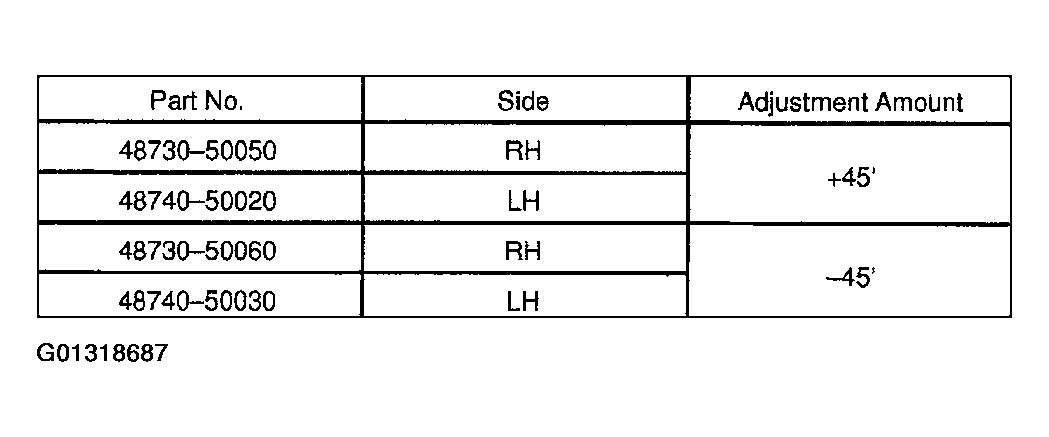

    Fig 4: Identifying Lower Suspension Arm Part No. & Adjustment Specifications
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Install the No. 2 lower suspension arm (See LOWER SUSPENSION ARM ).
2. Adjust the toe-in.
  1. Loosen the cams.
  2. Adjust toe-in by turning the front and/or rear cams.
  3. Torque the cam nuts.
    HINT:

    Toe change about 22.8' (0.38°) with each graduation of the cam.

    Torque: 50 N.m (510 kgf.cm, 37 ft.lbf)

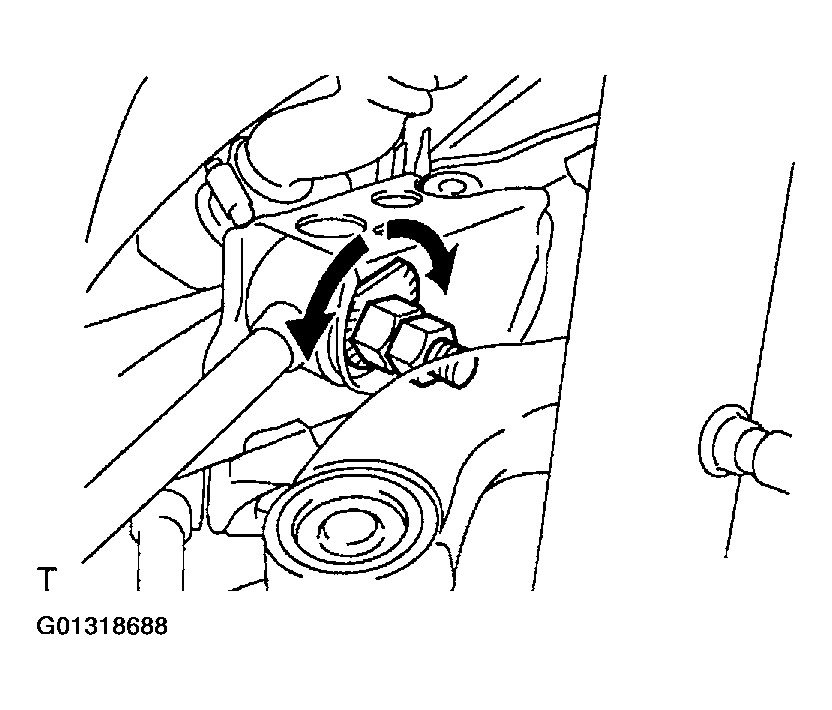

    Fig 5: Adjusting Toe-In
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
