Cruise Control: Components

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

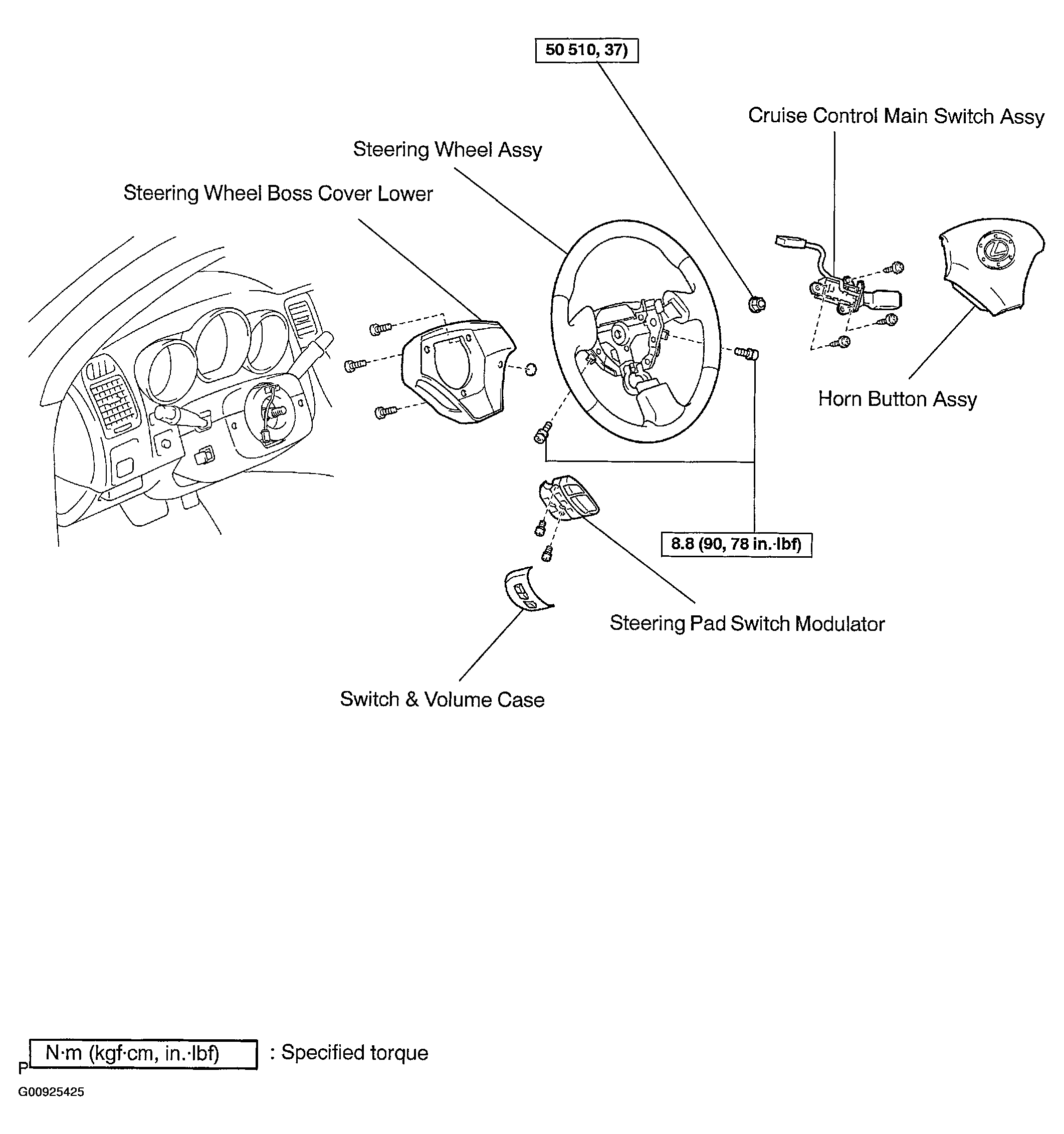

Fig 1: Identifying Cruise Control Components
G00925425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
