Power Outlet Socket ASSY Ctr: Replacement

HINT:

• SEE: COMPONENTS .
• Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE  REPLACEMENT  )
2. REMOVE INSTRUMENT PANEL CUP HOLDER ASSY (SEE  REPLACEMENT  )
3. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (SEE  REPLACEMENT  )
4. REMOVE CONSOLE BOX CARPET (SEE  REPLACEMENT  )
5. REMOVE REAR CONSOLE ARMREST ASSY (SEE  REPLACEMENT  )
6. REMOVE POWER OUTLET SOCKET ASSY CTR
   1. Turn the socket counterclockwise as shown in the illustration.
   2. Disengage the claw between the socket and the socket cover, and push out the socket.
   3. Align the socket with the notch on the socket cover, and remove the socket assy.

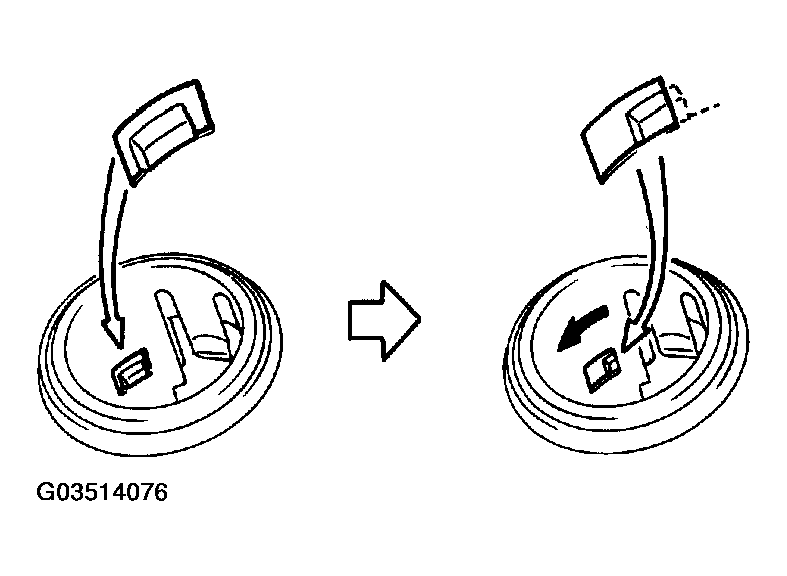

      Fig 1: Aligning Socket With Notch On Socket Cover, And Removing Socket Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL POWER OUTLET SOCKET ASSY CTR
   1. Align the socket with the notch on the socket cover, push in the socket assy as hard as possible to install it.
