Steering Pad Switch Modulator: Replacement

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: SEE AIR BAG RESTRAINT SYSTEMS .
SEE: LOCATION .
Installation is in the reverse order of removal.

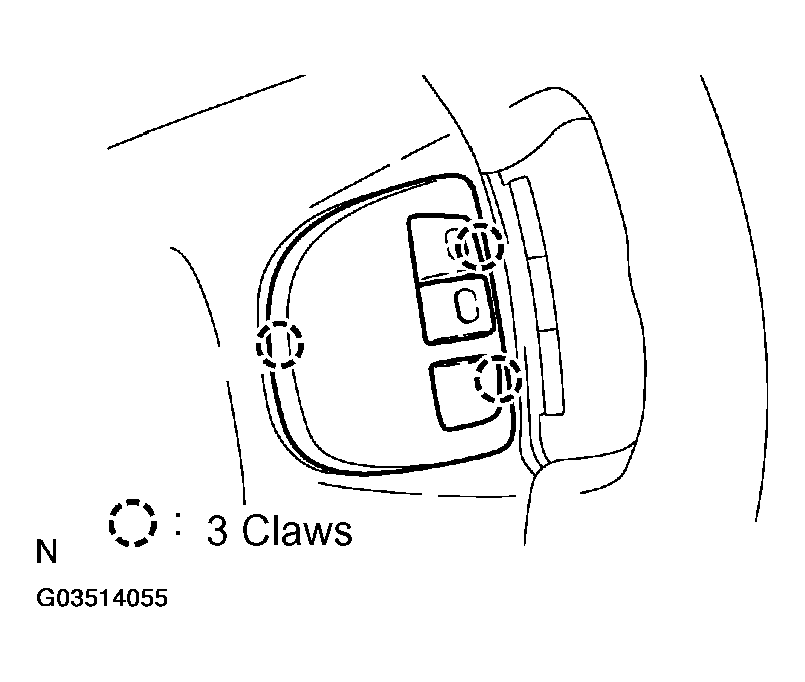

Fig 1: Disengaging Claws And Removing Switch & Volume Case
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE SWITCH & VOLUME CASE
1. Disengage the 3 claws and remove the switch & volume case.
REMOVE STEERING WHEEL COVER LOWER NO.2 (SEE GARAGE DOOR OPENER SYSTEM )
REMOVE HORN BUTTON ASSY (SEE GARAGE DOOR OPENER SYSTEM )

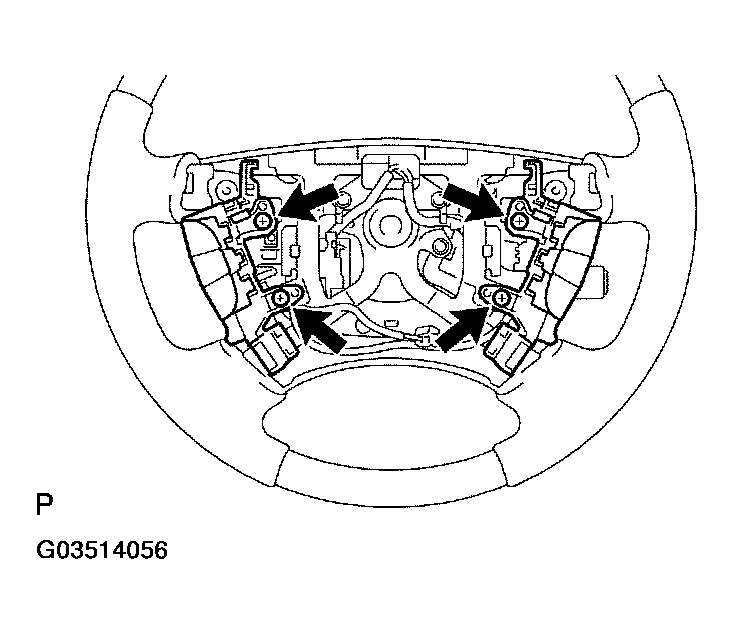

Fig 2: Disconnecting Connectors And Removing Steering Pad Switch Modulator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING PAD SWITCH MODULATOR
1. Remove the 4 screws.
2. Disconnect the connectors and remove the steering pad switch modulator.
INSTALL HORN BUTTON ASSY (SEE GARAGE DOOR OPENER SYSTEM )
INSPECT HORN BUTTON ASSY (SEE GARAGE DOOR OPENER SYSTEM )
SRS WARNING LIGHT (SEE SOURCE VOLTAGE DROP )
