Terminals Of Ecu
WARNING: This page is about a different car, the 2003 Lexus ES 300 and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

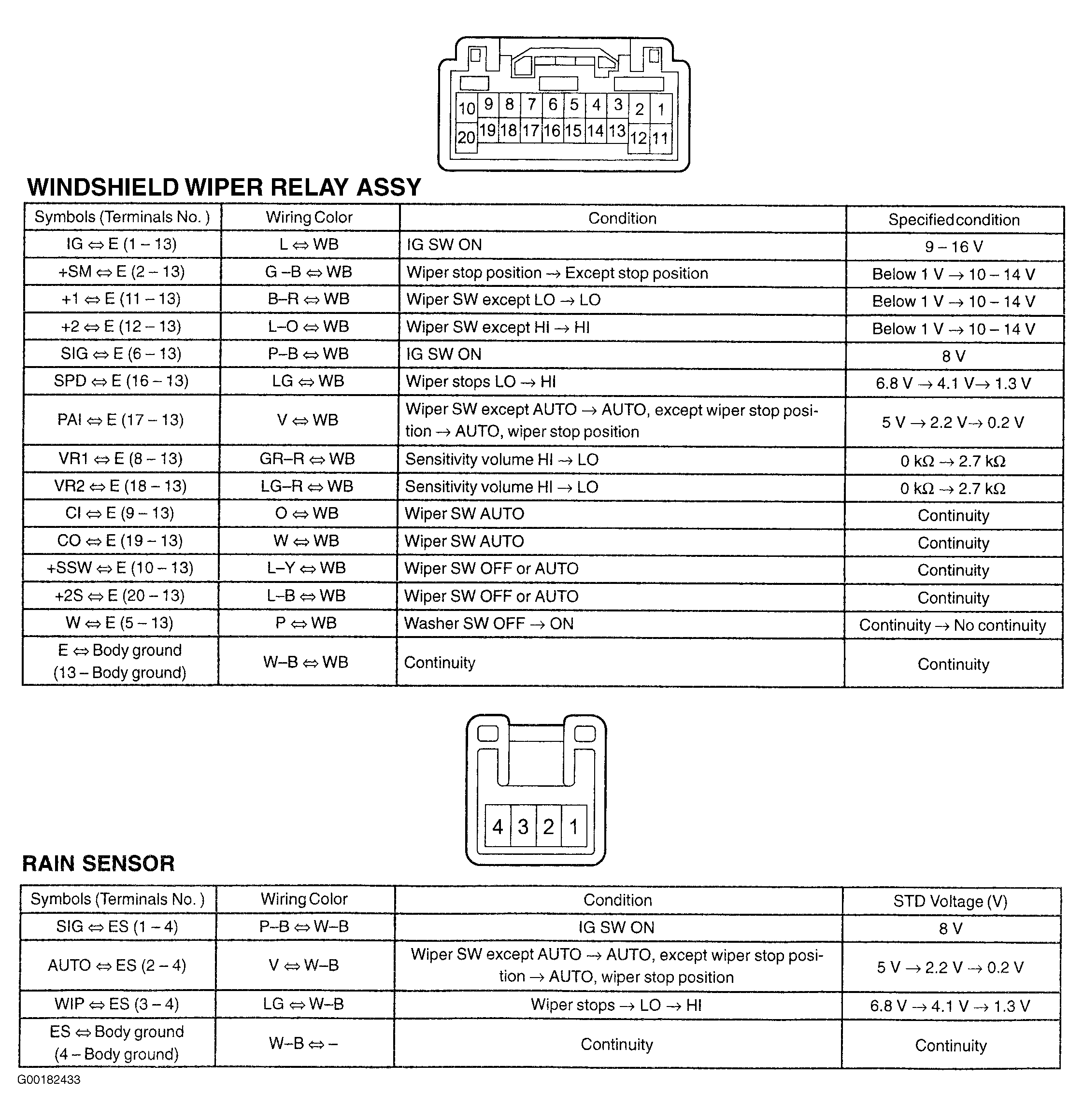

For inspection of the windshield wiper relay assembly and rain sensor terminals, see Fig 1.
