Customize Function - Diagnostic Program Card Version 8.1 (SS009-01)

Publication date: 2001-11-23
Reference number: SS009-01

CUSTOMIZE FUNCTION - DIAGNOSTIC PROGRAM CARD VERSION 8.1

TECHNICAL SERVICE BULLETIN

Reference Number(s): SS009-01, Date of Issue: November 23, 2001

LEXUS:	2002 LS 430 models
GROUP:	Special Service Tools
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Customize Function - Diagnostic Program Card Version 8.1

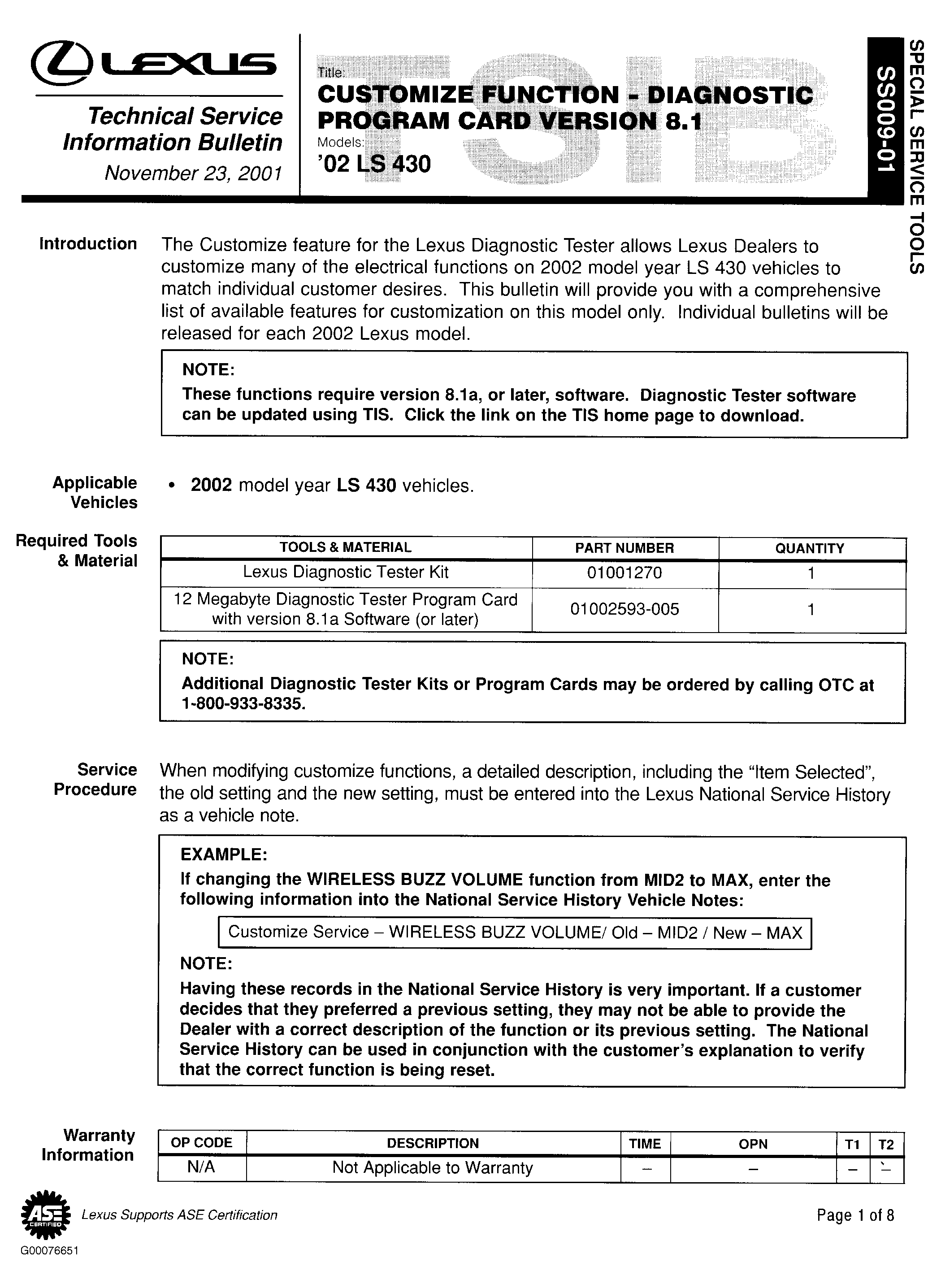

Fig 1: Page 1 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

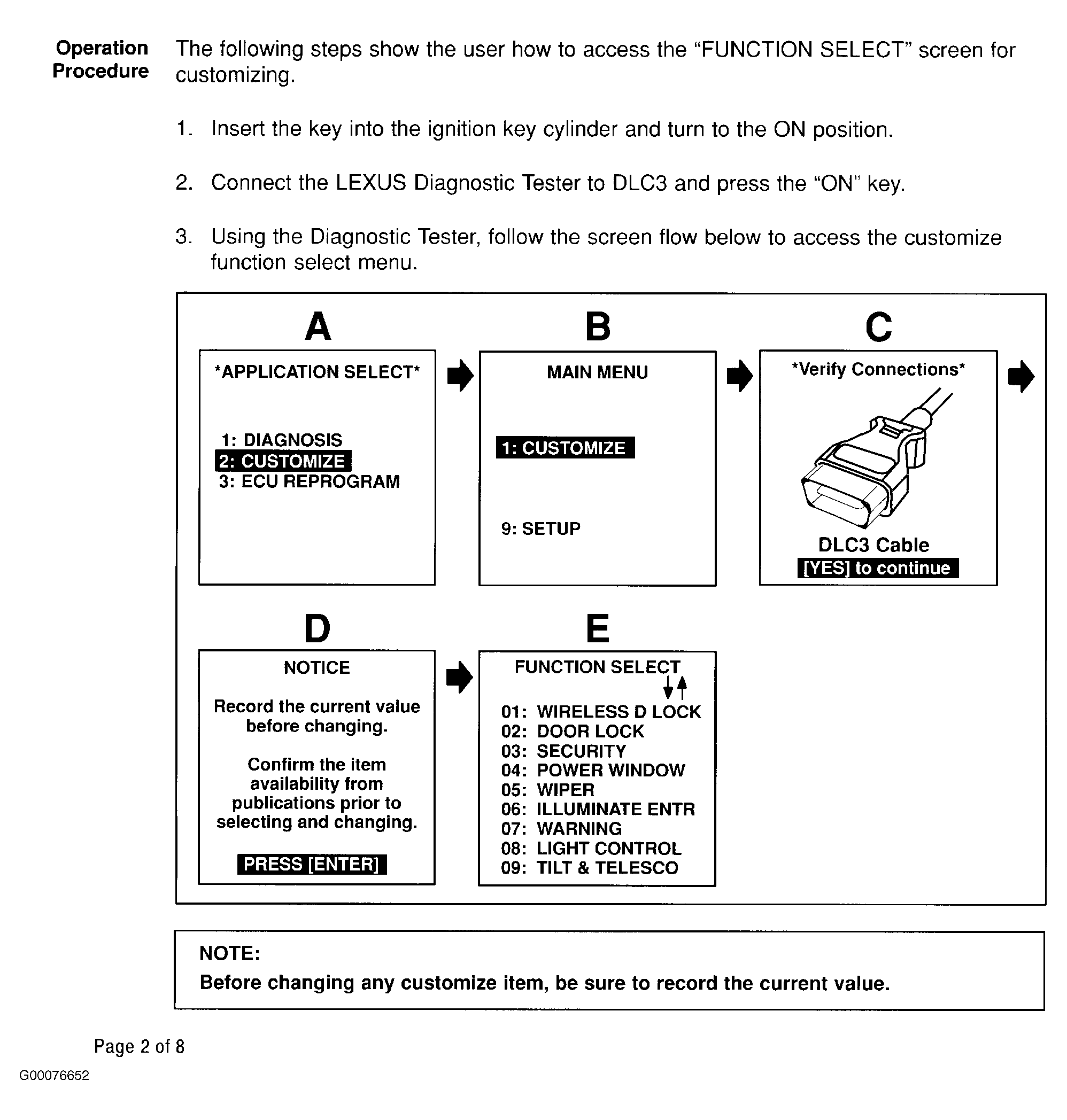

Fig 2: Page 2 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

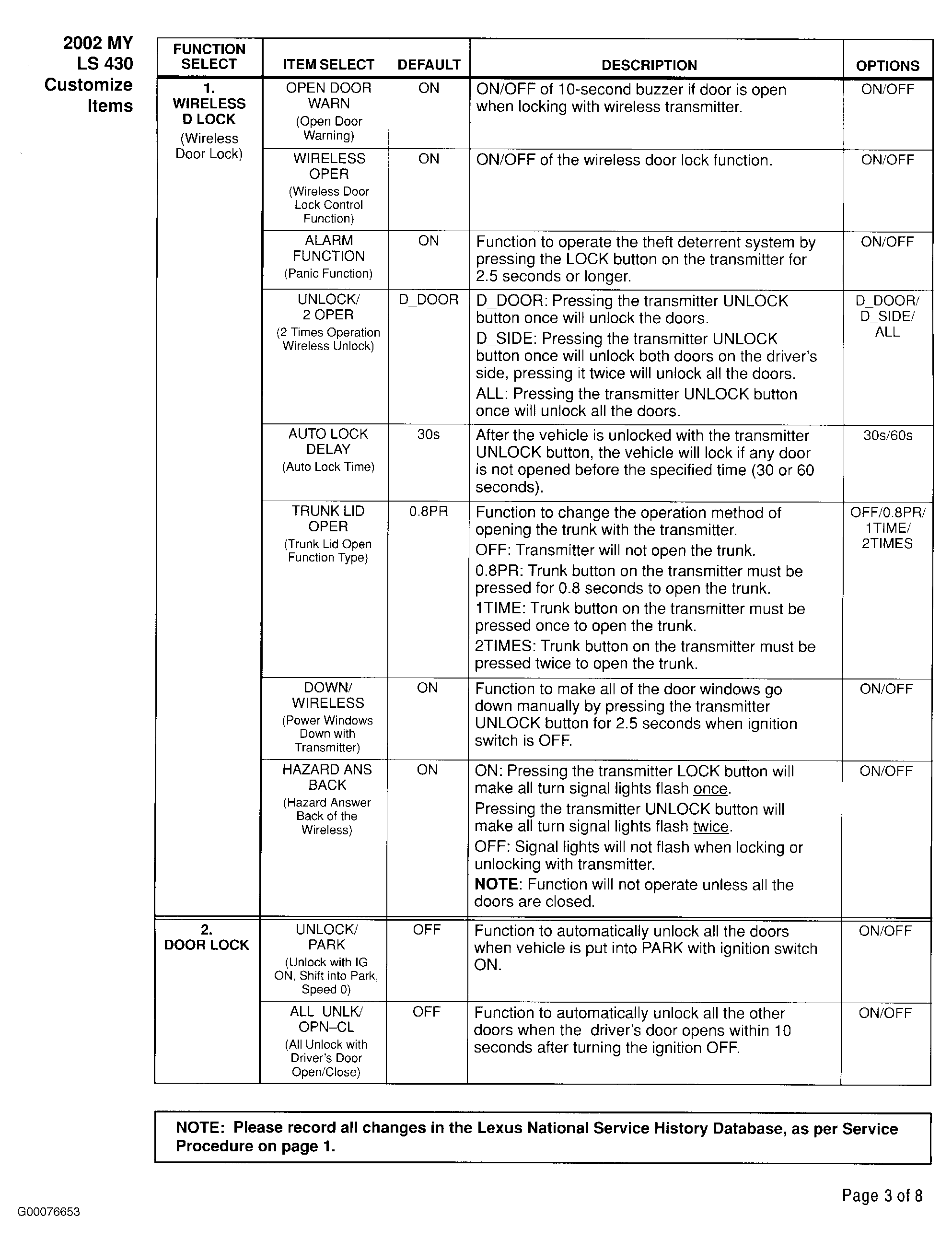

Fig 3: Page 3 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

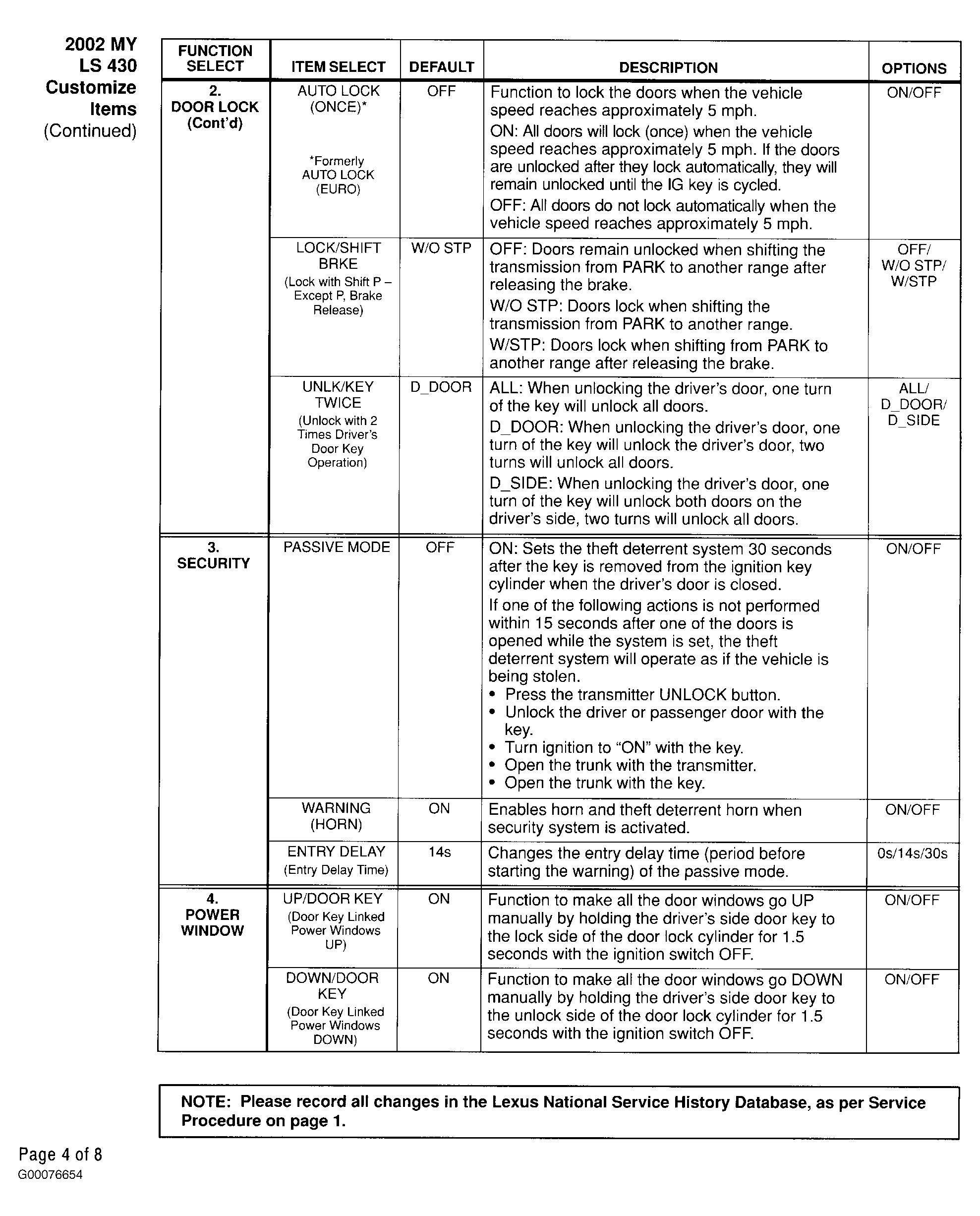

Fig 4: Page 4 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

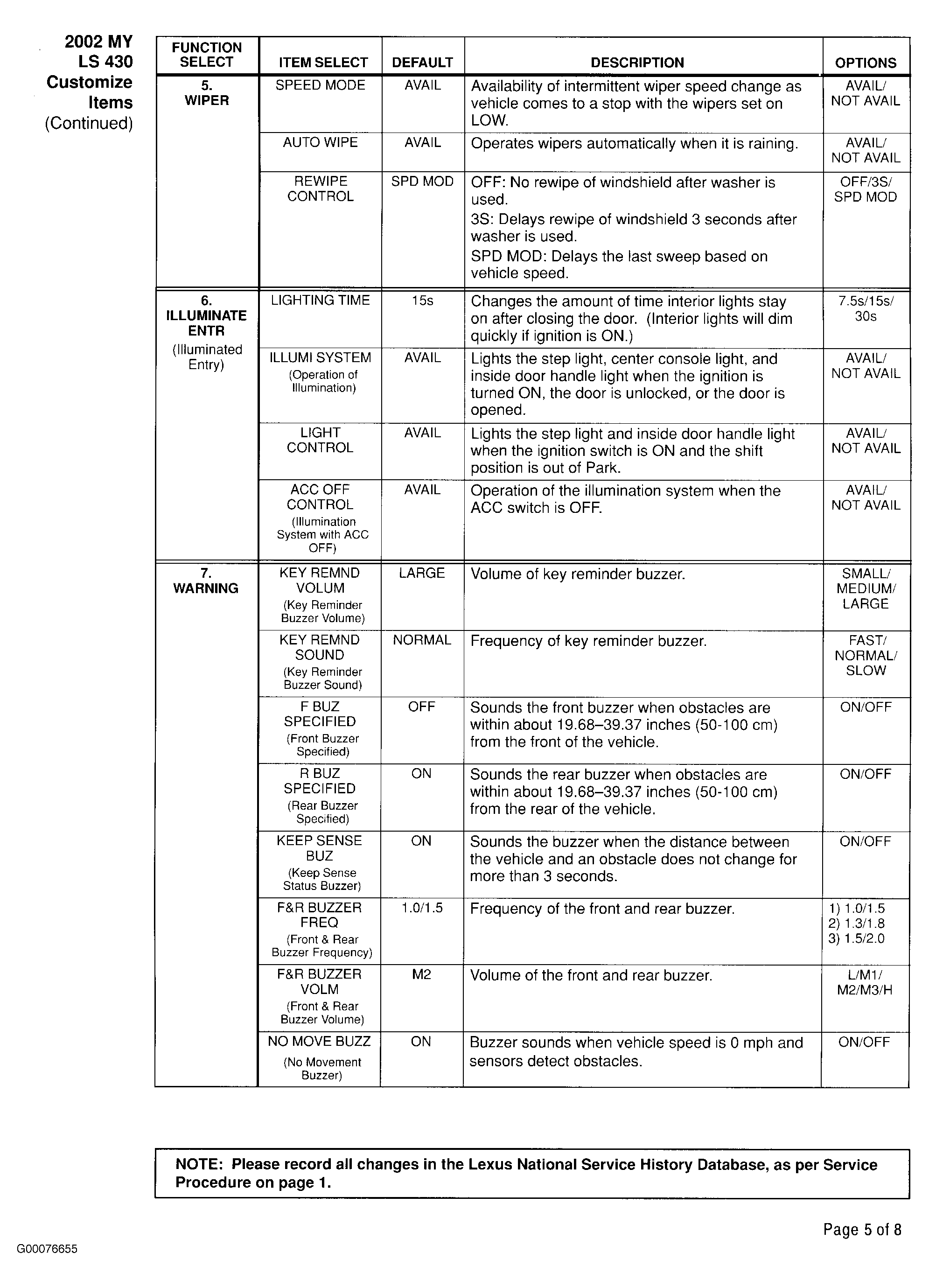

Fig 5: Page 5 of Bulletin

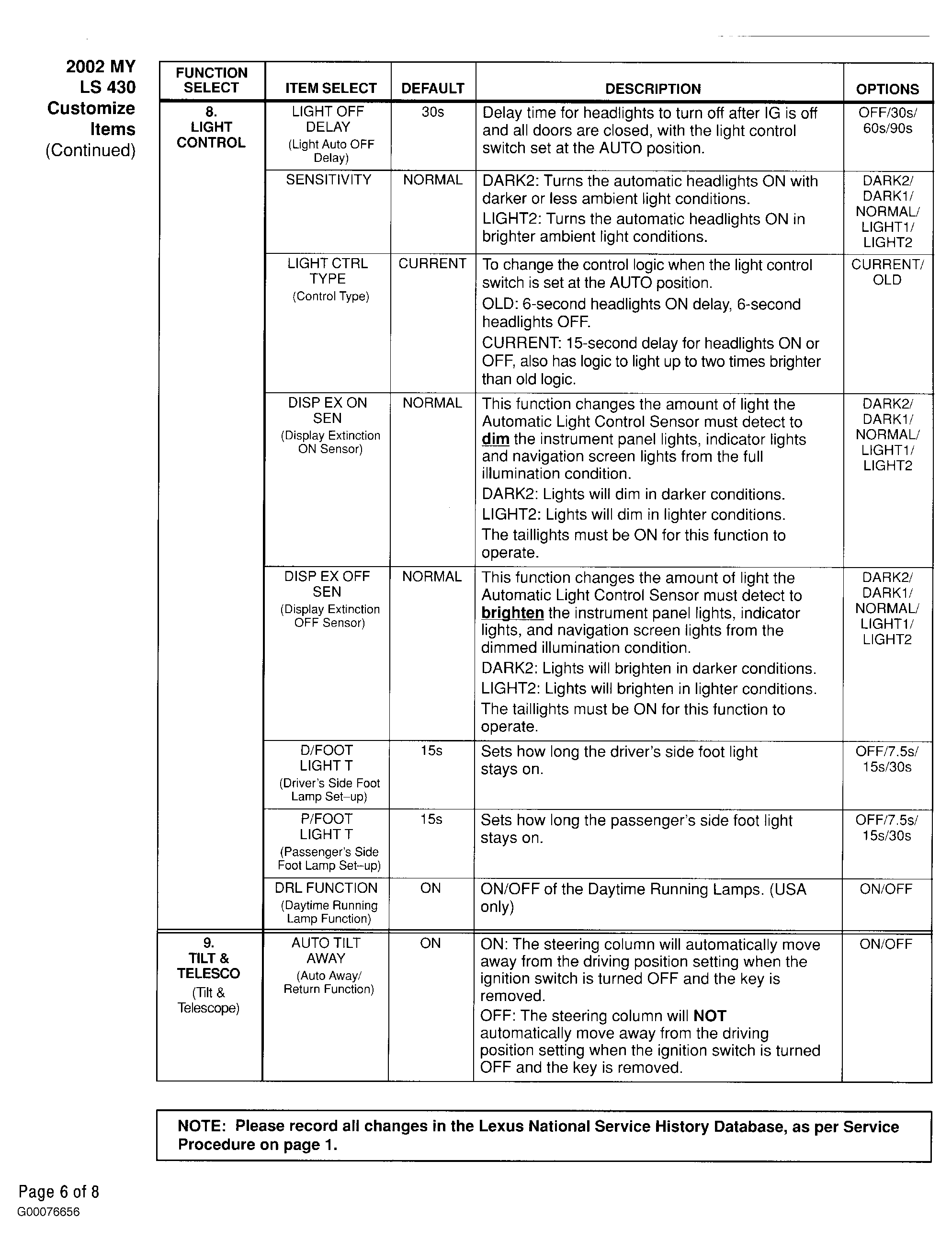

Fig 6: Page 6 of Bulletin

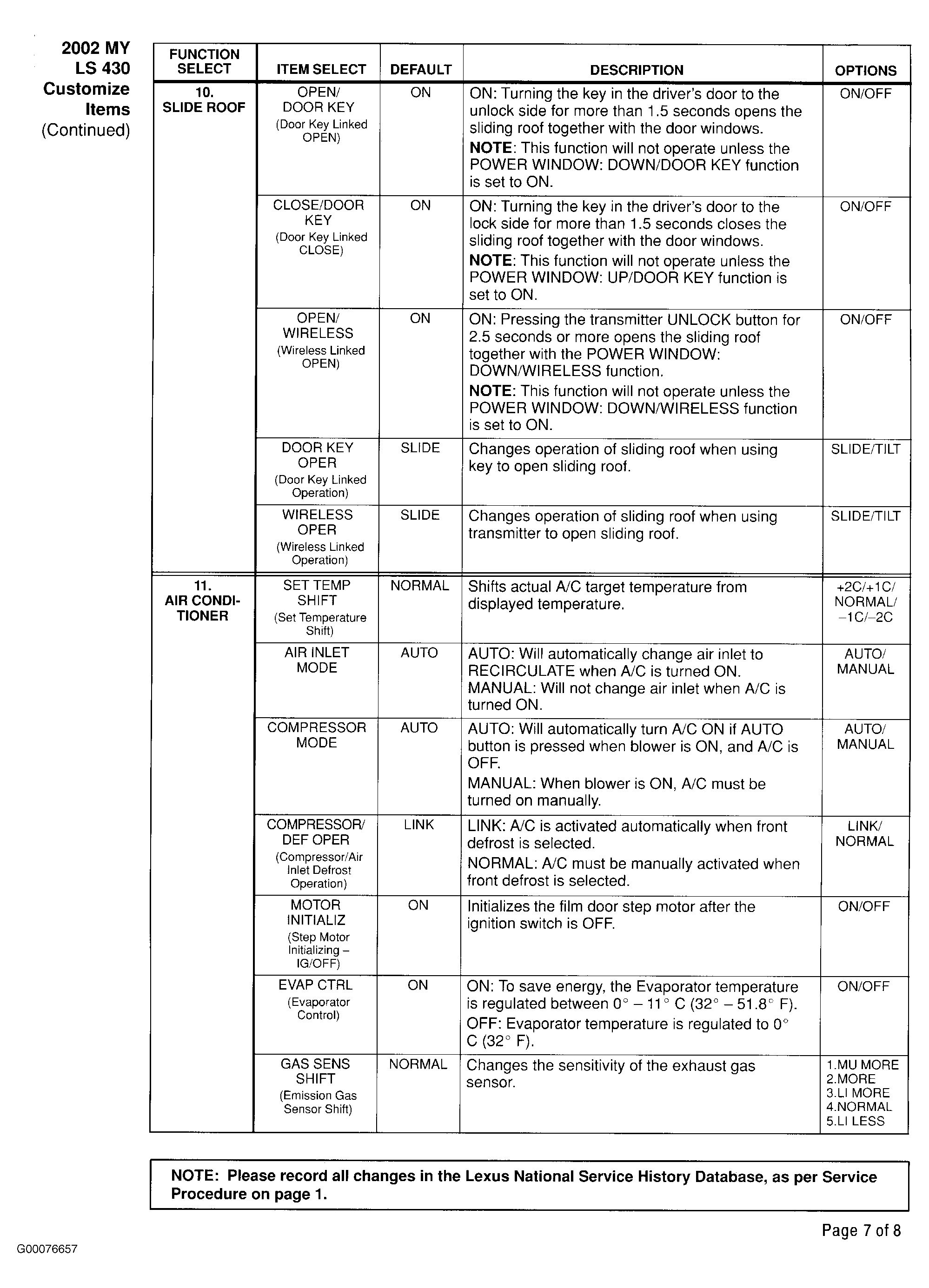

Fig 7: Page 7 of Bulletin

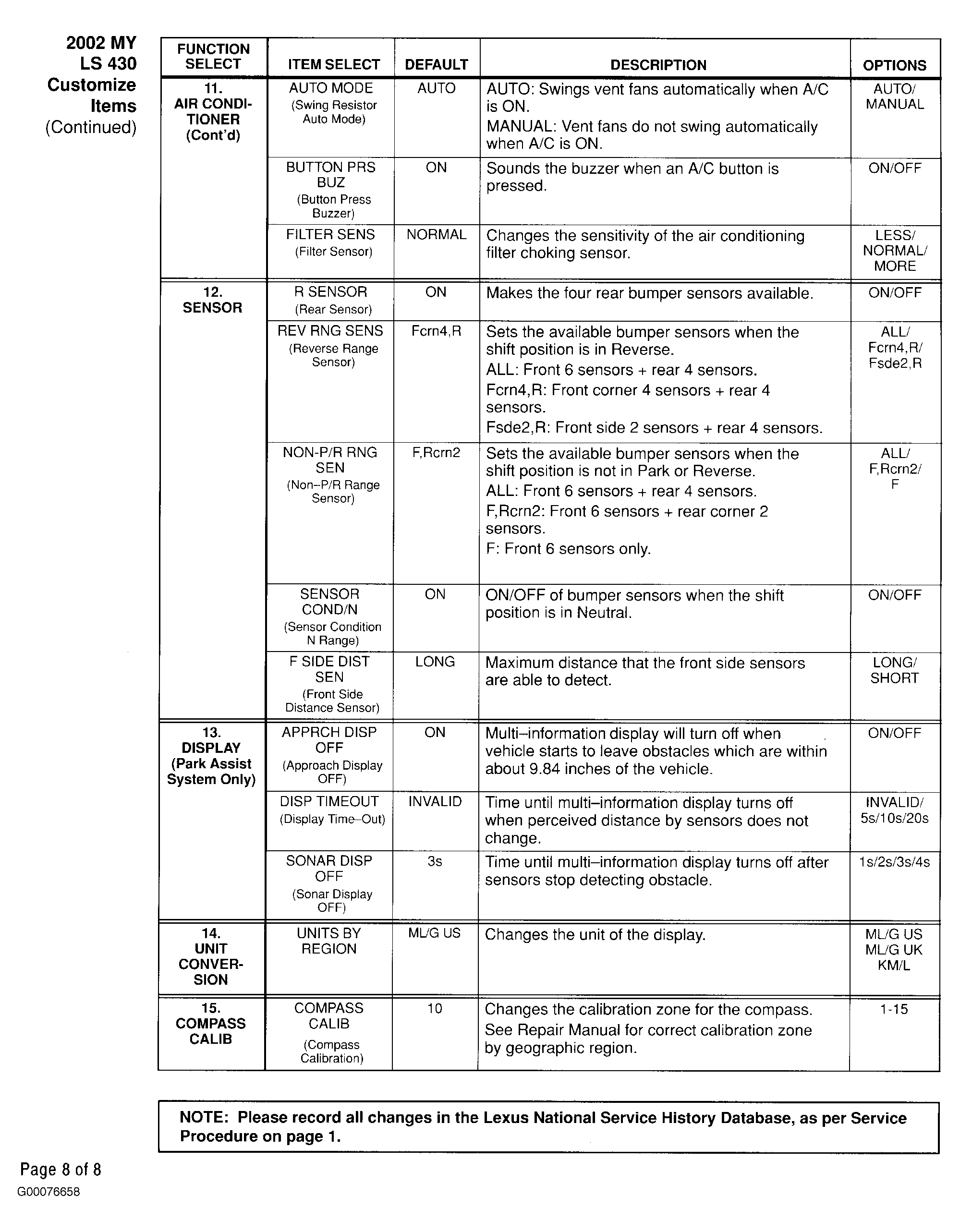

Fig 8: Page 8 of Bulletin
