Inspect Steering Rack

  1. Using a dial indicator, check the rack for runout and for teeth wear and damage.

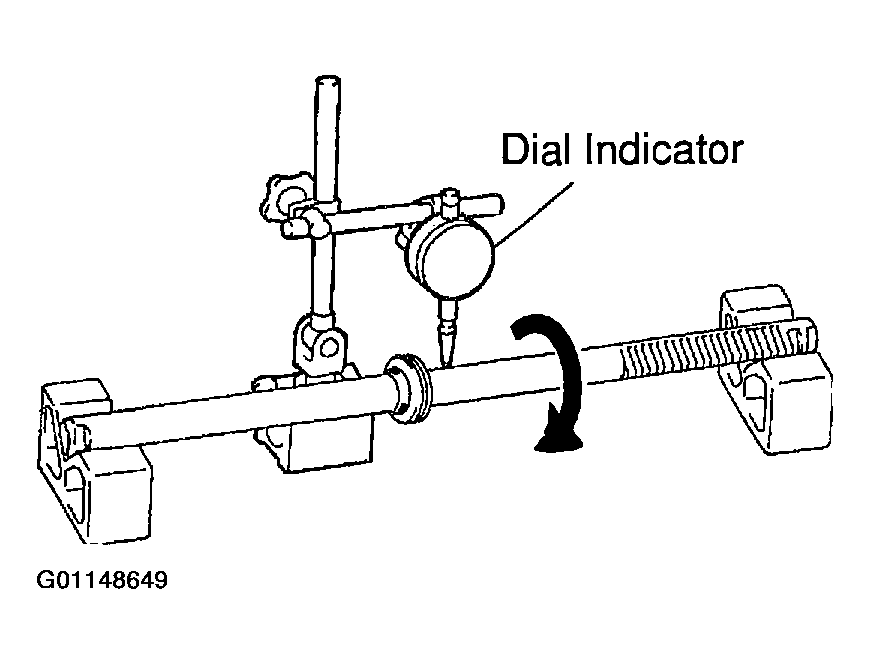

    Fig 1: Checking Rack For Runout
    G01148649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Maximum runout: 0.30 mm (0.0118 in.)
  2. Check the back surface for wear and damage.
