Power Steering Vane Pump: Installation

Install pressure feed tube.
1. Install a new gasket, then connect the pressure feed tube with the union bolt.
2. Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
  NOTE: Make sure the stopper of the pressure feed tube touches the PS vane pump body as shown in Fig 1, then torque the union bolt.

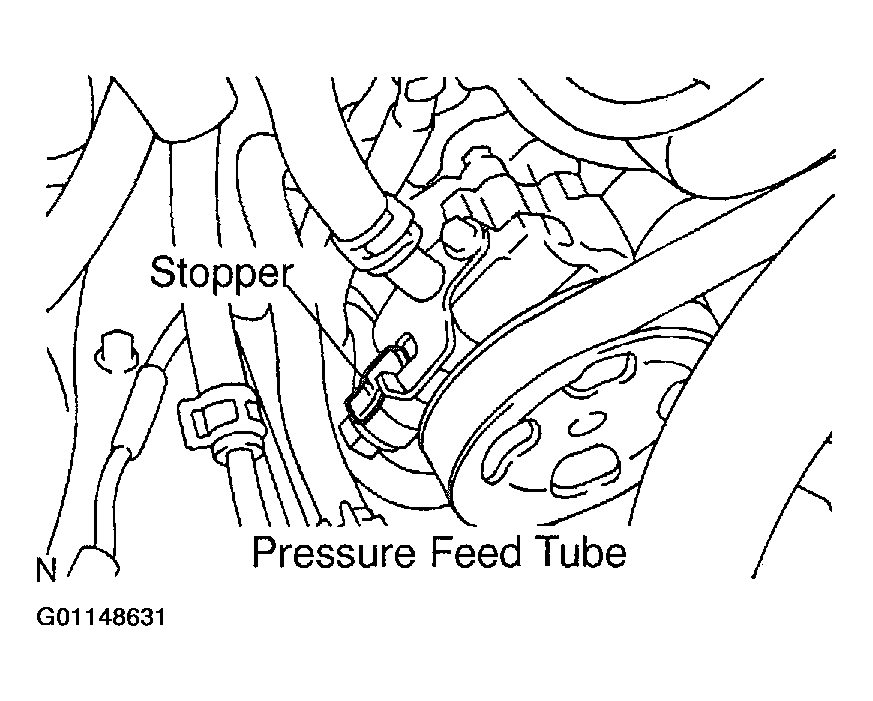

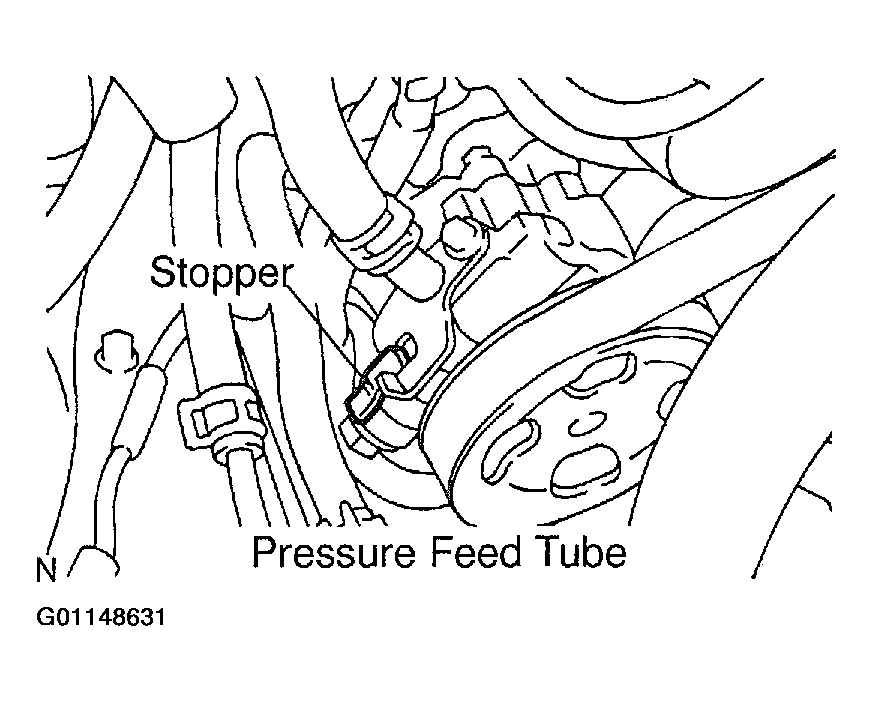

  Fig 1: Identifying Stopper Of Pressure Feed Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install PS vane pump assembly.
1. Install the PS vane pump assembly with the nut.
  Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
2. Install the 2 bolts.
  Torque: 39 N.m (400 kgf.cm, 30 ft.lbf)
Connect pressure feed tube.
1. Using SST, connect the pressure feed tube.
  SST 09023-12700

  Torque: 40 N.m (410 kgf.cm, 30 ft.lbf)
  NOTE:
  - Use a torque wrench with a fulcrum length of 345 mm (13.58 in.).

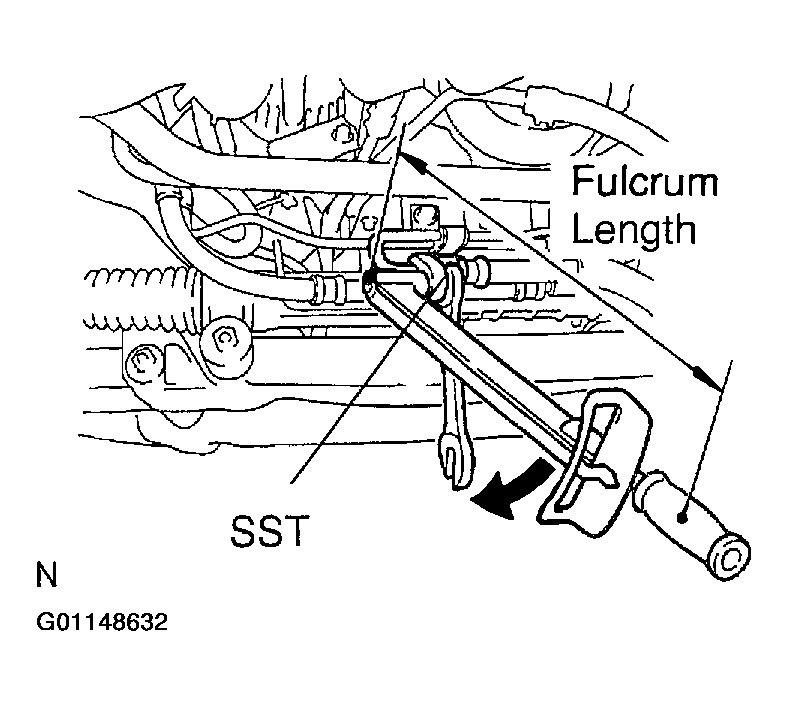

    Fig 2: Identifying SST & Fulcrum Length
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - This torque value is effective in case that SST is parallel to a torque wrench.
Connect 2 tube clamps.
Connect return hose.
1. Connect the return hose with the clip.
Connect 2 vacuum hoses.
1. Connect the 2 vacuum hoses with the 2 clips.
Install drive belt.
1. Loosen the drive belt tension by turning the drive belt tensioner counterclockwise, and install the drive belt.

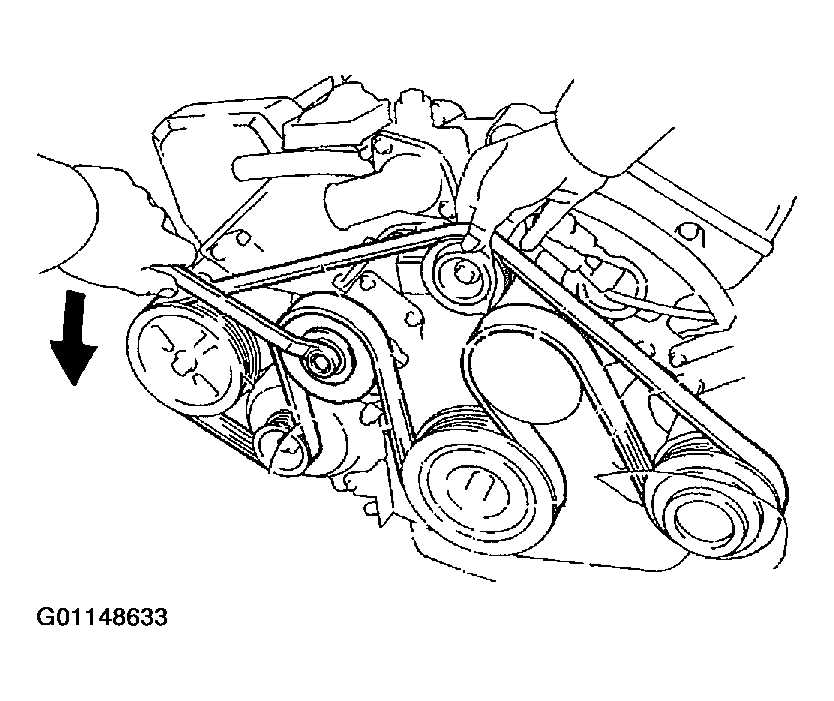

  Fig 3: Loosening Drive Belt Tension
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install air cleaner assembly with air cleaner hose.
1. Install the air cleaner assembly with air cleaner hose with the 3 bolts.
2. Install the clamp.
3. Connect the connectors.
4. Install the air cleaner inlet with the 2 bolts.
Install engine under cover.
1. Install the engine under cover with the bolts and screws.
Bleed power steering fluid. See BLEEDING .
