Lexus ES300

Access floor shift control assembly, see SHIFT INTERLOCK CABLE  under REMOVAL & INSTALLATION. Using a screwdriver, unlock the claw of the automatic adjuster. See Fig 1. Place the gearshift lever into Park and turn the ignition to the OFF position. Push the lock key down to complete the adjustment. See Fig 2. Install console and related trim.

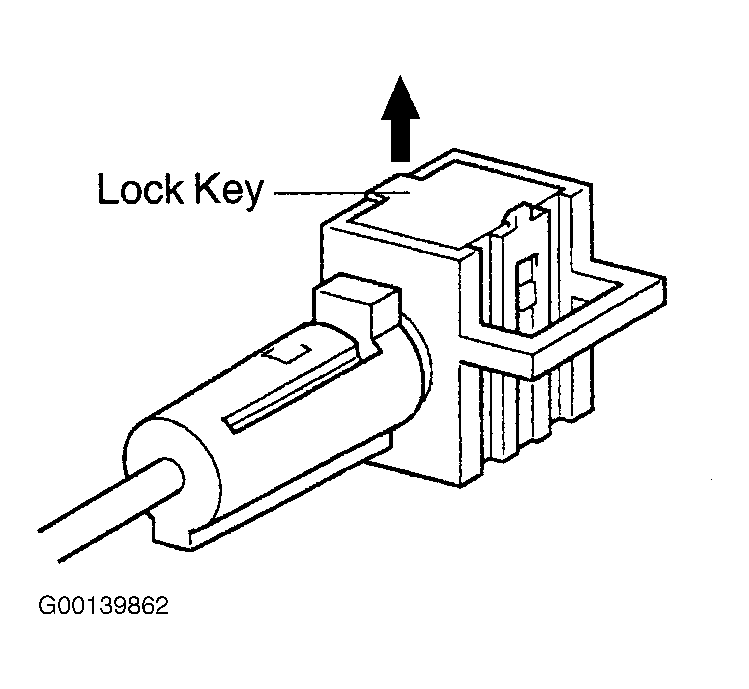

Fig 1: Unlocking Automatic Cable Adjuster Claw (Lexus)
G00139862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

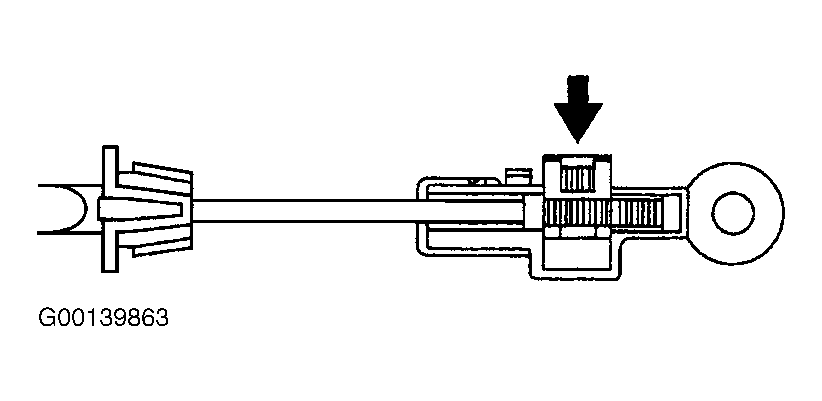

Fig 2: Locking Shift Interlock Cable Adjuster (Lexus)
G00139863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
