Toyota Camry

Access floor shift control assembly, see SHIFT INTERLOCK CABLE  under REMOVAL & INSTALLATION. Using a screwdriver, unlock the claw of the automatic adjuster. See Fig 1. Ensure gearshift lever is in Park position and ignition is in the Lock position. Push down on the locking claw. See Fig 2.

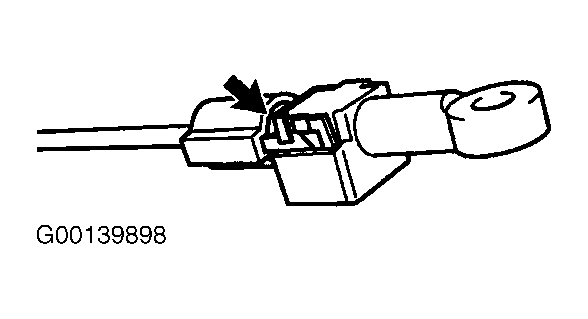

Fig 1: Unlocking Automatic Cable Adjuster Claw (Toyota Camry)
G00139898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

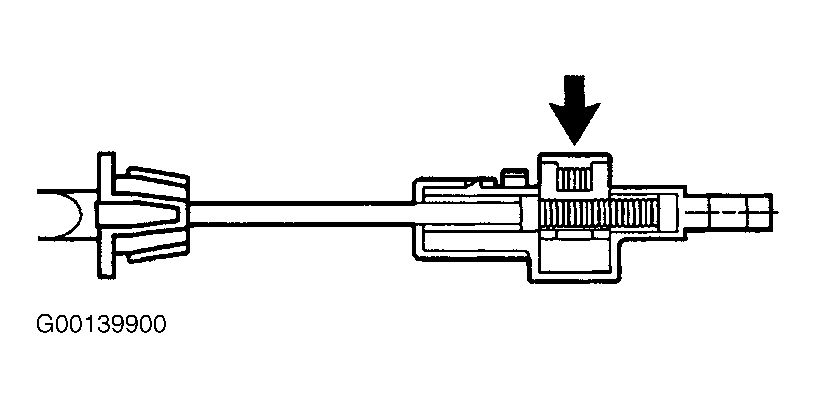

Fig 2: Locking Shift Interlock Cable Adjuster (Toyota Camry)
G00139900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
