Lexus & Toyota

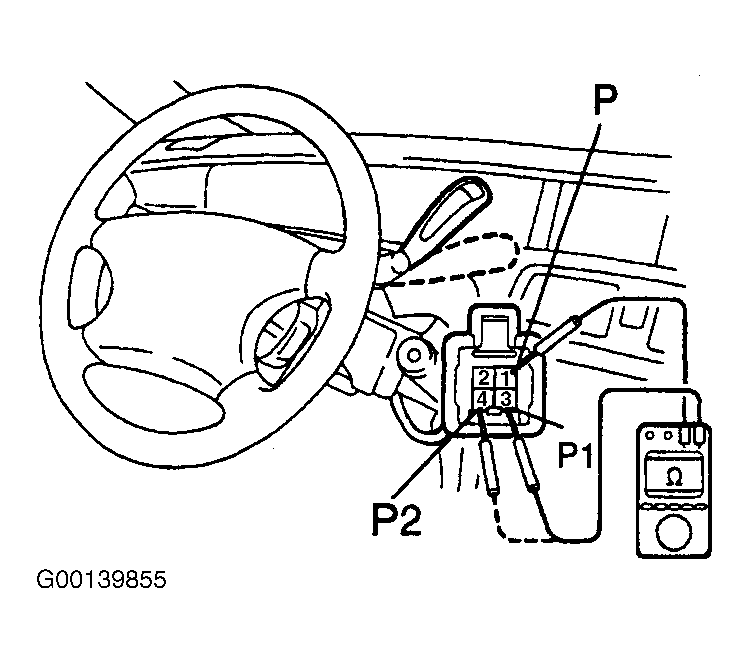

Disconnect the shift interlock switch. See COMPONENT LOCATIONS . Using a DVOM, check for continuity between specified terminals. See Fig 1-Fig 7. If continuity is not as specified, replace the switch.

Fig 1: Checking For Continuity At Shift Interlock Switch (Lexus IS300)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

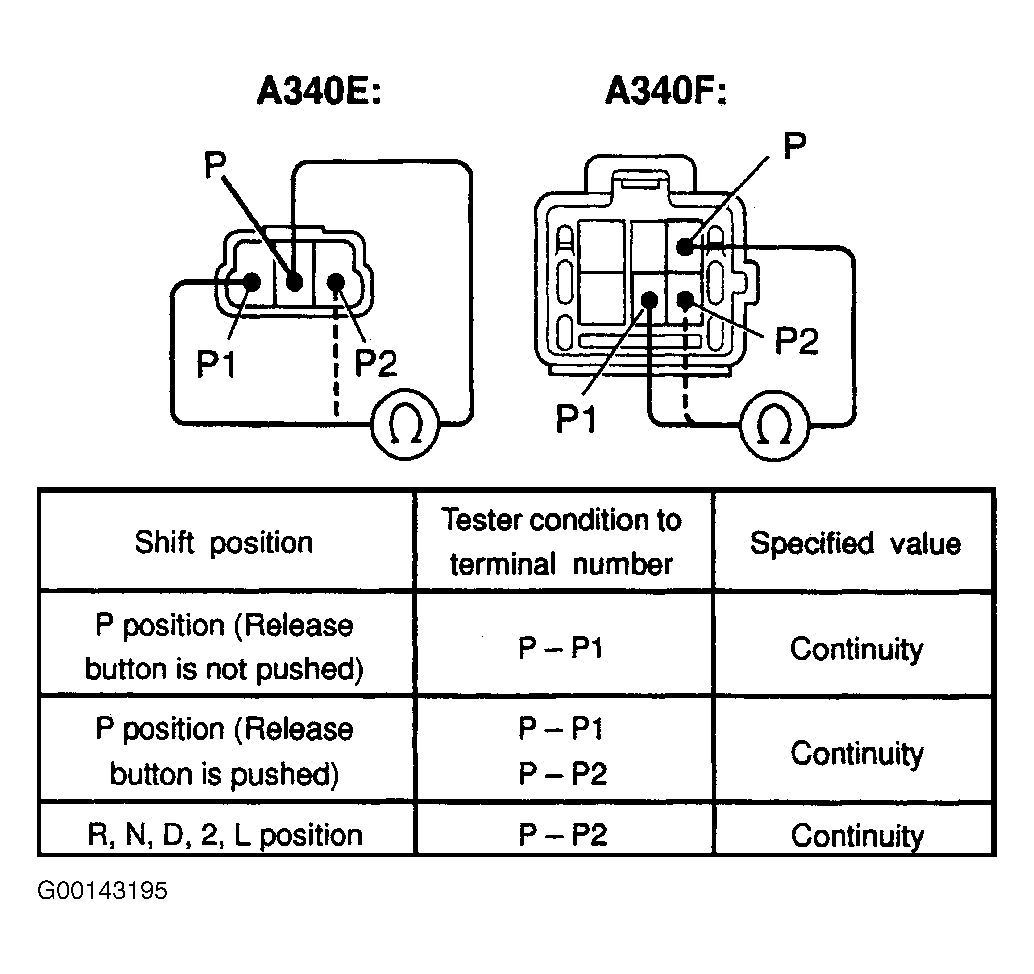

Fig 2: Checking For Continuity At Shift Interlock Control Switch (Lexus LX470 & Toyota Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

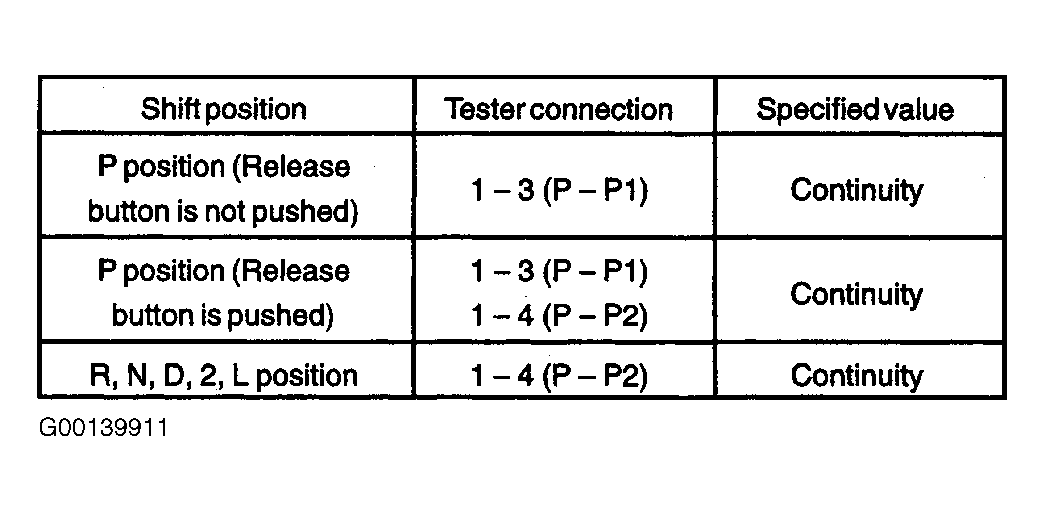

Fig 3: Checking For Continuity At Shift Interlock Control Switch (Toyota Avalon)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

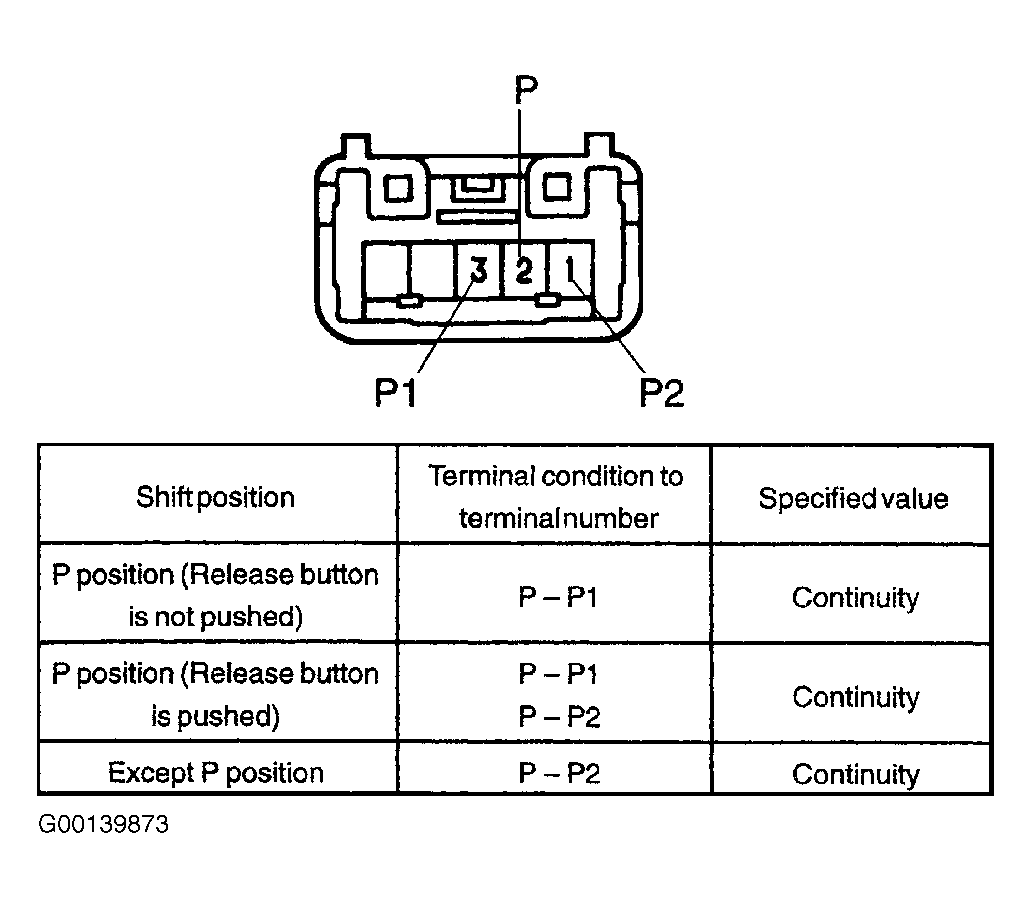

Fig 4: Checking For Continuity At Shift Interlock Control Switch (Toyota Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

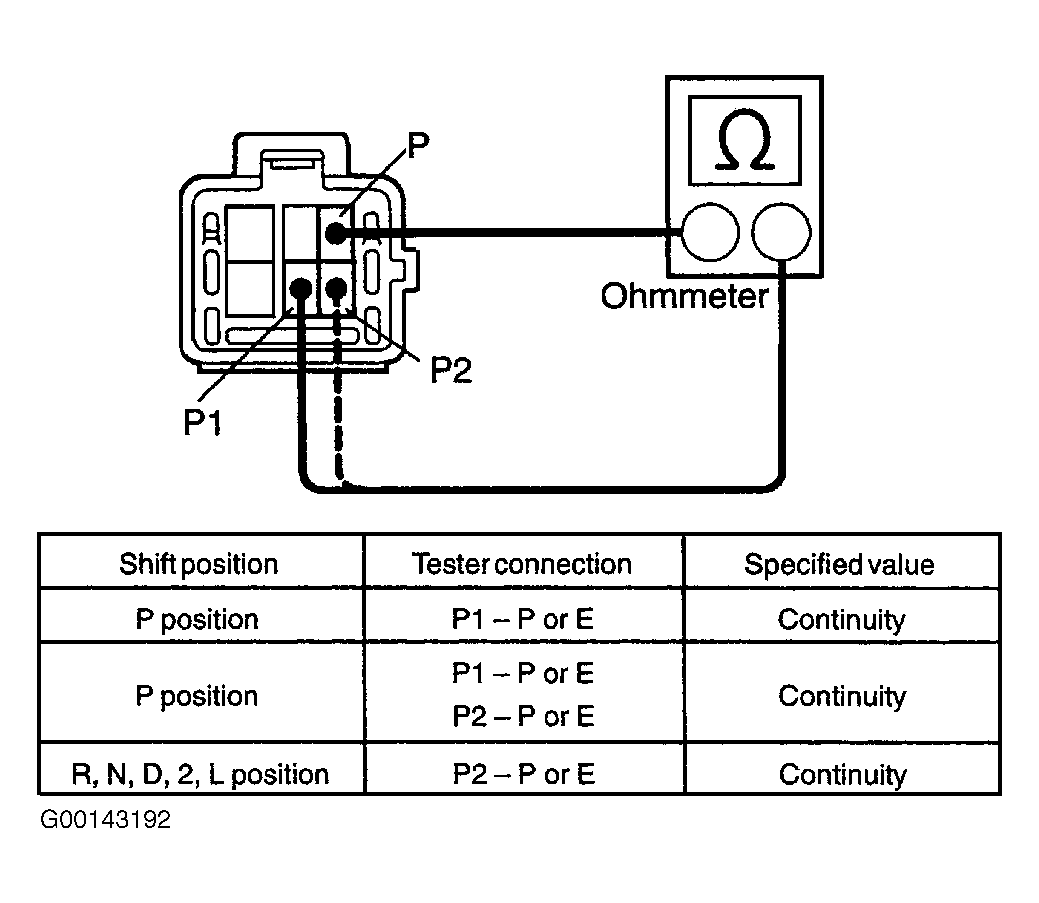

Fig 5: Checking For Continuity At Shift Interlock Control Switch (Toyota Camry Solara)

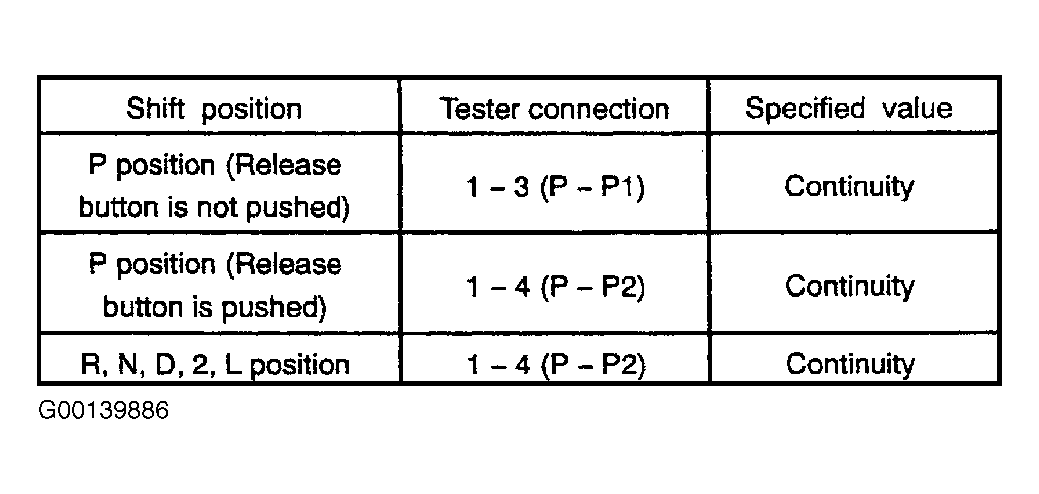

Fig 6: Checking For Continuity At Shift Interlock Control Switch (Toyota Tacoma)

Fig 7: Checking For Continuity At Shift Interlock Control Switch (Toyota 4Runner)
