Control Module HVAC: Testing and Inspection

AIR CONDITIONING AMPLIFIER (for Rear A/C)

INSPECTION

1. REMOVE REAR DOOR SCUFF PLATE RH
2. REMOVE REAR FLOOR MAT SUPPORT PLATE
3. REMOVE QUARTER TRIM PANEL RH

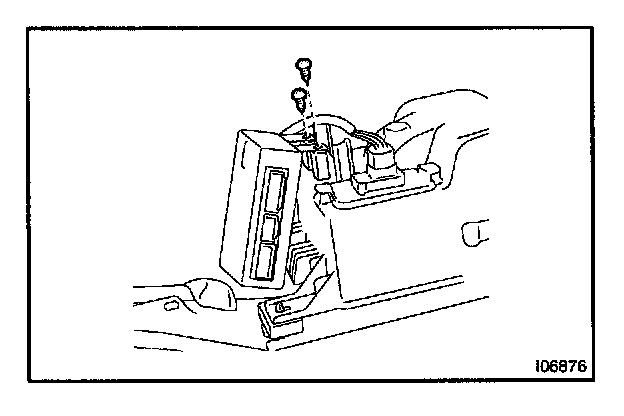

4. REMOVE A/C AMPLIFIER
a. Disconnect the connectors.
b. Remove the 2 screws and A/C amplifier.

5. INSPECT REAR A/C AMPLIFIER CIRCUIT
