Scan Tool Testing and Procedures

ENGINE OPERATING CONDITION

NOTE: The values given for "Normal Condition" are representative values, so a vehicle may still be normal even if its value varies differ from those listed here. So do not decide whether a part is faulty or not solely according to the "Normal Condition" here.

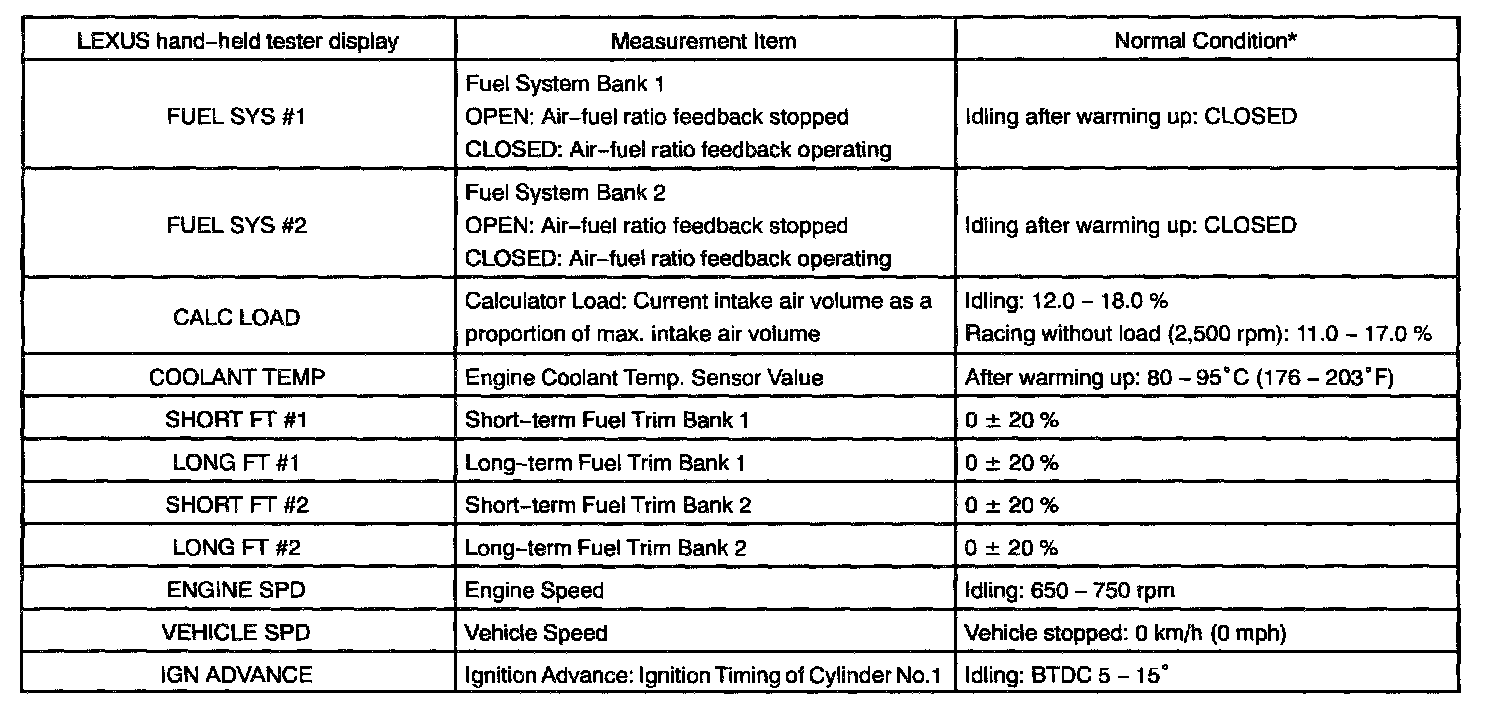

CARB Mandated Signals Part 1:

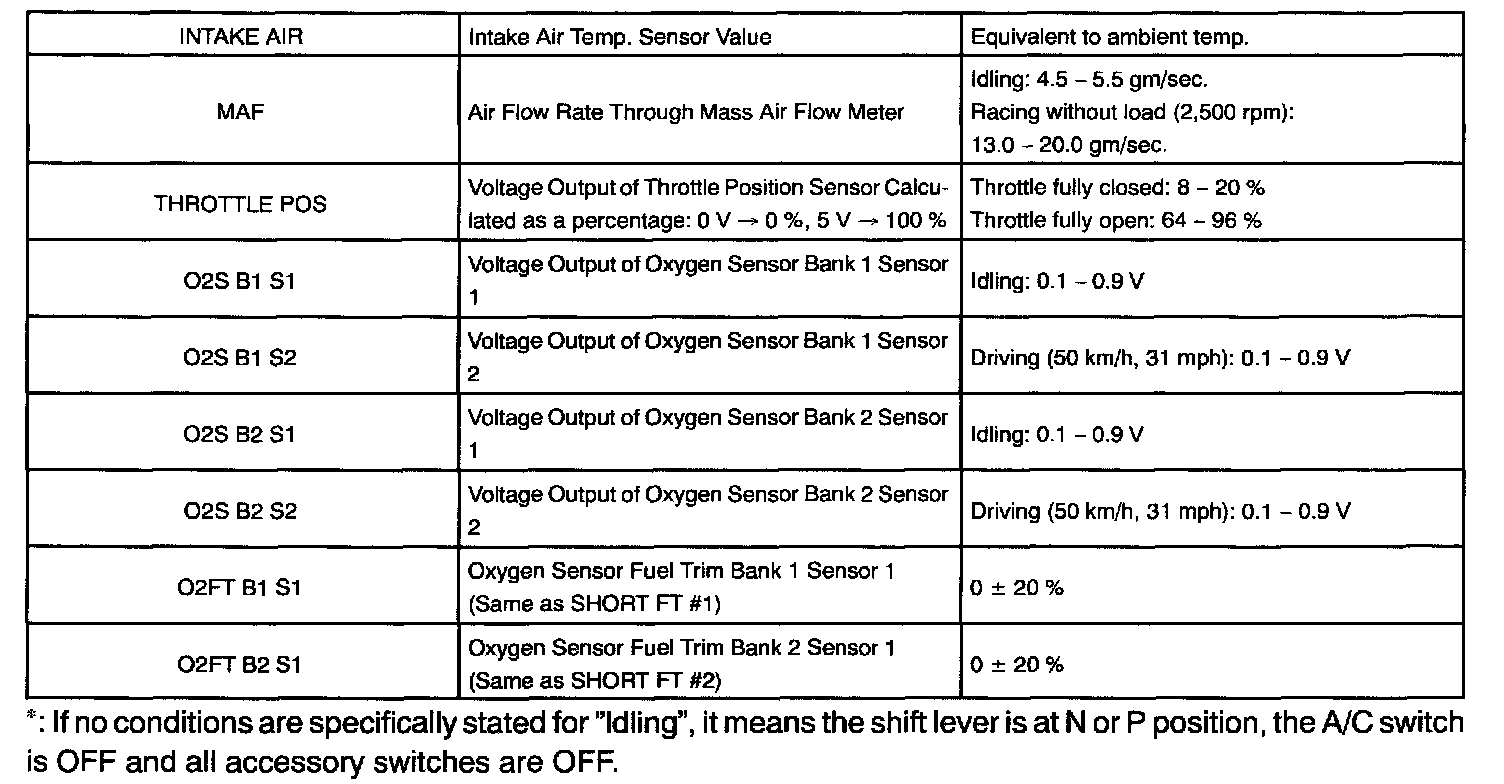

CARB Mandated Signals Part 2:

a. CARB mandated signals.

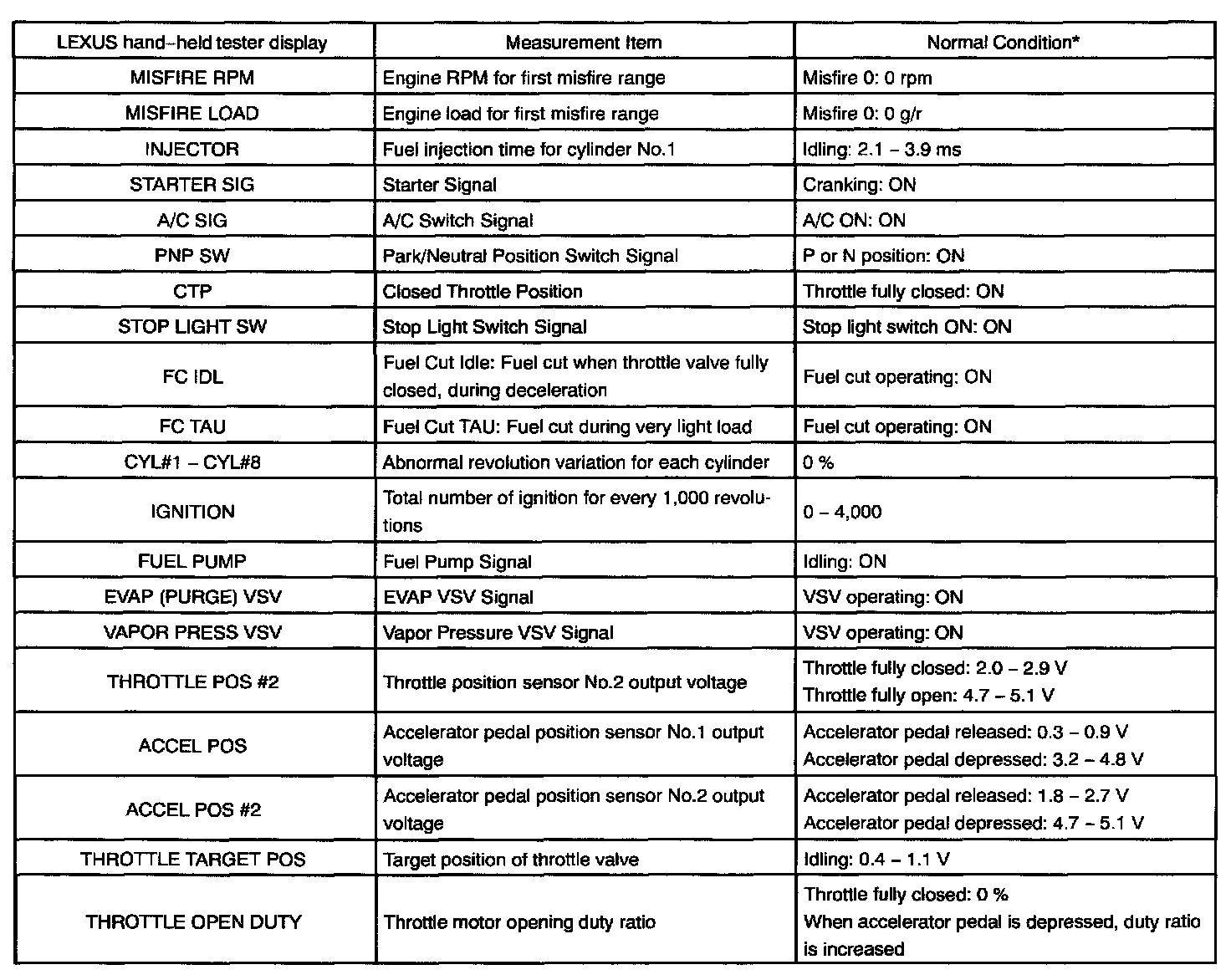

LEXUS Enhanced Signals Part 1:

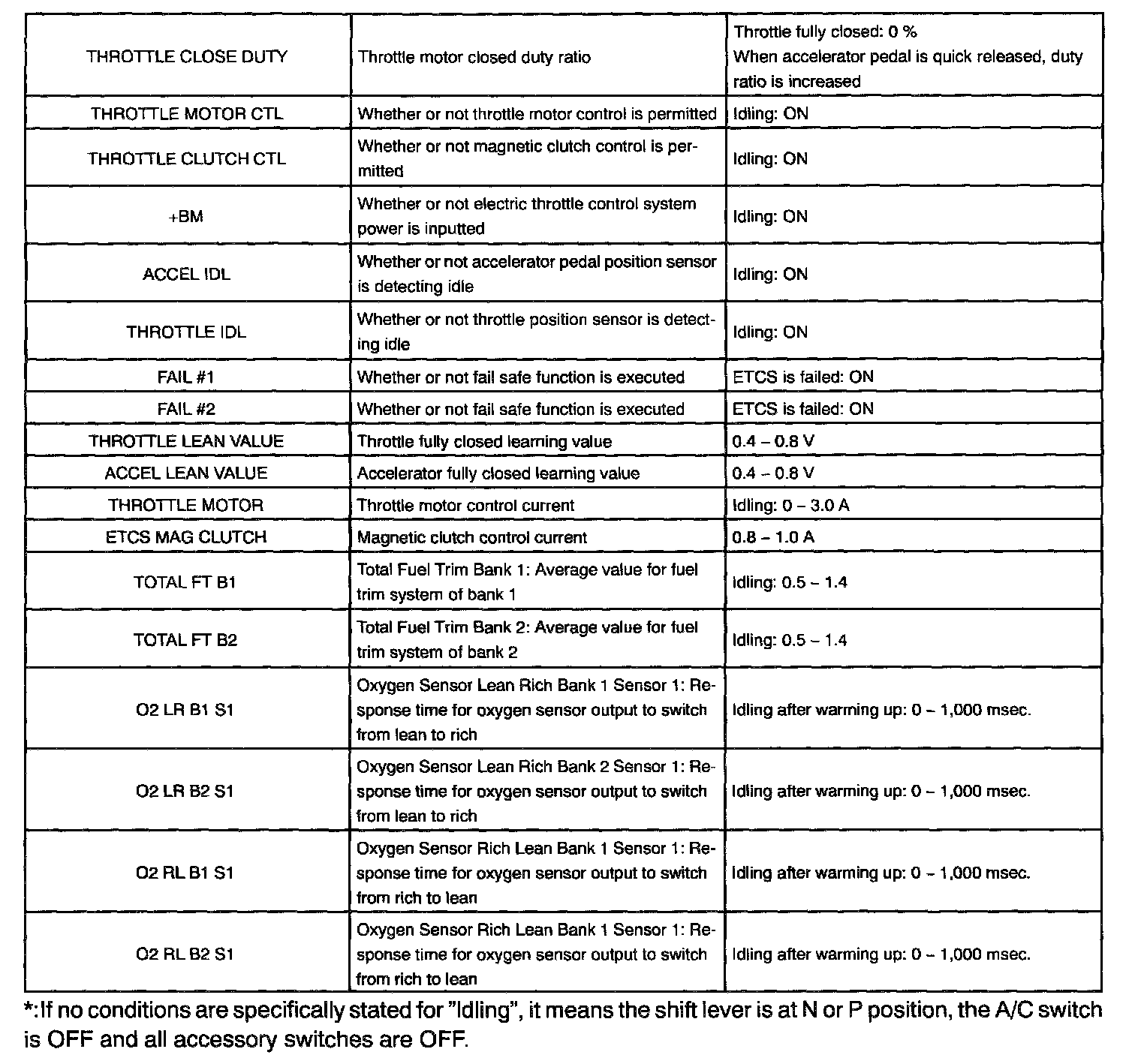

LEXUS Enhanced Signals Part 2:

b. LEXUS Enhanced Signals.
