Component Locations

For component locations, see Fig 1.

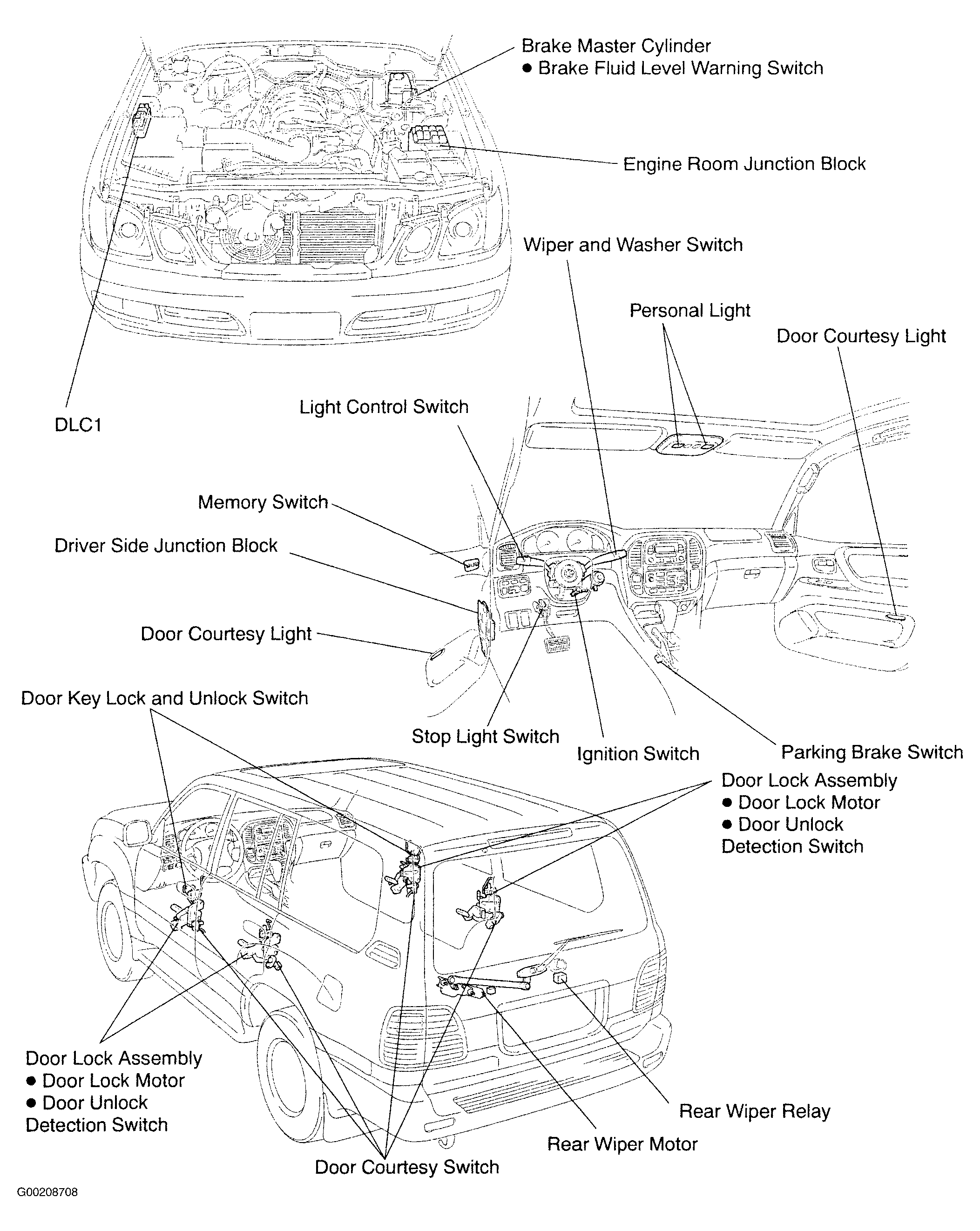

Fig 1: Identifying Body Control System Component Locations
G00208708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
