Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2 - Fig 4 .

Fig 1: Wiring Diagram Steering Angle Sensor Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

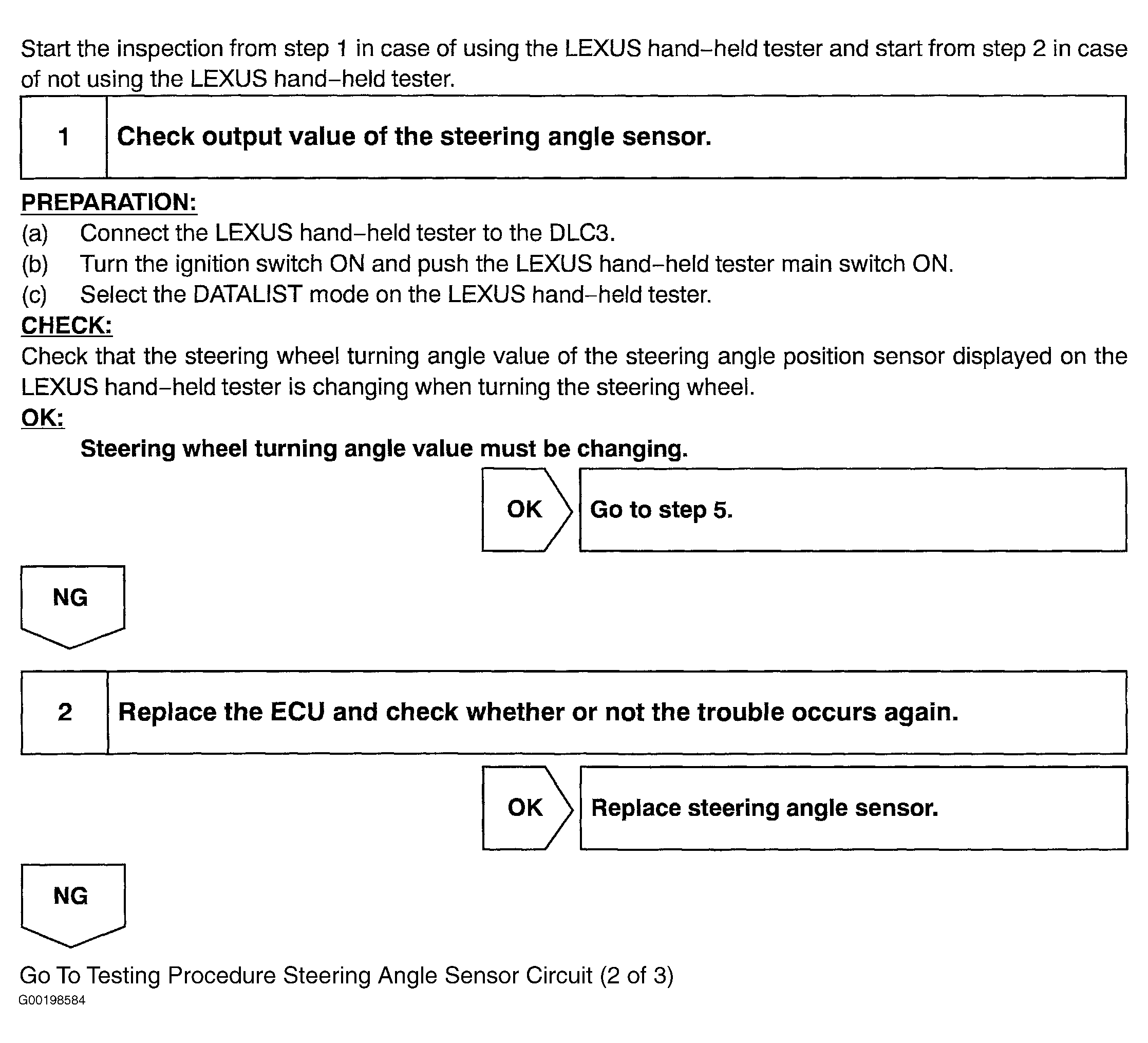

Fig 2: Testing Procedure Steering Angle Sensor Circuit (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Testing Procedure Steering Angle Sensor Circuit (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Testing Procedure Steering Angle Sensor Circuit (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
