Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2.

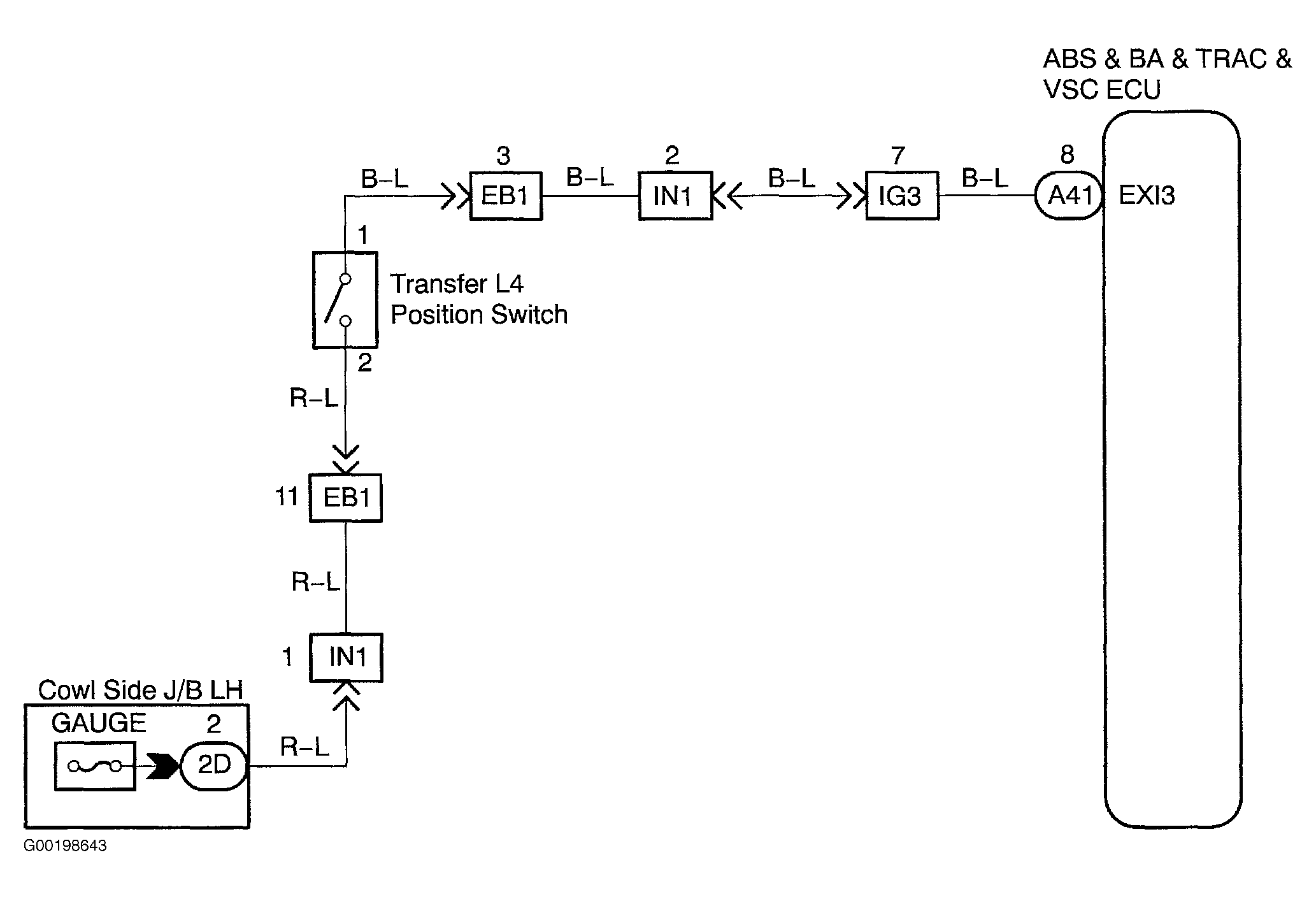

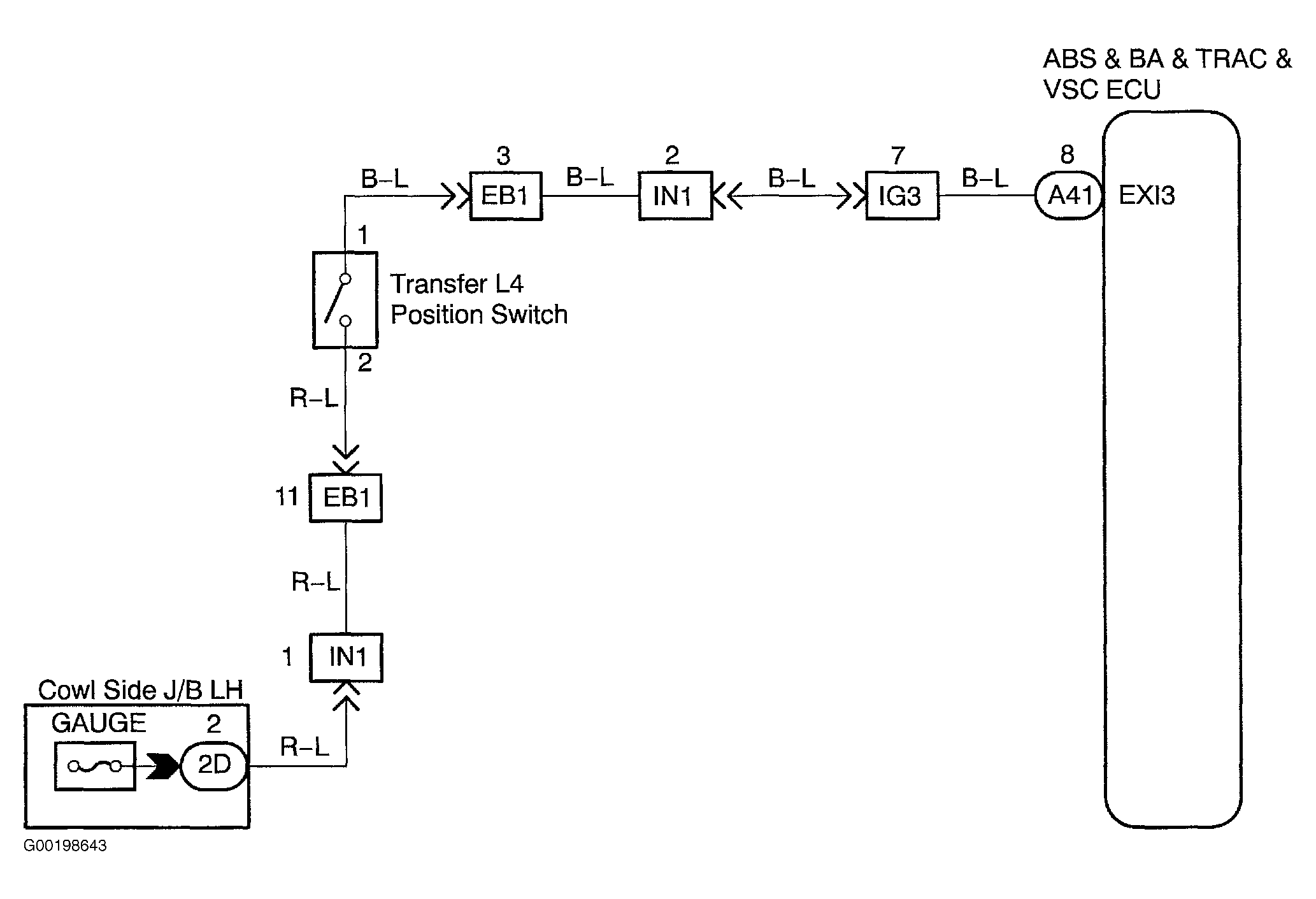

Fig 1: Wiring Diagram Transfer L4 Position Switch Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

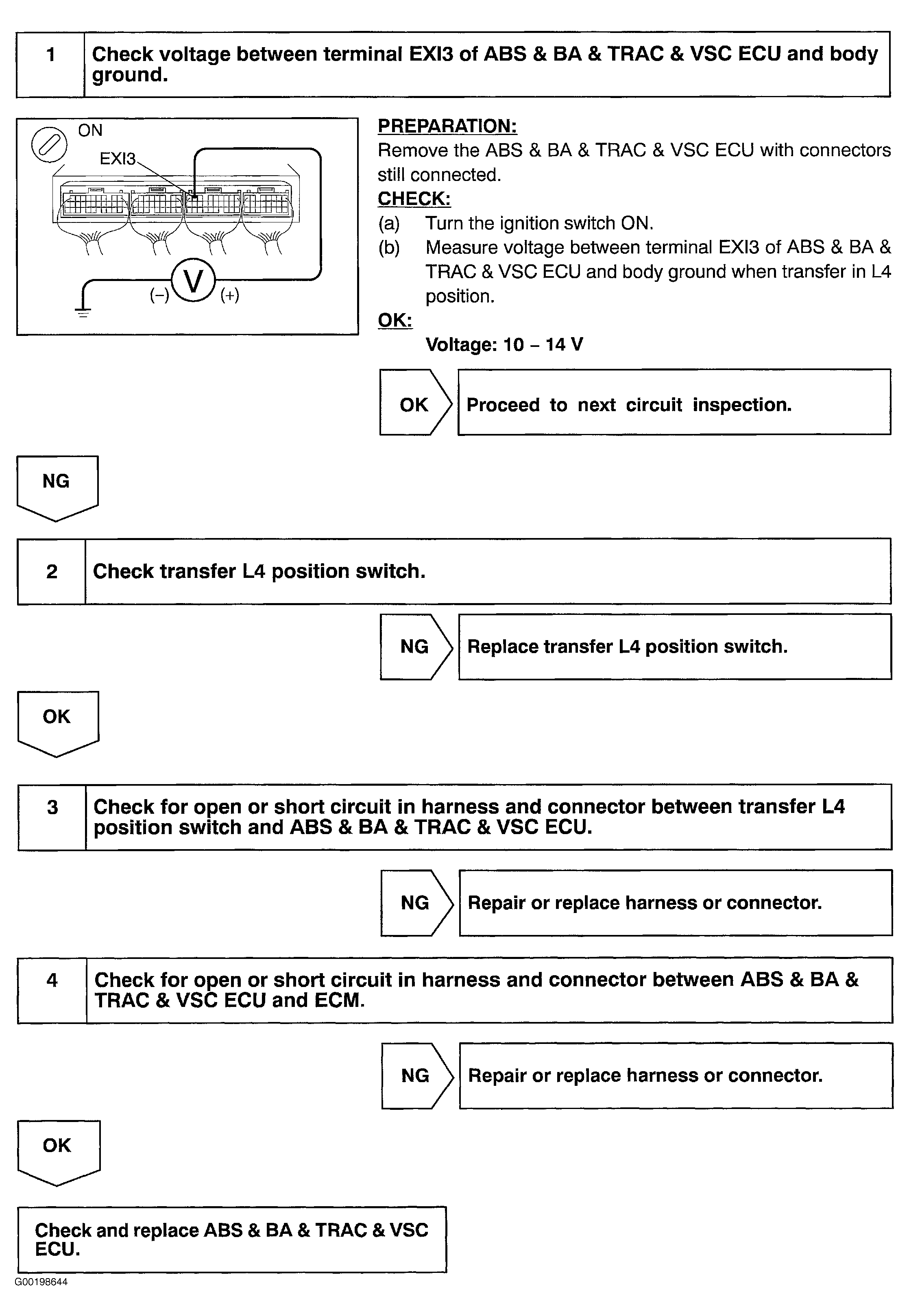

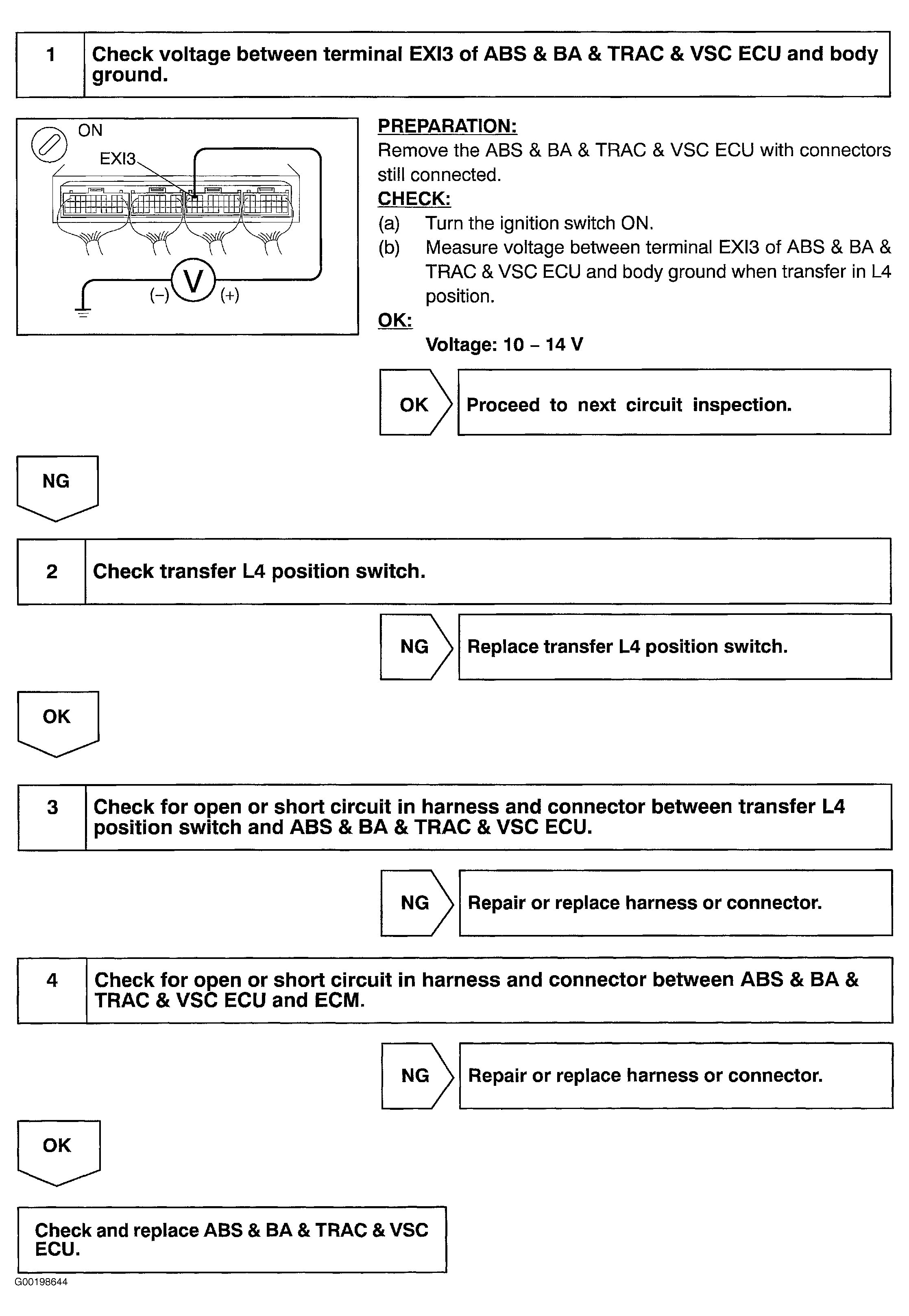

Fig 2: Testing Procedure Transfer L4 Position Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
