Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

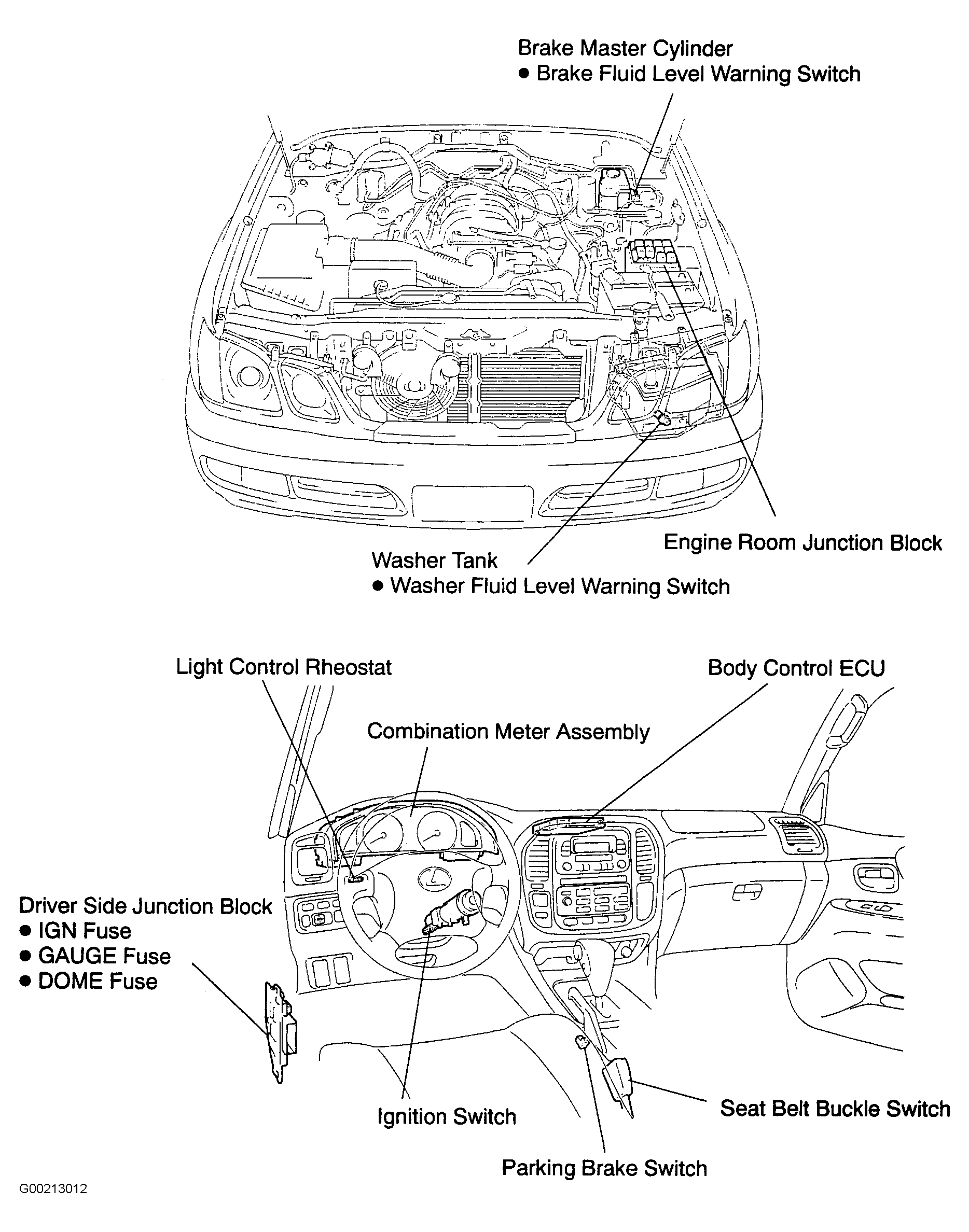

| Body Control ECU (Instrument ECU) | Fig 1 |
| Brake Fluid Level Warning Switch | Fig 1 |
| Center ECU | Fig 2 |
| Combination Meter Assembly | Fig 1 |
| DOME Fuse (Driver Side J/B) | Fig 1 |

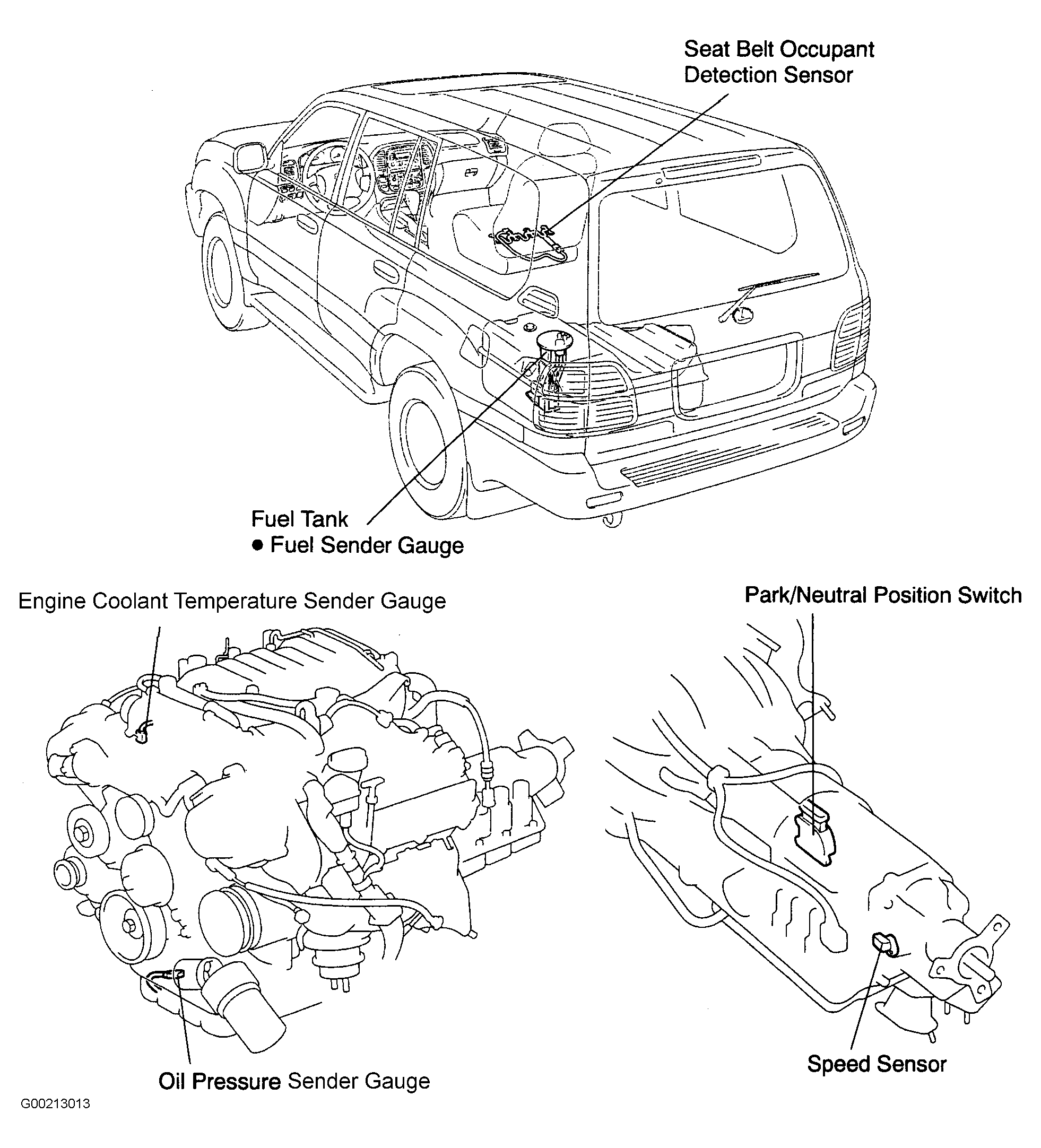

| Engine Coolant Temperature Sender Gauge | Fig 3 |
| Engine Room Junction Block | Fig 1 |
| Fuel Sender Gauge | Fig 3 |
| GAUGE Fuse (Driver Side J/B) | Fig 1 |
| IGN Fuse (Driver Side J/B) | Fig 1 |
| Ignition Switch | Fig 1 |
| Light Control Rheostat | Fig 1 |
| Oil Pressure Sender Gauge | Fig 3 |
| Park/Neutral Position Switch | Fig 3 |
| Parking Brake Switch | Fig 1 |
| Seat Belt Buckle Switch | Fig 1 |
| Seat Belt Occupant Detection Sensor | Fig 3 |
| Speed Sensor | Fig 3 |
| Washer Fluid Level Warning Switch | Fig 1 |
